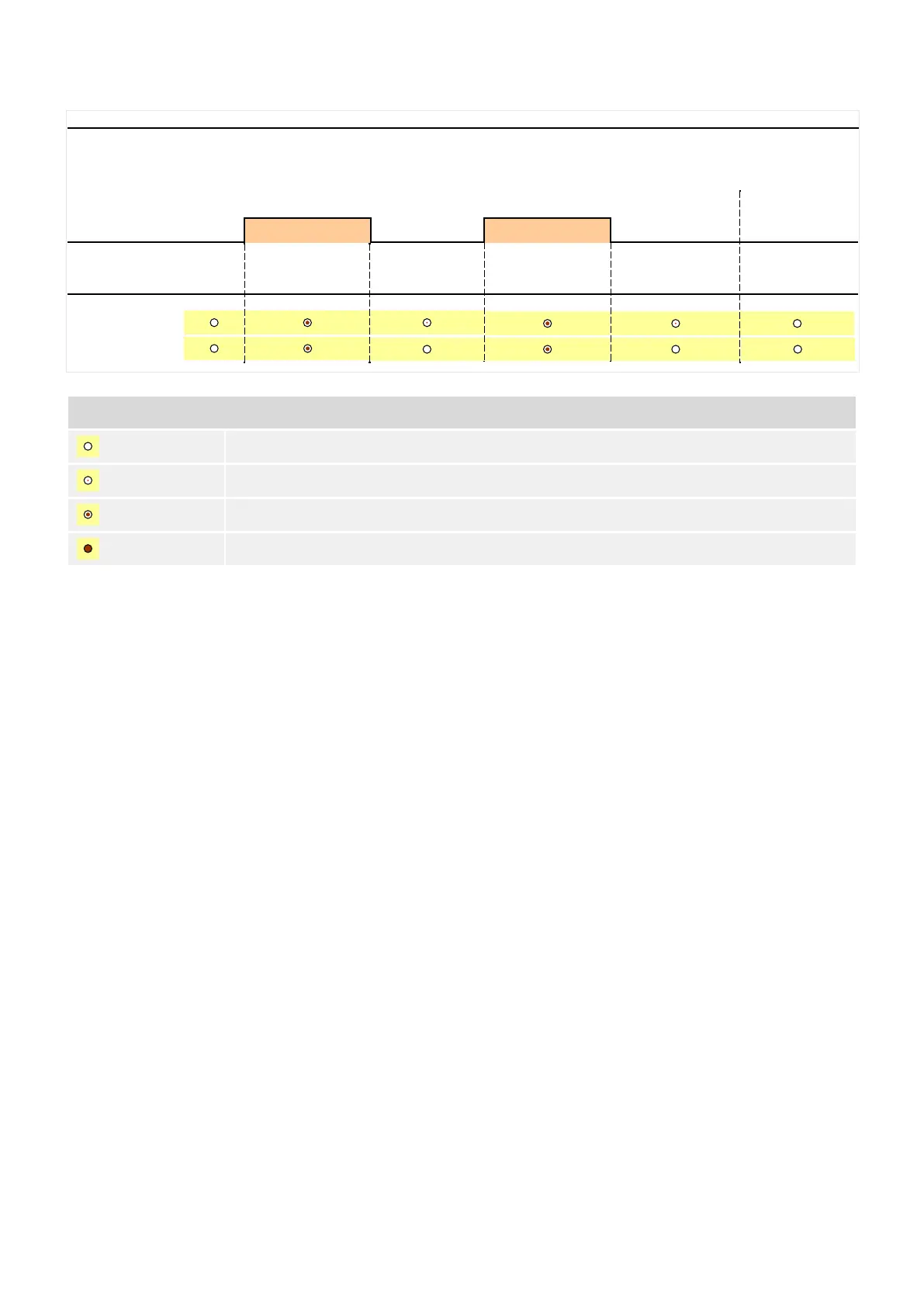

DiggiMEC-LEDs
wiLED_Y03
✴✳
Settings:
DiggiMEC . LED2 assign. = I> . Trip
DiggiMEC . LED2 latching = With latching
I> . Trip
I> . Pickup
Reset
✳ ✴
WIC1-Trip-LED:
✳
DiggiMEC-LED 2:
✳
Symbols
The LED is OFF.
The LED is ashing (i. e. is blinking with an OFF : ON pattern of 10 : 1).
The LED is blinking.
The LED is lit continuously.
(Even though the diagrams are showing the settings for LED 2 this is only an example,
of course. The analogous settings can also be made for LED 3, resulting in the same
signal ow.)
The WIC1 Pickup / Trip LED is shown only for completeness and for comparison: In fact, the
WIC1 Pickup / Trip LED does not support any latching.
99WIC1WIC1-1.0-EN-MAN
3 Hardware
3.8.1.4 Latching of a DiggiMEC-LED with an Assigned Trip Signal
