28
ASSEMBLY AND INSTALLATION
5
Refer to Steps 1 to 4 and attach the ag R on the opposite side in the same manner.
6
3

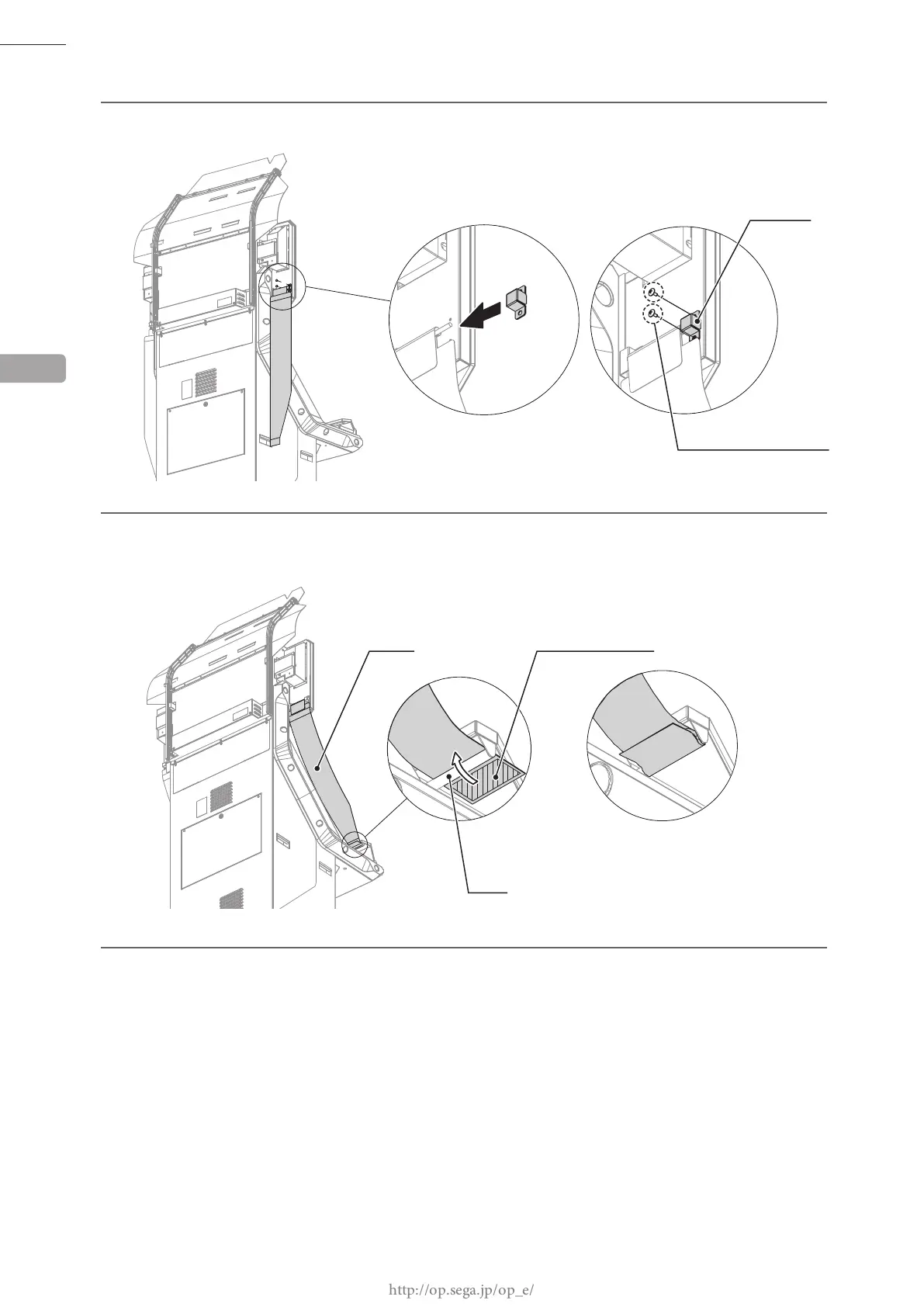

Attach the pole lid using 2 truss screws.
M4 x 8
Slide the pole lid sideways
to attach it.
POLE LID
TRUSS SCREW (2), black
4
Thread the base of ag L under the pole on the control panel and secure it with the hook and loop fastener.
AFTER SECURING WITH HOOK
AND LOOP FASTENER
FLAG L
POLE
Secure with hook and
loop fastener.
