ASSEMBLY AND INSTALLATION
29
6-3 INSTALLING THE CABINET
This product has 4 casters and 4 adjusters.
After determining the installation location, have the adjusters contact the floor directly, and adjust them so the
cabinet will remain in a level position keeping a space of about 5 mm (0.2 in) between the oor and the casters.
6
(Scale: 1/100)

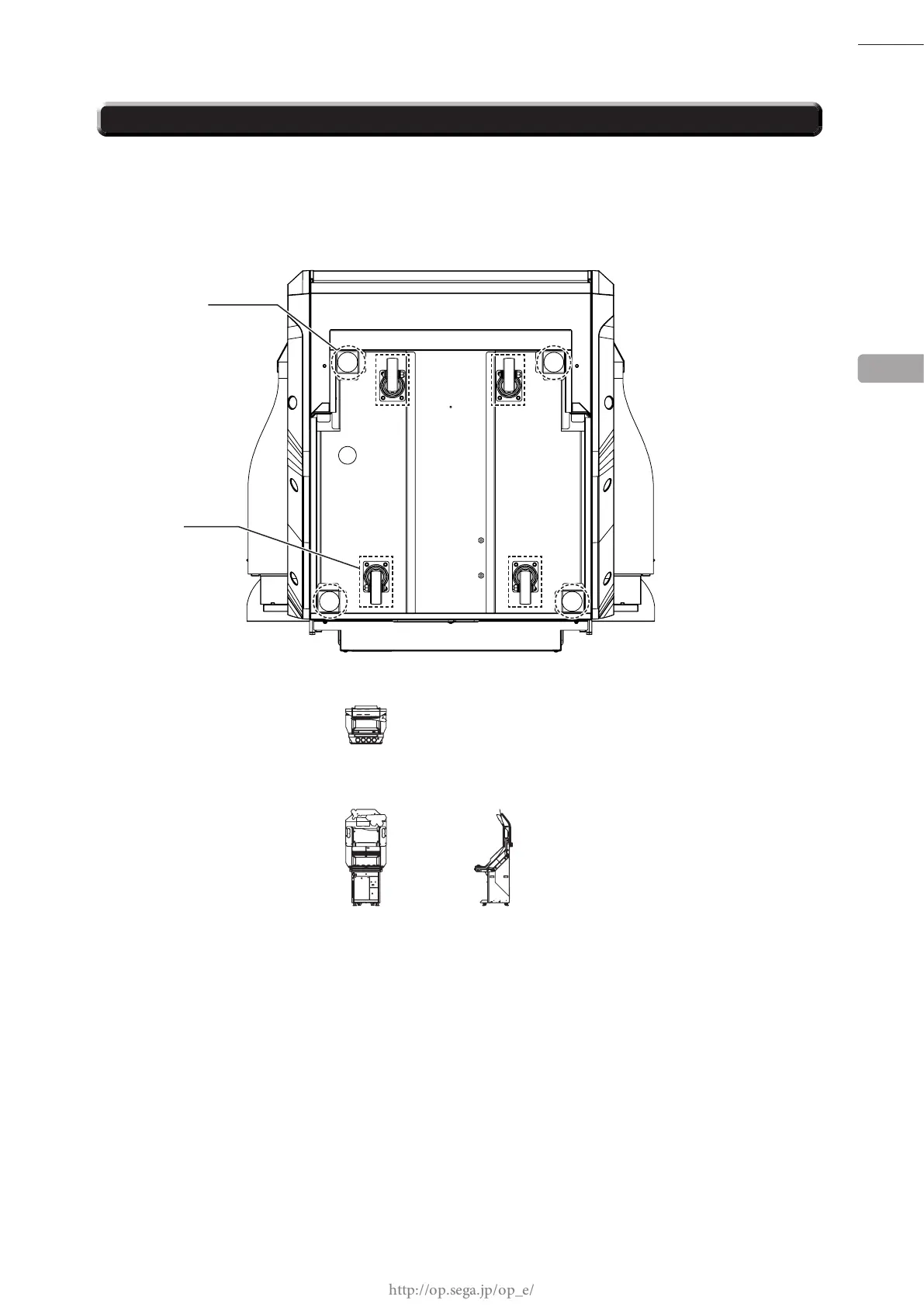

Refer to this gure for the layout
of the place of installation.
ADJUSTER
CASTER
