ASSEMBLY AND INSTALLATION
21

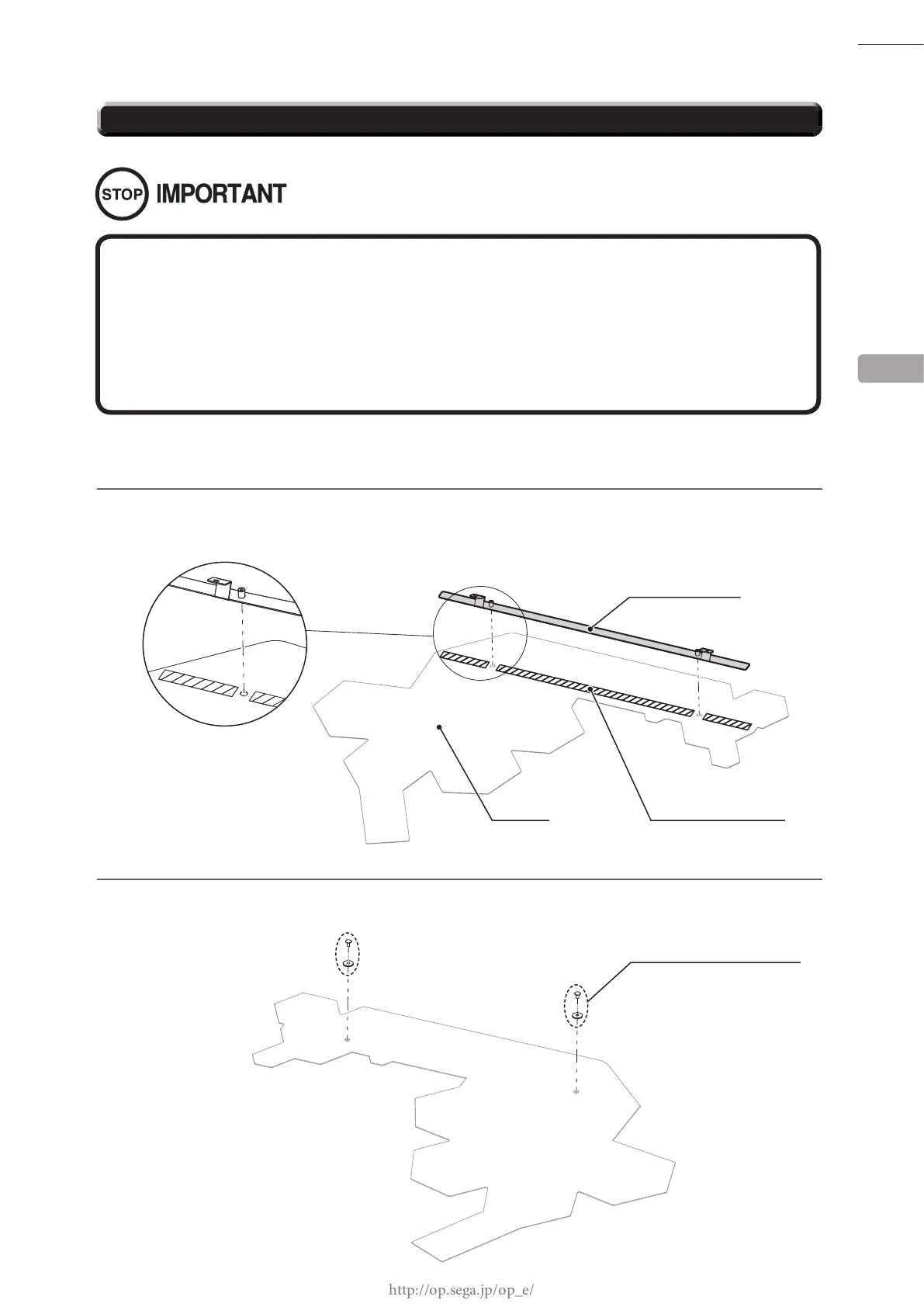

6-1 ASSEMBLING THE POP
● The direction in which the top beam is inserted into the side arm is designated.
Check the direction carefully before assembly.
● The left and right (L & R) parts of the sheet metal for the side arm are different.
When assembling multiple cabinets simultaneously, be careful not to mix the
parts.
● Be sure to handle the back sheet with care. Careless handling can result in creases.
Individual parts of the POP are packaged separately at the time of shipment from the factory. Assemble the POP and
attach it to the upper part of the cabinet.
1
Peel off the separate paper from the double-sided tape on the reverse of the emblem, and attach the
emblem to the emblem holder, making sure that the holes are aligned.
2
Turn the emblem upside down and use the supplied 2 tamperproof screws to affix the emblem to the
emblem holder.
6
EMBLEM
HOLE POSITION
EMBLEM HOLDER
DOUBLE-SIDED TAPE
M4 x 8, large at washer used
TAMPERPROOF SCREW (2)
To Next Page
