Sega Project DIVA Arcade Future Tone - Page 31

22
ASSEMBLY AND INSTALLATION
6
3

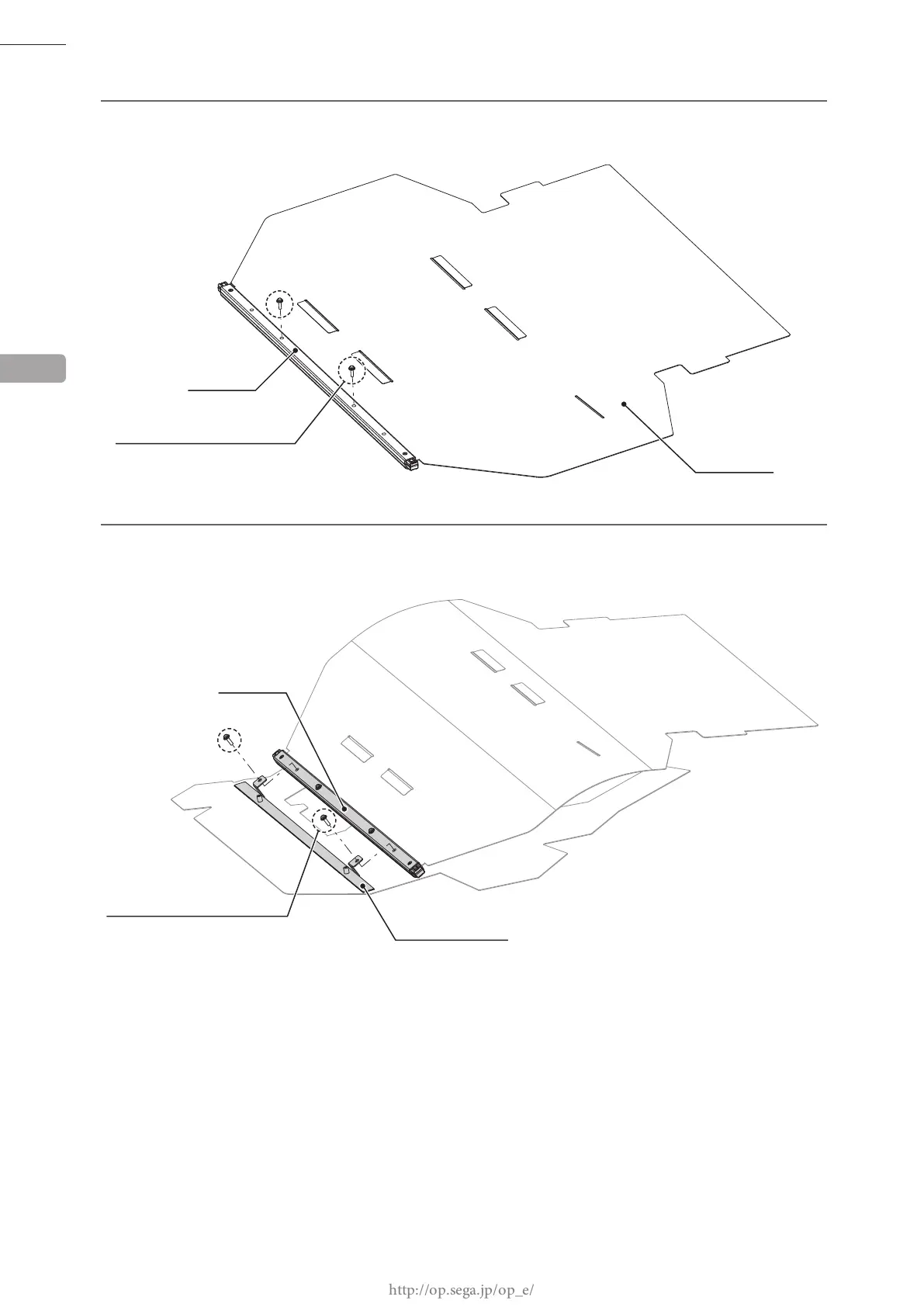

Remove 2 screws from the top beam holding the back sheet.
4
Attach the top beam to the emblem holder using 2 screws removed in Step 3.
BACK SHEET
EMBLEM HOLDER
TOP BEAM
SCREW (2), black
M4 x 16, w/at & spring washers
TOP BEAM
SCREW (2), black
M4 x 16, w/at & spring washers
