ASSEMBLY AND INSTALLATION
23
5

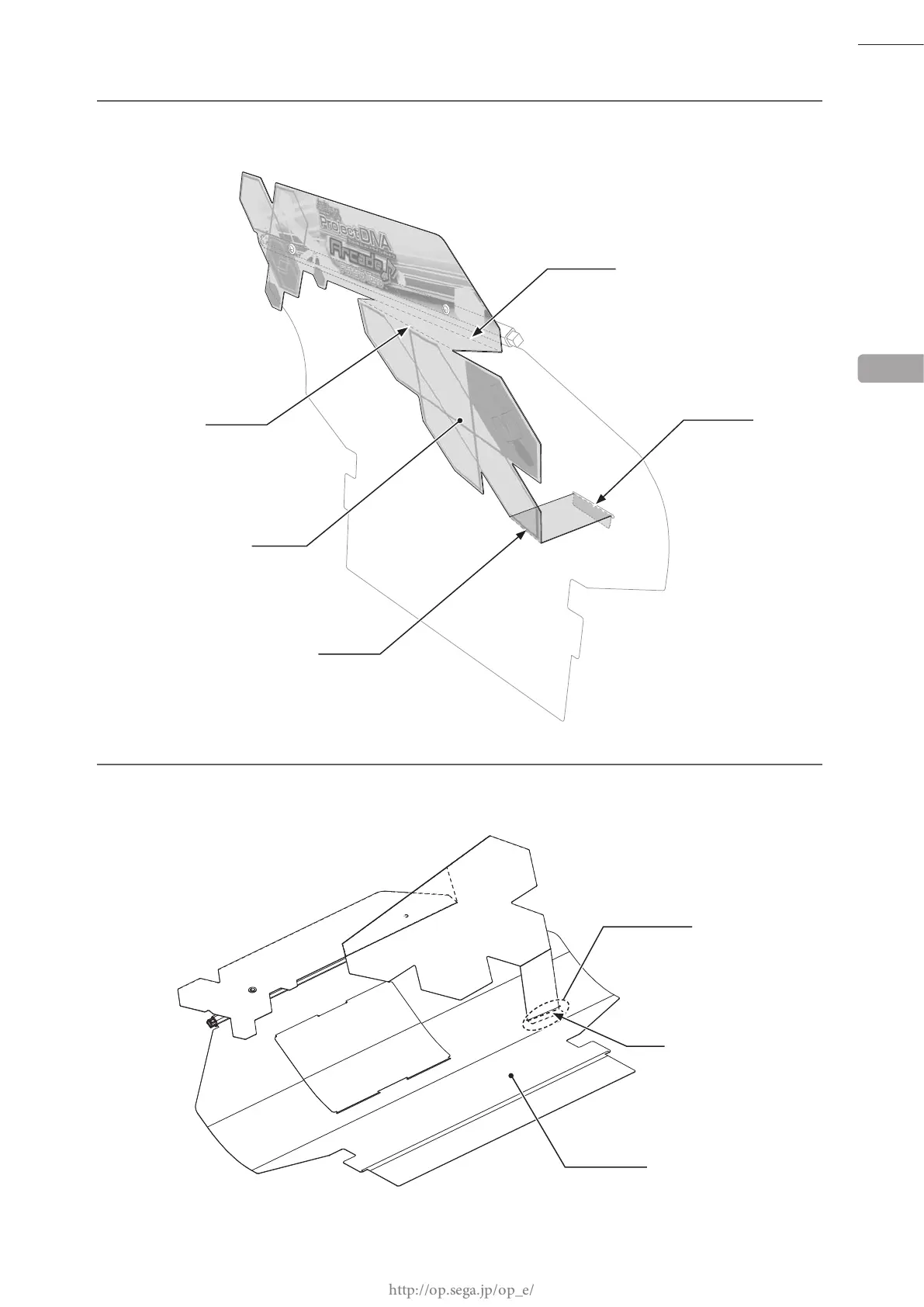

Crease the emblem. When doing this, fold it so that the creases are at right angles.
6
Insert the tip of emblem into the slot in back sheet, peel off the separate paper from the double-sided tape
on the tip of emblem and afx it to the reverse side of back sheet.
6
(1) Concave
(4) Concave
(2) Convex
EMBLEM
(3) Convex
BACK SHEET
Tip of EMBLEM
SLOT
