24
ASSEMBLY AND INSTALLATION
8

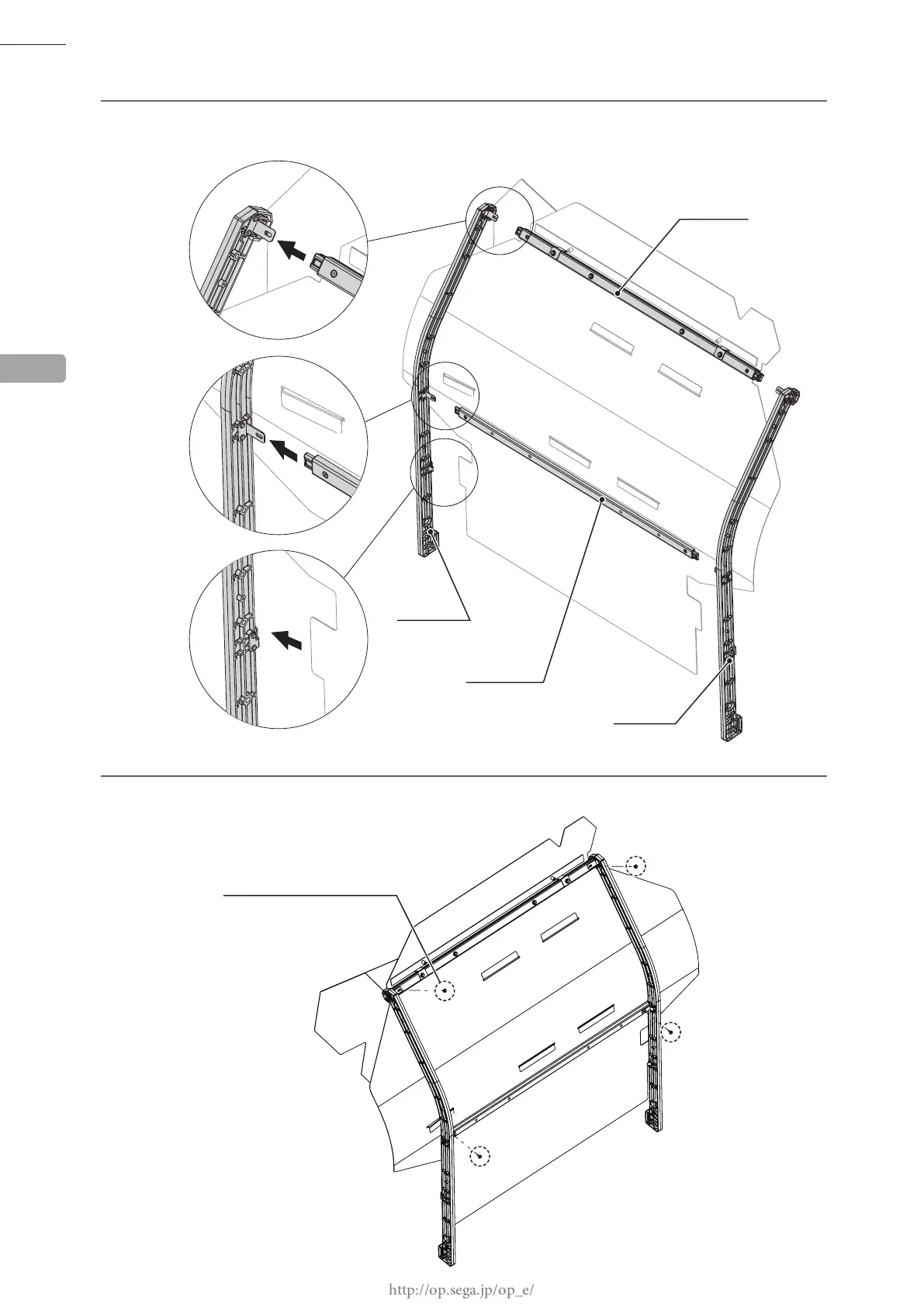

Secure the attached side arms using 4 screws.
6
7
Attach the side arms to the top beam and top beam B found on the reverse side of back sheet.
SIDE ARM
TOP BEAM
SIDE ARM
TOP BEAM B
M3 x 6, w/at & spring washers
SCREW (4), black
http://op.sega.jp/op_e/
