ASSEMBLY AND INSTALLATION
25
9

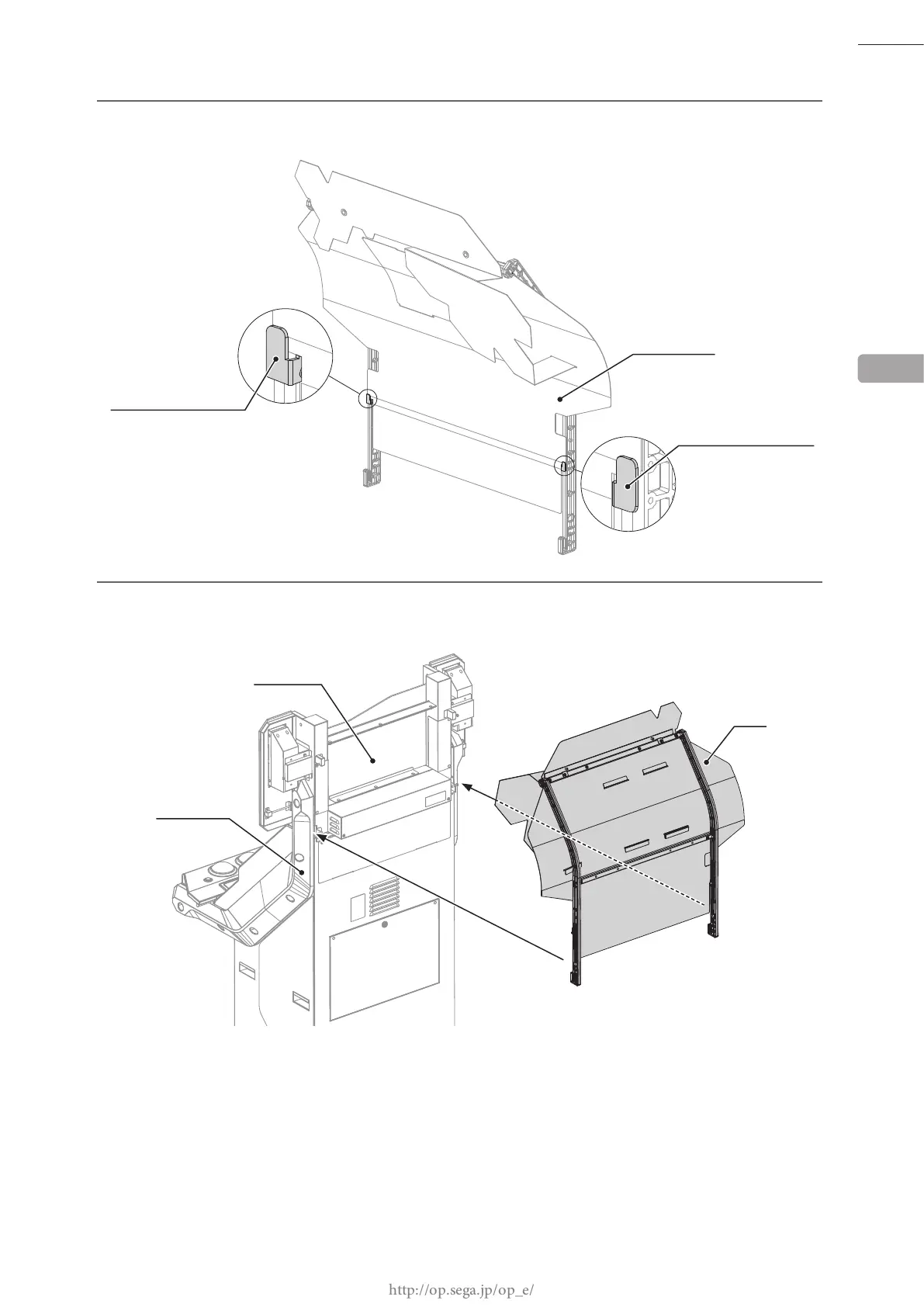

Insert the back sheet into the back sheet holders and align it with the side arms.
10
Attach the assembled POP from the rear side of the cabinet. Attach it so that it is inserted between the side
blade and the billboard.
6
BACK SHEET
BACK SHEET HOLDER
BACK SHEET HOLDER
BILLBOARD
POP
SIDE BLADE
