Set the DIP switch number 1 to OFF on each Nu except for that of the server machine.

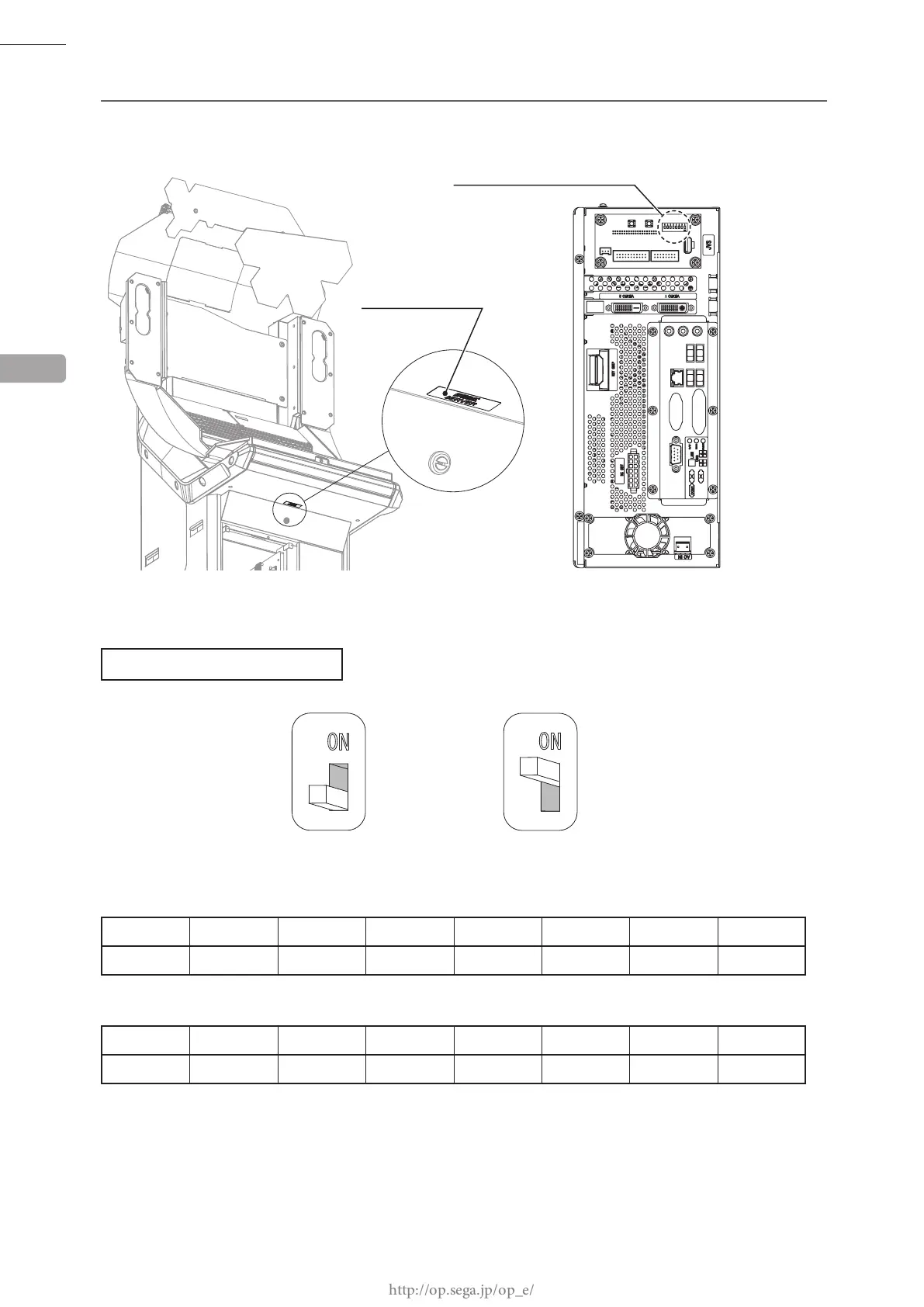

SERVER MACHINE DIP SWITCH CONFIGURATION
"SERVER" STICKER
DIP SWITCH CONFIGURATION
DIP SWITCH SETTING
No.1 is OFF No.1 is ON
DIP SWITCH CONFIGURATION (SERVER MACHINE)
No.1 No.2 No.3 No.4 No.5 No.6 No.7 No.8
ON OFF OFF OFF OFF OFF ON OFF
DIP SWITCH CONFIGURATION (ALL CABINETS EXCEPT SERVER MACHINE)
No.1 No.2 No.3 No.4 No.5 No.6 No.7 No.8
OFF OFF OFF OFF OFF OFF ON OFF
