ASSEMBLY AND INSTALLATION
37
6

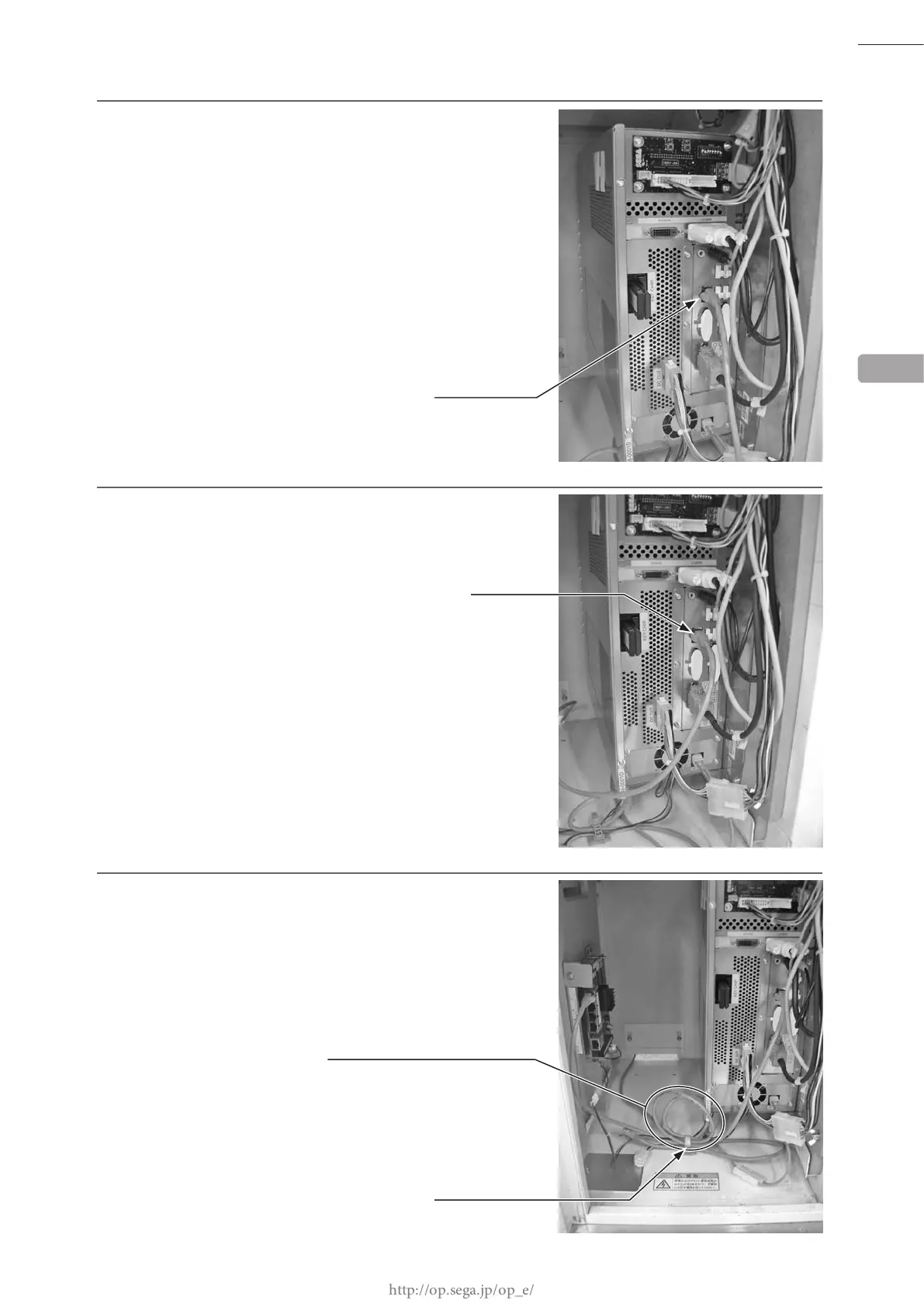

Disconnect the 1 connector of the LAN cable connected to
the Nu's LAN port.
7
Thread one end of the LAN cable [50 m (164 ft)] connected
in Step 2 through the square hole on the back of the cabinet,
and connect it to the Nu's LAN port.
LAN PORT
8
Use 1 cord clamp to secure the LAN cable. To prevent
disconnection, make a 15 cm (5.9 in) (approx.) diameter ring
with the LAN cable before afxing it. Also, bundle the LAN
cable disconnected in Step 6 and secure it with the cord
clamp.
6
15 cm (5.9 in) (approx.) diameter ring
CORD CLAMP (1)
CONNECTOR (1)
LAN
