34
ASSEMBLY AND INSTALLATION
5

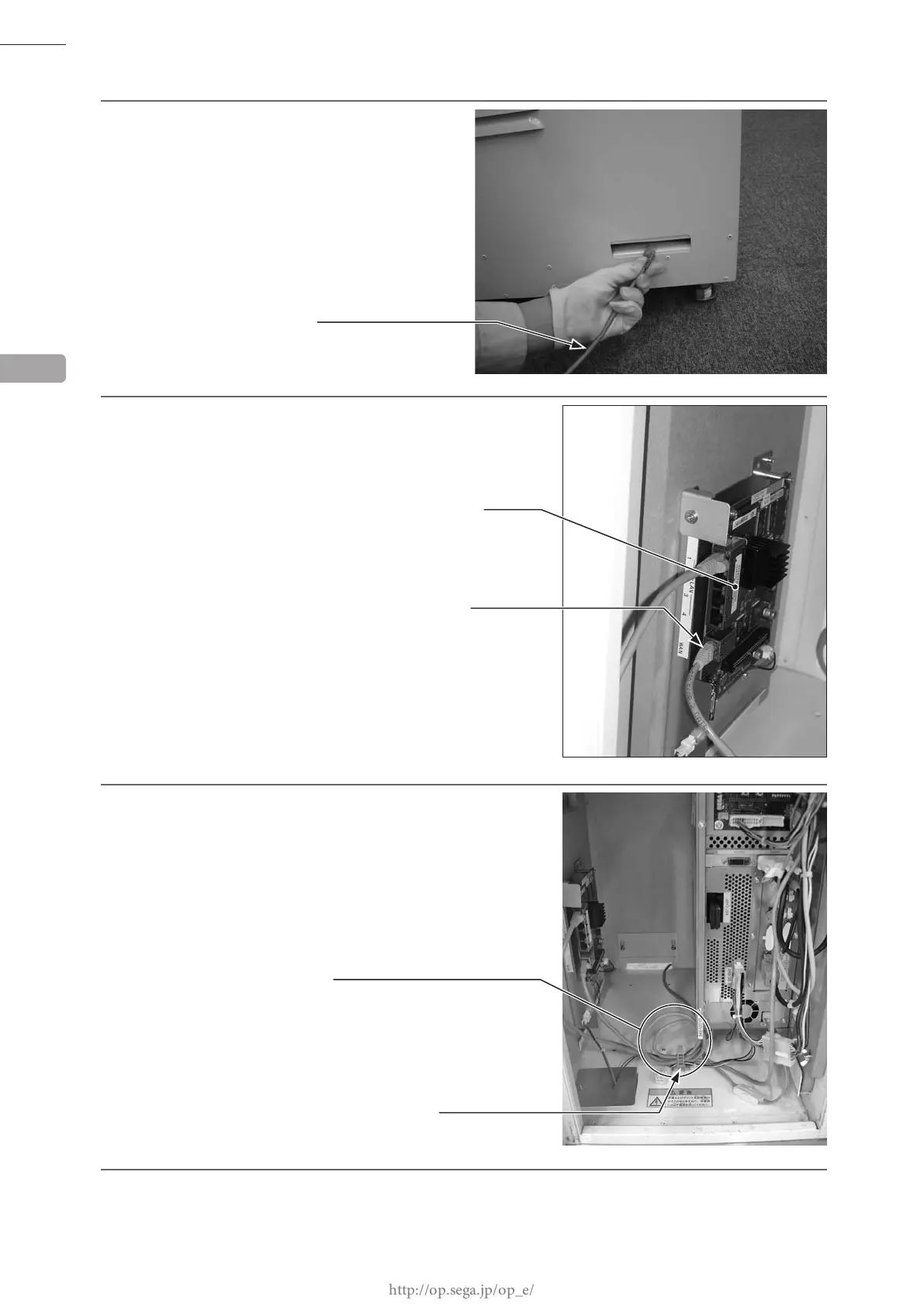

Thread one end of the included LAN cable
[50 m (164 ft)] through the square hole on the
back of the cabinet.
6
Connect the 1 connector of the LAN cable [50 m (164 ft)] to
the router's WAN port.
7
Use 1 cord clamp to secure the LAN cable. To prevent
disconnection, make a 15 cm (5.9 in) (approx.) diameter ring
with the LAN cable before afxing it.
8
Connect the connector on the opposite side of the LAN cable [50 m (164 ft)] you have connected to the
router's WAN port to the external network (ALL.Net.)
6
LAN cable [50 m (164 ft)]
ROUTER
WAN PORT
CORD CLAMP (1)
15 cm (5.9 in) (approx.) diameter ring
