12
INSTALLATION
6
Make sure that all the adjusters are in contact with the floor. Otherwise the cabinet
may move, causing an accident.
6-1

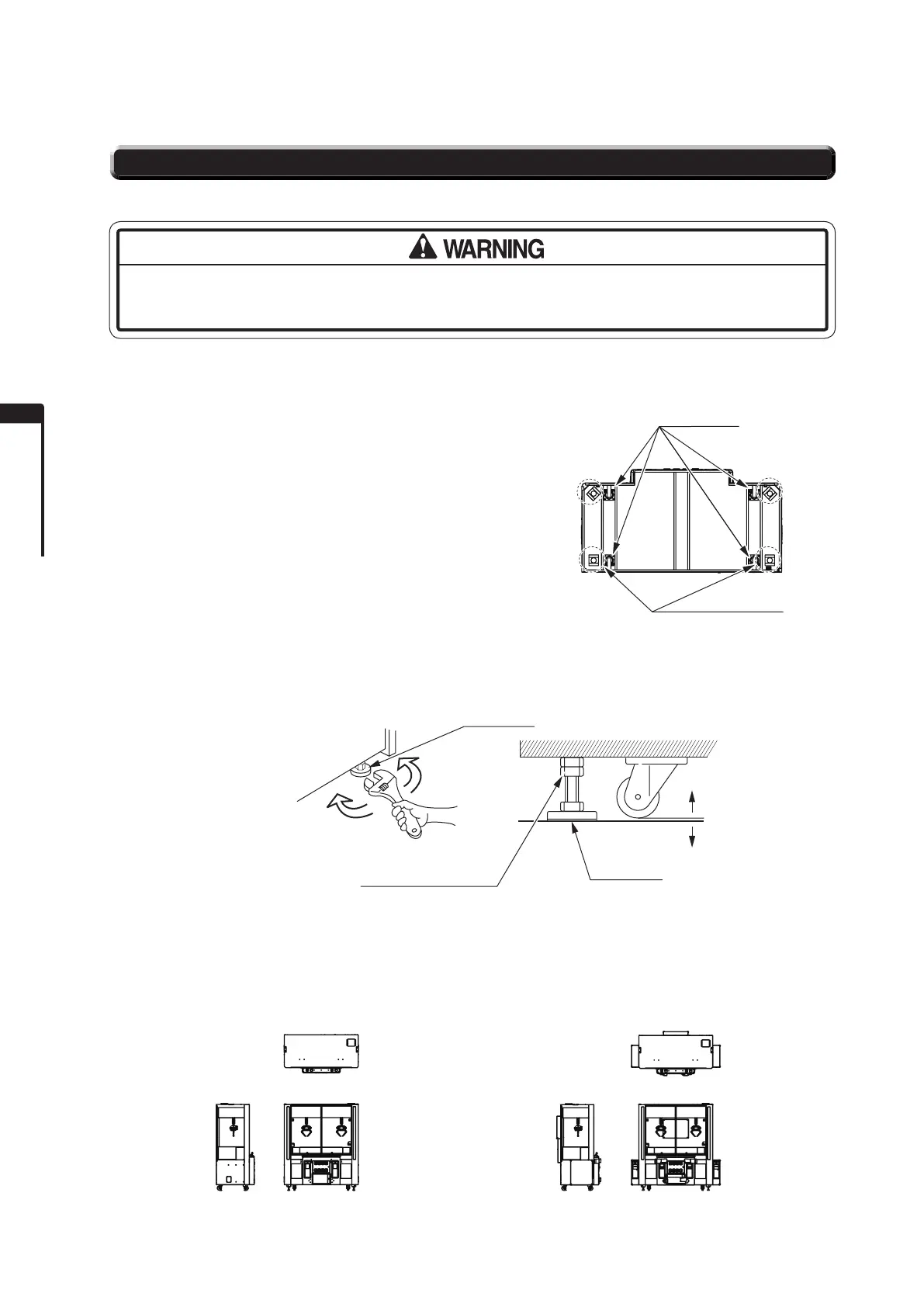

SECURE THE UNIT AT THE INSTALLATION SITE (MANIPULATE THE ADJUSTERS)
The product comes with 4 casters and 4 adjusters (Figure 6-1a). After the installation site has been determined, have
the adjusters come directly in contact with the floor, establish a gap of about 5 mm between the casters and the floor
surface, and adjust the adjusters so that the game machine is level.
1. Move the product to the installation site.
2. Adjust the adjusters so that they come in contact with
the floor. Use the wrench to adjust the heights of the
adjusters so that the game machine is level.
3. After making adjustments, tighten the adjuster nut
upwards so that the adjuster height is fixed.
FIG. 6-1a Bottom View
FIG. 6-1b Adjuster in contact with floor
FIG. 6-1c Basic Cabinet FIG. 6-1d Full Options Cabinet
(See Section 21.)
A 1:100 scale view of the unit. Use it as a reference for installation site layout.
