Sega UFO CATCHER User Manual

15
INSTALLATION
6

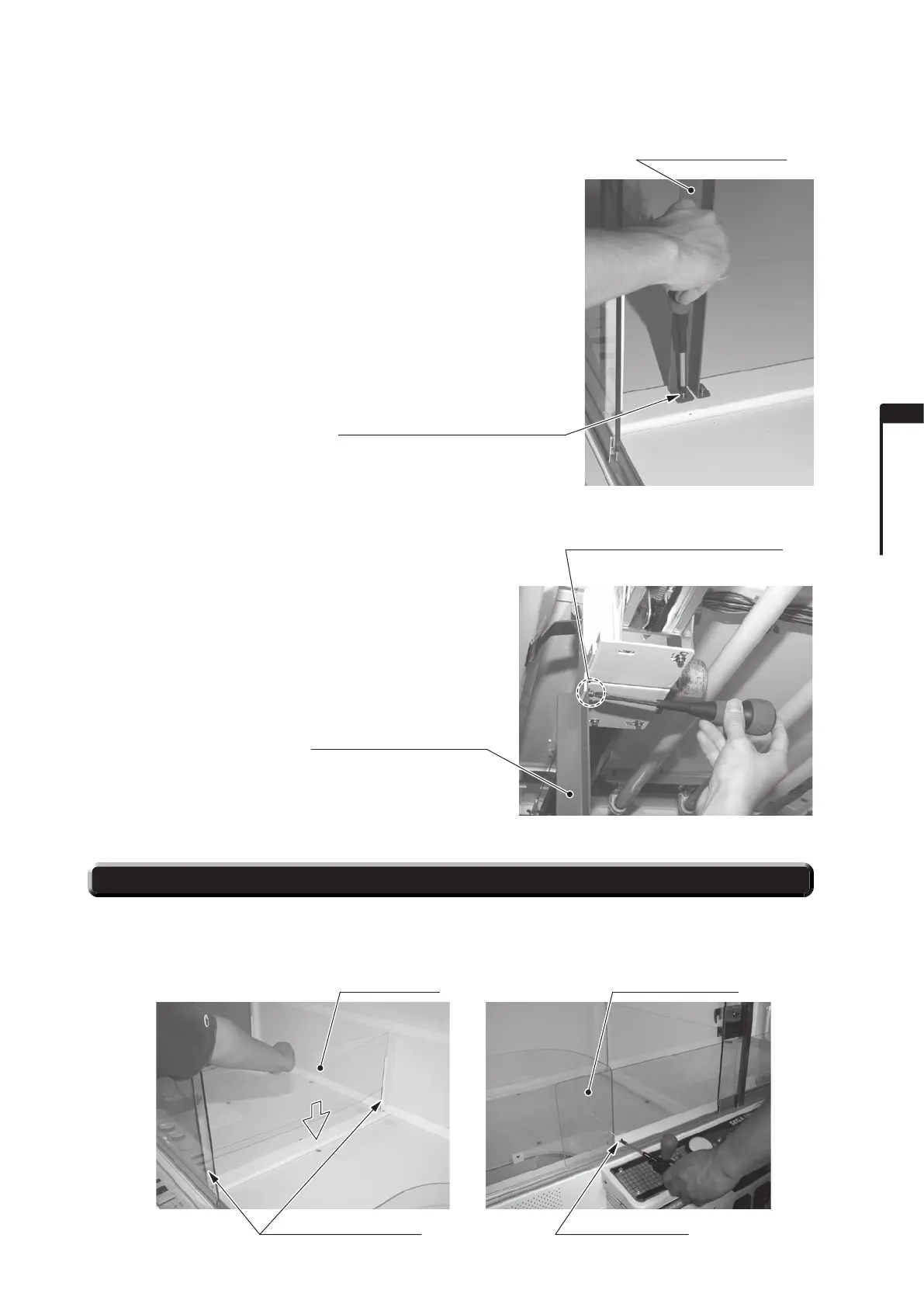

7. Remove the two screws at the bottom of the shipping
center bar.
8. Remove the screw at the top of the shipping center
bar.
Make sure to hold the shipping center bar, then
remove the screw.
6-3 ATTACH PARTITION
When attaching the partition CL, insert the partition CL into the partition bracket CL.
When attaching the partition front, secure in place with two truss screws.
PHOTO 6-2
f
PHOTO 6-2
g
PHOTO 6-
3a PHOTO 6-3b
SHIPPING CENTER BAR
M4 x 8, w/flat & spring washers
SCREW (2)
SCREW (1)
M4 x 8, w/flat & spring w
ashers
SHIPPING CENTER BAR
PARTITION CL
PA
RTION BRACKET CL TRUSS SCREW (2)
M4 x 8
PARTITION FRONT
