Sega UFO CATCHER - Sensor Bracket Position Adjustment

40
ARM MECHANISM
13
13-2 ADJUSTMENT OF SENSOR BRACKET POSITION
When changing the arm size or to limit the range in which the UFO mechanism can move horizontally, change the
position of the sensor bracket. The UFO mechanism stops where the sensor bracket is located.
The sensor brackets are in a symmetrical spatial relationship with respect to 1P and 2P.

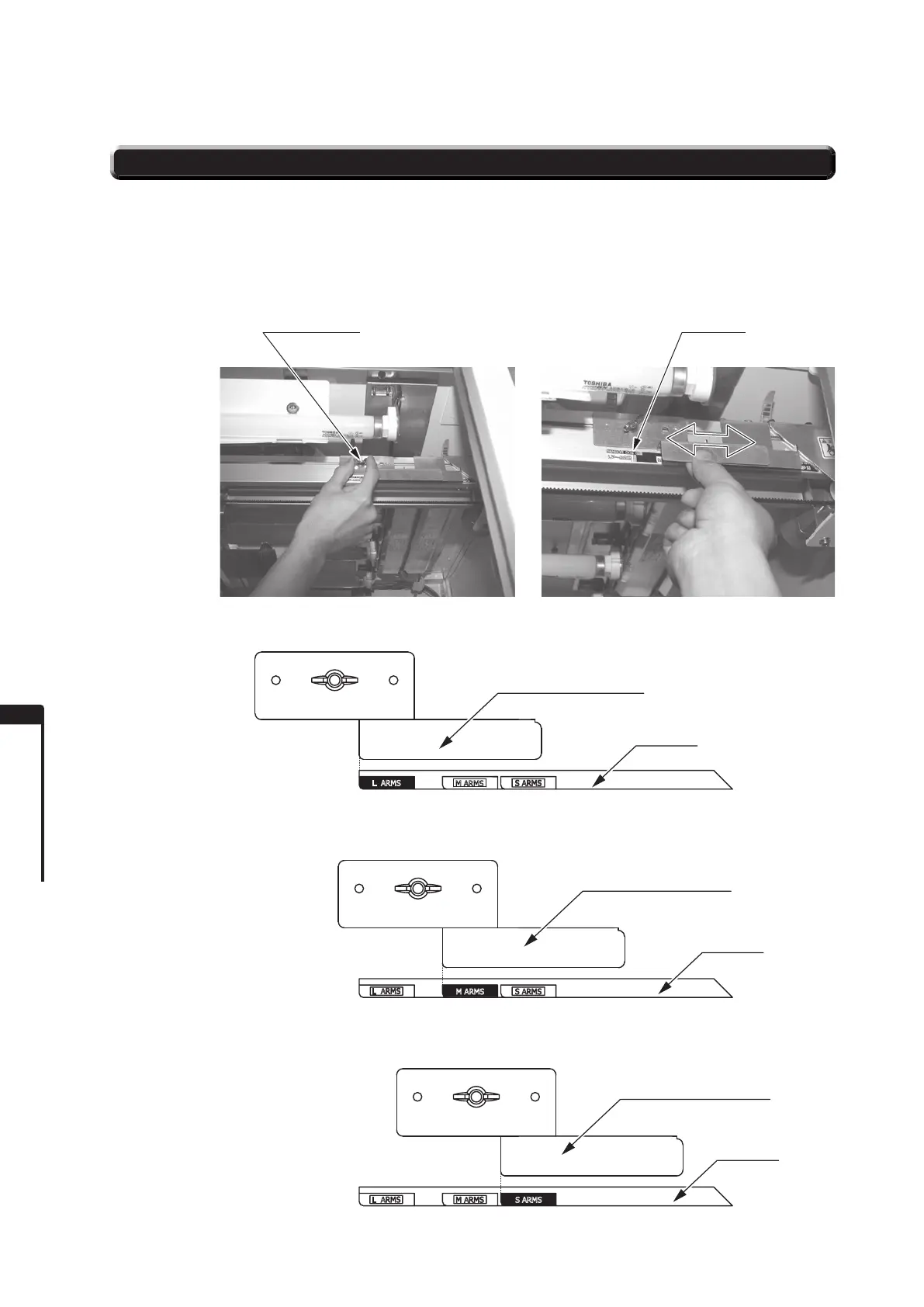

1. Loosen the wing screw and move the sensor bracket HP (Home Position) to the location indicated by the sticker.
13-2a
FIG. 13-2a
WING SCREW STICKER
S ARMS
L ARMS
S ARMS
M ARMS
M ARMS
L ARMS
S ARMS
M ARMS
L ARMS
SENSOR BRACKET HP
When attaching arm L (2P):
When attaching arm M (2P):
When attaching arm S (2P):
STICKER
SENSOR BRACKET HP
STICKER
SENSOR BRACKET HP
STICKER
