47

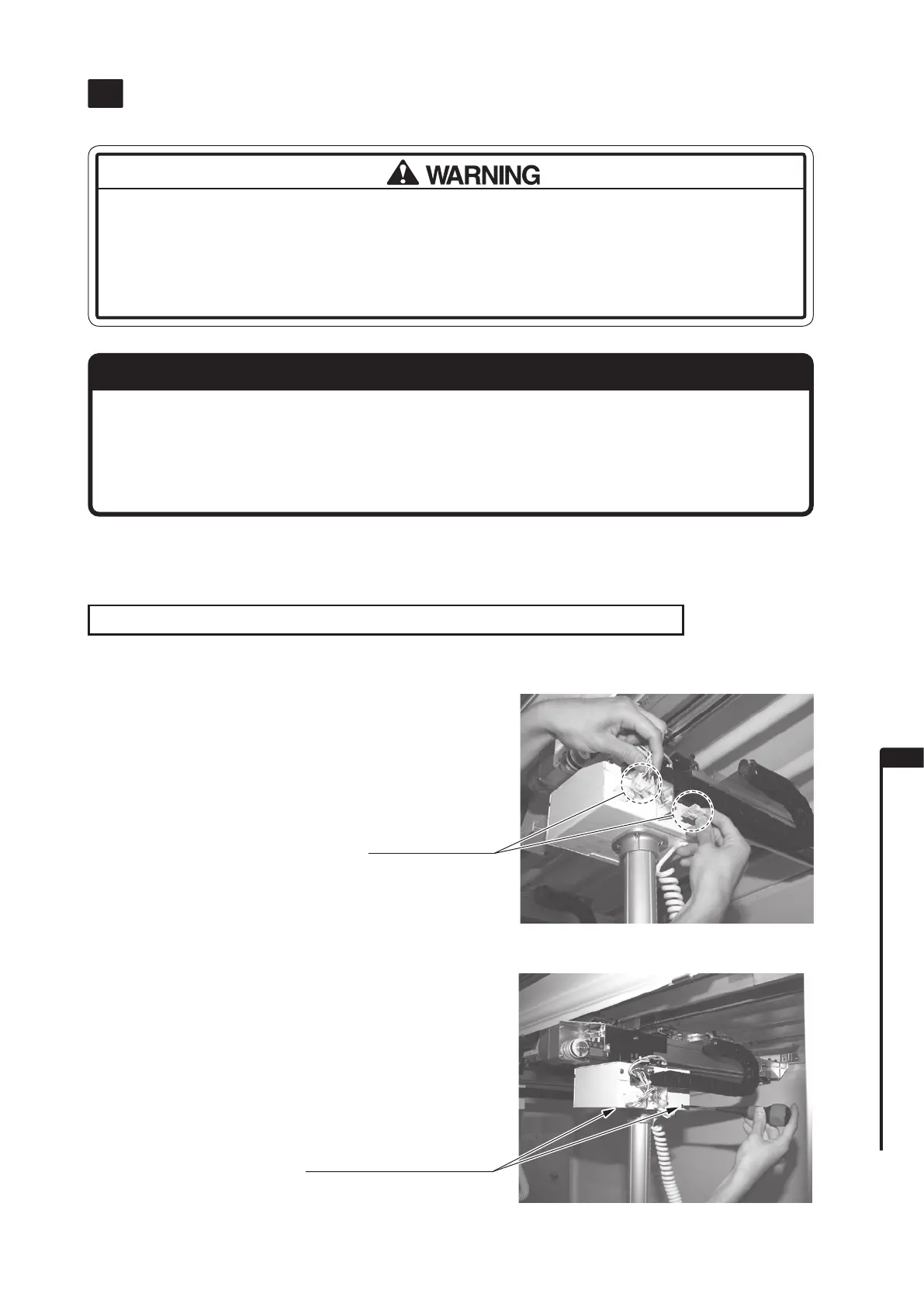

MAINTENANCE OF Z-ORIENTED MECHANISM
14
MAINTENANCE OF Z-ORIENTED MECHANISM14
• Before performing work, be sure to turn the power off and unplug the electrical
cord from the outlet. Performing the work without turning the power off can
cause an electric shock or short circuit.
• Be careful not to damage the wires. Damaged wires may cause an electric
shock, short circuit or present a risk of fire.
• Use only prescribed grease. Using other types of grease could cause damage to
components.
• Apply grease only to prescribed locations. Otherwise, operations may become
defective and component materials may be altered.
IMPORTANT
An M4 Philips screwdriver is required for the following procedure.
APPLYING GREASE TO INTERIOR OF Z-ORIENTED MECHANISM
Apply grease to the following areas once every three months.
For spray grease, use grease mate (PART No. 090-0066).
14a
1. Remove the two connectors.
PHOTO 14b
2. Remove the two truss screws on the back side.
To Next Page
