MAINTENANCE OF Z-ORIENTED MECHANISM
14

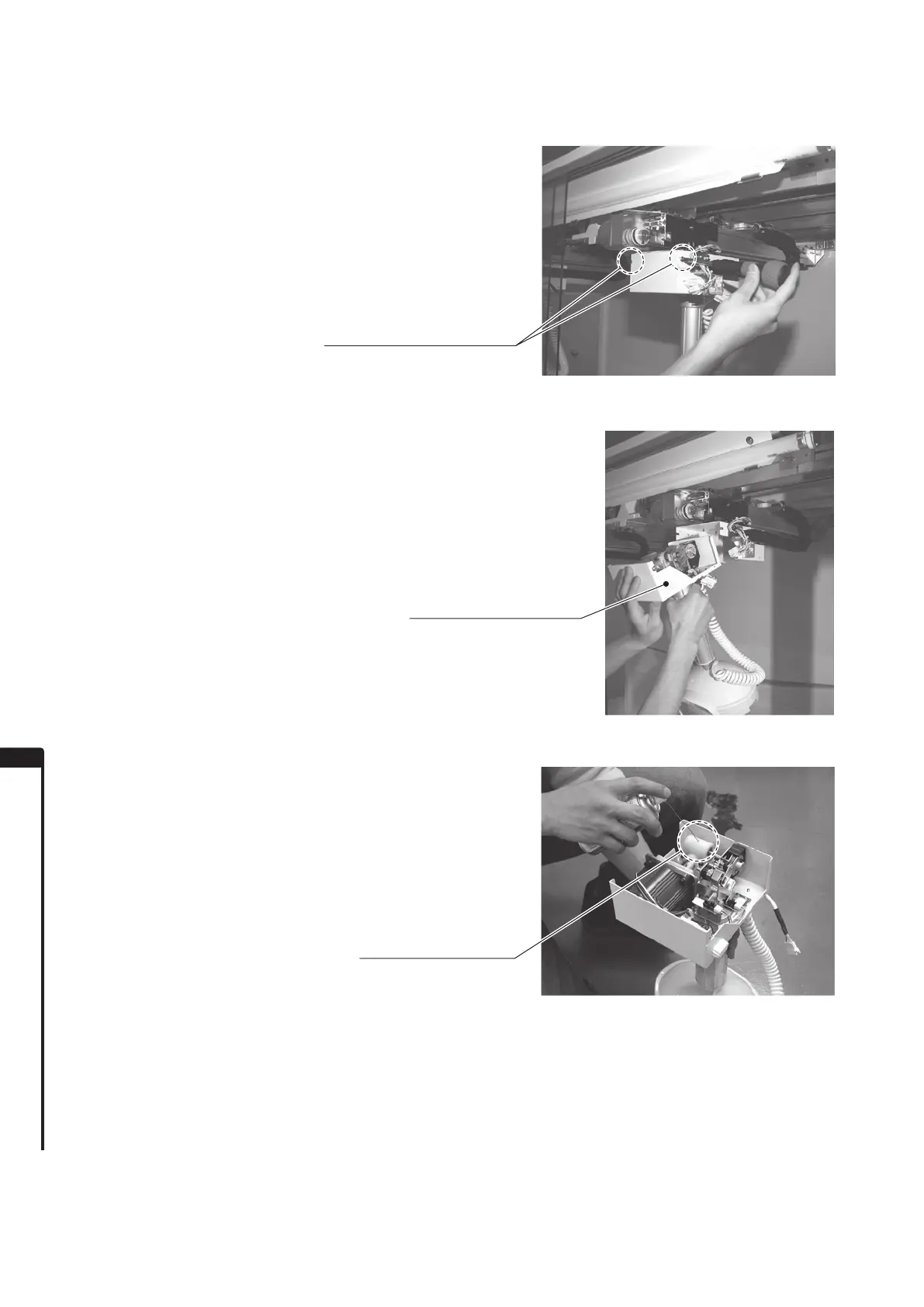

PHOTO 14c
3. Loosen the two truss screws on the front side.
PHOTO 14
d
4. Remove the Z-oriented mechanism.
5. Insert spray grease nozzle into the hole for greasing
and apply grease.
6. Carry out the above procedures in reverse order to reattach the mechanism.
Be sure to confirm at this time that no wiring has been caught.
14e
M4 x 8
TRUSS SCREW (2), chrome
Z-ORIENTED MECHANISM
HOLE FOR GREASING
