14
INSTALLATION
6

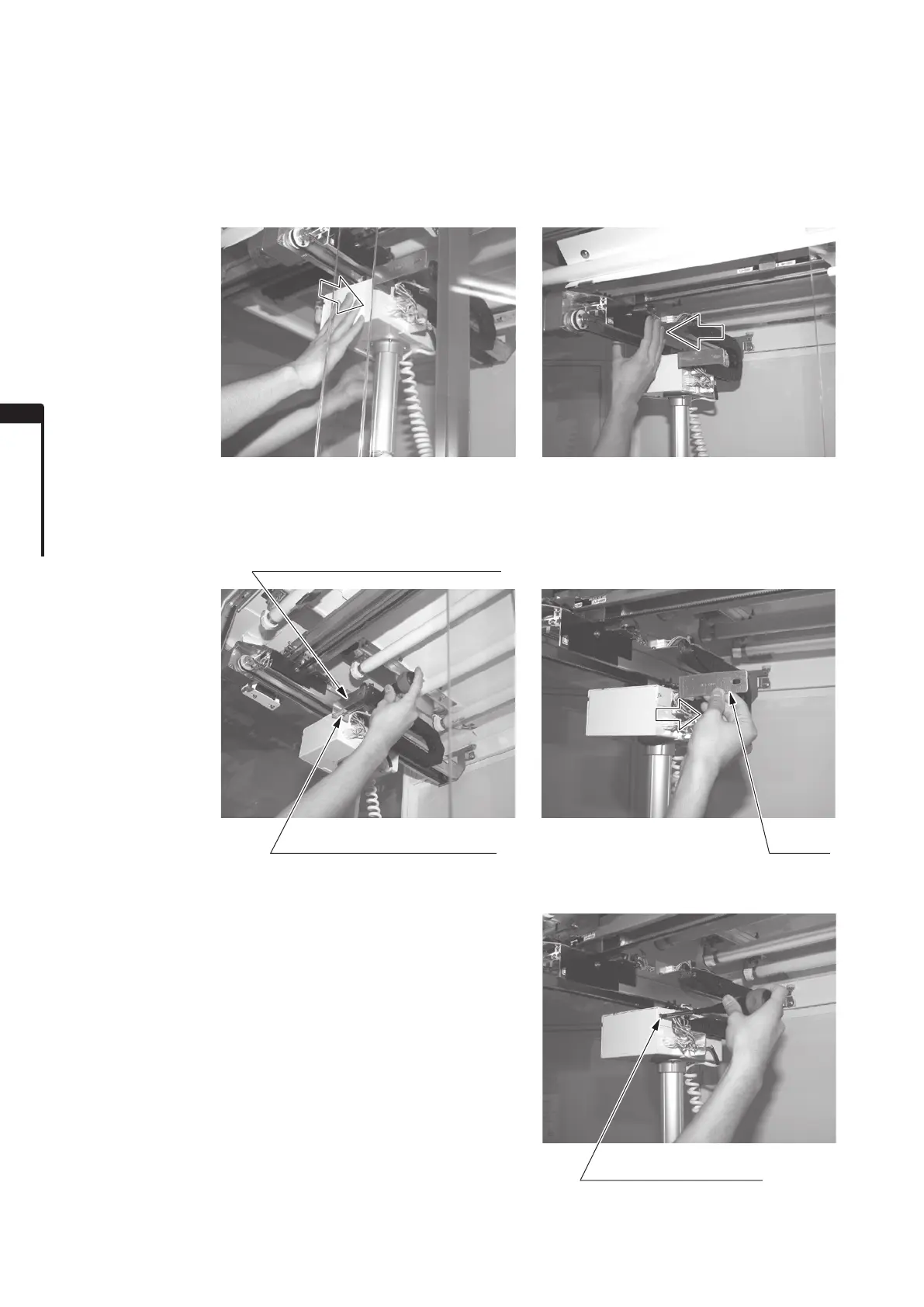

3. Move the UFO mechanism to a location where it will be easy to work. Place hand as shown in the photo and
move the mechanism. Do not move holding other parts as you may get your fingers caught and be injured. Also,
the mechanism itself may become damaged.
4. Remove the screw. Make sure to hold the shipping bracket mechanism so it will not fall down, then remove the
screw.
5. Secure in place with the accessory truss screw.
6. Perform steps 3, 4, and 5 again on the opposite side.
PHOTO 6-2c
PHOTO 6-2
d
PHOTO 6-2e
SHIPPING BRACKET MECHANISM
Remove
.
M4 x 8, w/flat & spring washers
SCREW (1)
M4 x 8
TRUSS SCREW (1), chrome
