8. Pass the ticket dispenser box connector through the wiring hole on the cabinet side.
Open the back lid, then pass the ticket dispenser box connector through the wiring hole inside the cabinet.

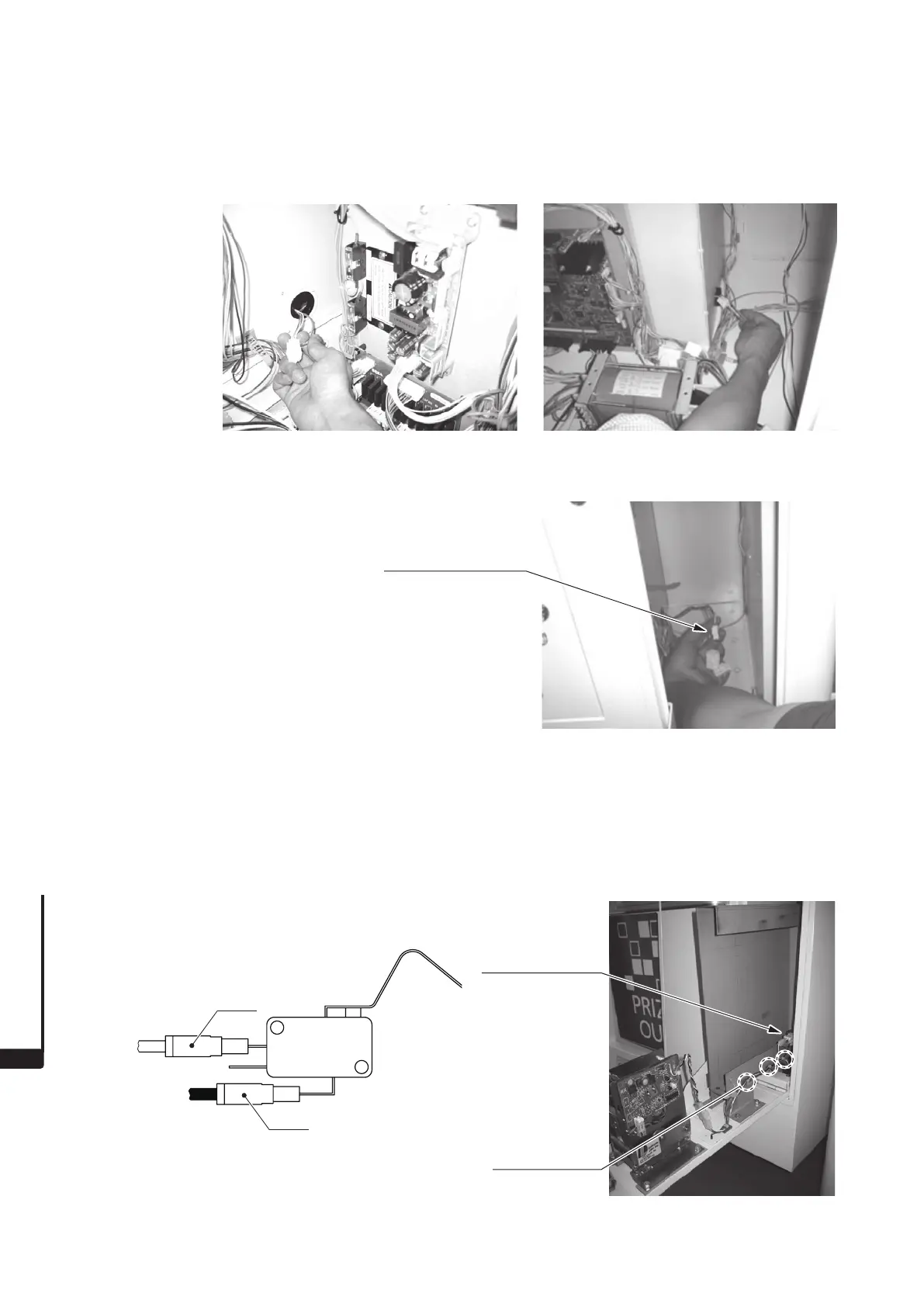

PHOTO 21-5h PHOTO 21-5i
21-5j
9. Open the bill validator door then connect the connector.
10. Secure the ticket bin in place using the 4 flange nuts, secure the wire harness to the cord clamp, then connect the
level sensor switch’s faston terminal.
FIG. 21-5 FASTON TERMINAL
PHOTO 21-5k
NOTE: When securing the wire harness, secure the earth wire to the 2 cord clamps backside. Also, make sure there
isn’t too much slack in the wire harness extending from the cabinet.
