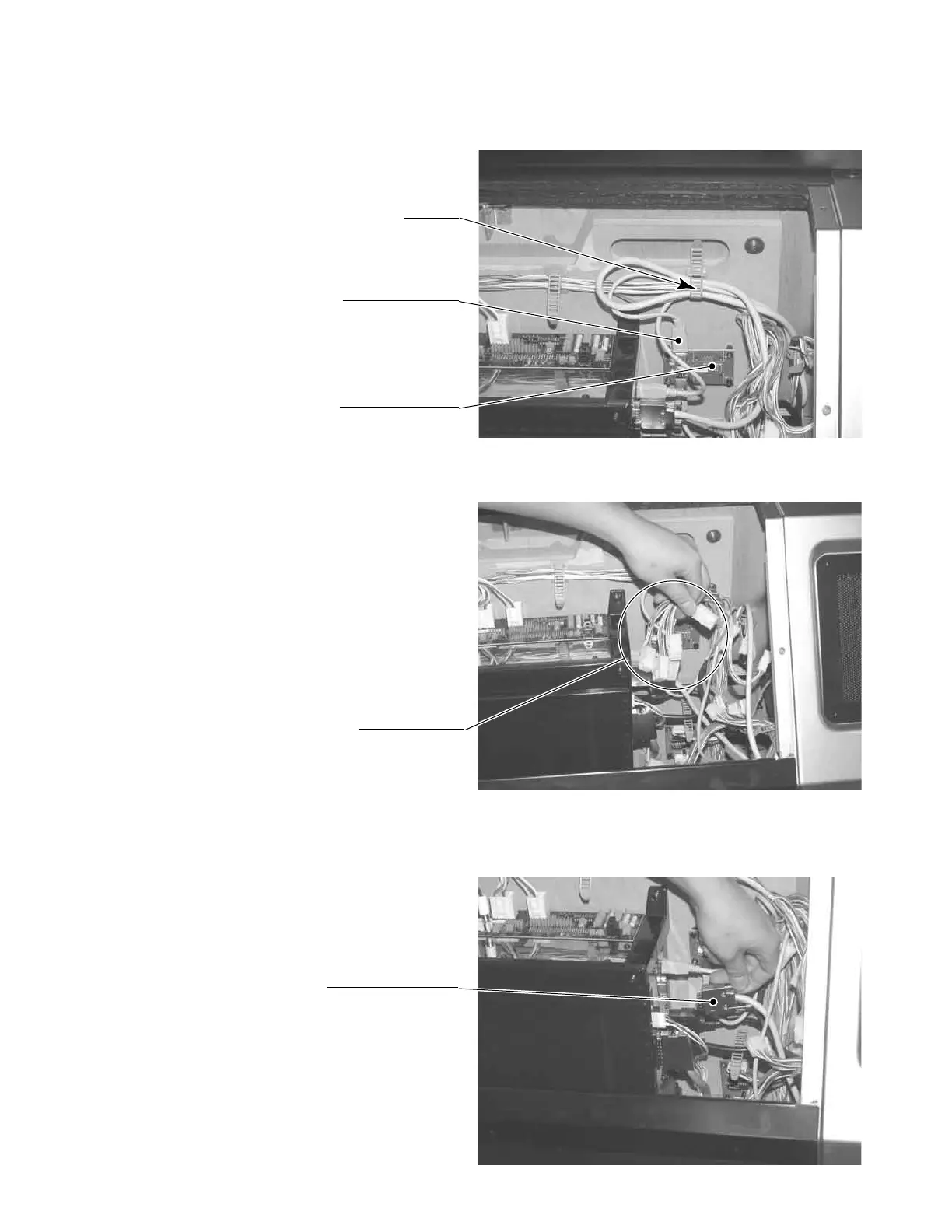

Unclamp the clamp on the upper right of the ASSY MAIN BD and disconnect the USB connec-
tor from the connect board.
Unclamp.
USB CONNECTOR
CONNECT BOARD
PHOTO 6. 6 f
Disconnect 7 connectors.
CONNECTOR (7)
PHOTO 6. 6 g
Find the D-SUB connector that is
connected to the game board side
of the ASSY MAIN BD, loosen the
screws on the right and left of and
disconnect.
D-SUB CONNECTOR
PHOTO 6. 6 h
