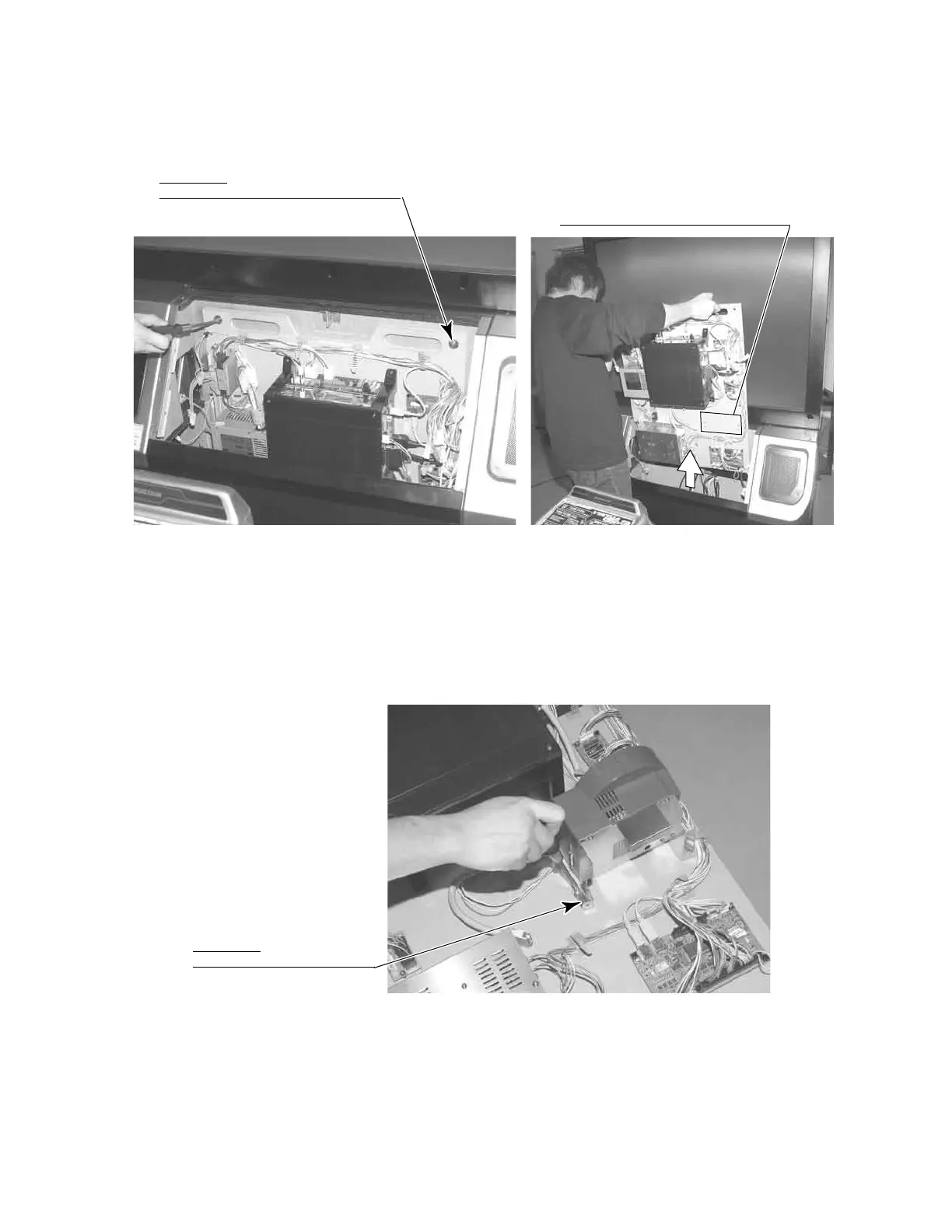

 Place the ASSY MAIN BD on a at horizontal surface.
 Using the 4 screws, x the GD-ROM drive onto the ASSY MAIN BD.
PHOTO 6. 6 i
PHOTO 6. 6 j
 Remove the 2 screws that x the ASSY MAIN BD's base (a wooden base).
 Take out the ASSY MAIN BD from the PTV cabinet. Be careful not to damage the wires in this
instance.
PHOTO 6. 6 k
GD-ROM DRIVE dirve is installed here.
SCREW (2)
M5×35, w/spring washer, at washer used.
SCREW (4)
M4×16, w/at & spring washers
