Seismic Source BOOM BOX 3 User Manual

27 BOOM BOX 3 Dynamite Controller
7.3 A3 Repeater Operation
A Boom Box 3 or Boom Box in Decoder operating mode can be used as an A3 Repeater. The
Boom Box Decoder would need to be in Ready Message type Vib Pro.
The Boom Box 3 and Boom Box Decoder unit becomes an A3 Repeater whenever an A3 Repeater
start code message is received with the correct conditions. The Decoder Crew ID must match the
A3 Repeater start code message Crew ID and the Decoder Unit ID must match the A3 Repeater
start code message Repeater ID.
If the same Unit ID is shared among more than one box, the A3 Repeater mode will not operate
properly.

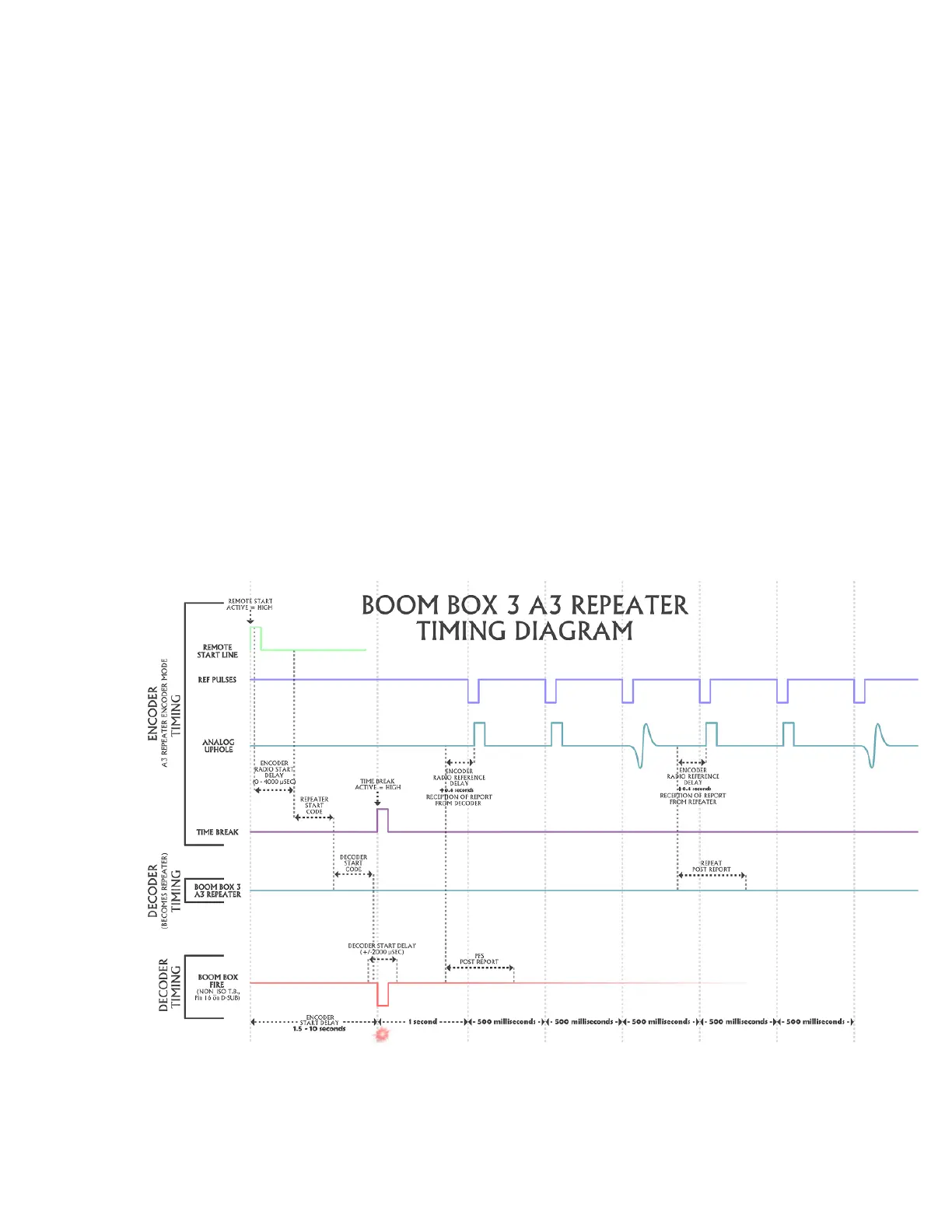

7.4 Fire Sequence – A3 Repeater – Following sequence occurs.
• The A3 Repeater Boom Box 3 or Boom Box Decoder unit is powered on and connected to
a radio. No switches or buttons need to be pressed to be in repeater mode.
• When a valid A3 Repeater Start Code is received from the A3 Repeater Encoder unit, the
Repeater generates the Decoder Start Code from the A3 Repeater Start Code.
• The A3 Repeater Decoder receives the Shot Status Report message from the shooting pack
Decoder.
• The received Shot Status Report is re-transmitted over the radio to the A3 Repeater
Encoder.
