Seismic Source BOOM BOX 3 - Block Diagram

35 BOOM BOX 3 Dynamite Controller

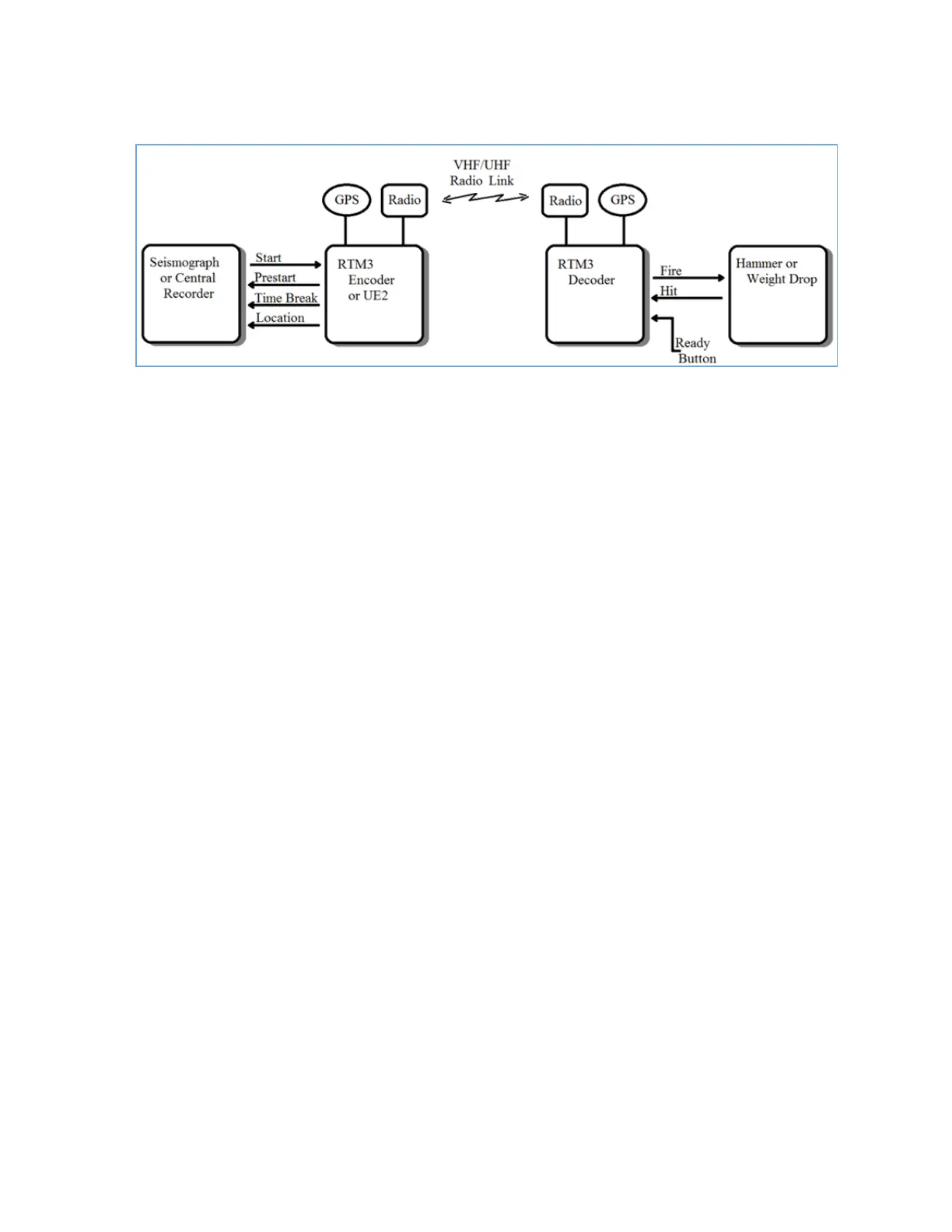

10.2.3.1 Block Diagram
10.2.3.2 BOOM BOX 3 in RTM Encoder mode Encoder Equipment
The Basic BOOM BOX 3 (in RTM encoder mode) Encoder system includes the following:
• BOOM BOX 3 unit
• BOOM BOX 3 Encoder Cable set
• GPS module
• Radio and Antenna
10.2.3.3 BOOM BOX 3 in RTM Decoder mode Decoder Equipment
The Basic BOOM BOX 3 (in RTM decoder mode) Decoder system includes the following:
• BOOM BOX 3 unit
• BOOM BOX 3 RTM Decoder Cable set
• GPS module
• Radio and Antenna
