10.3 BOOM BOX 3 in RTM decoder Display Description

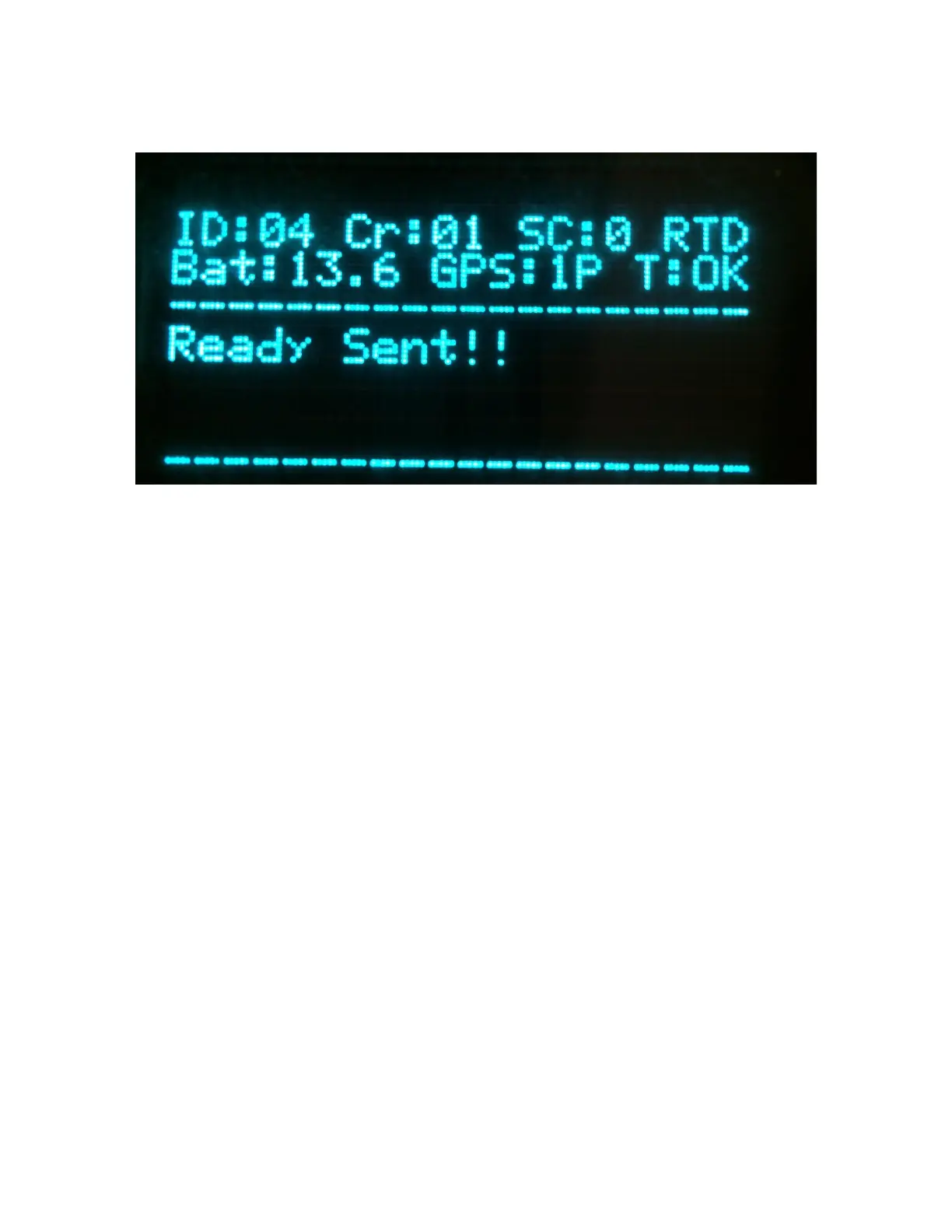

The BOOM BOX 3 has a graphical display. The display is used to show the setup of the box at
power on,. The display shows the following messages:
• Unit ID #: Unit ID of the RTM 3, SourceLink references this number.
• Crew Code #: The Crew # of the Encoder must match the Crew Code of the Decoder
• Start Code #: The Start Code # of the Encoder must match the Start Code of the Decoder
• Operating mode:
o “ENC” .............. BB3 Encoder Mode
o “DEC” .............. BB3 Decoder Mode
o ”STN” .............. BB3 Autonomous Mode
o ”AGD” ............. Marine Air Gun Decoder Mode
o ”MON” ............ Monitor Radio for Start Codes
o ”RTE” ............. RTM Encoder Mode
o ”RTD” ............. RTM Decoder Mode
• Battery: Battery voltage indicator
• GPS: Shows the following:
o Quality of the GPS lock: ‘1’ - GPS Fix; ‘2’ - Differential GPS; ‘P’ - PPS
available
o Time Synchronization: “T:OK” - Time Synchronized; “T:NO” - No time sync;
(BB3 only: ”Lock” - GPS position is locked for the next shot)
