Seismic Source BOOM BOX 3 User Manual

87 BOOM BOX 3 Dynamite Controller
14.2.3 Source Control F3, Sequence Table Setup
The Sequence table is used to setup which blaster(s) to fire, the Start Code and Crew ID to use.
Also, if to use a repeater to pass along the start code. Use Source Control F3 v.3.22 or v.3.21 to
modify the sequence table with current BB3 firmware.

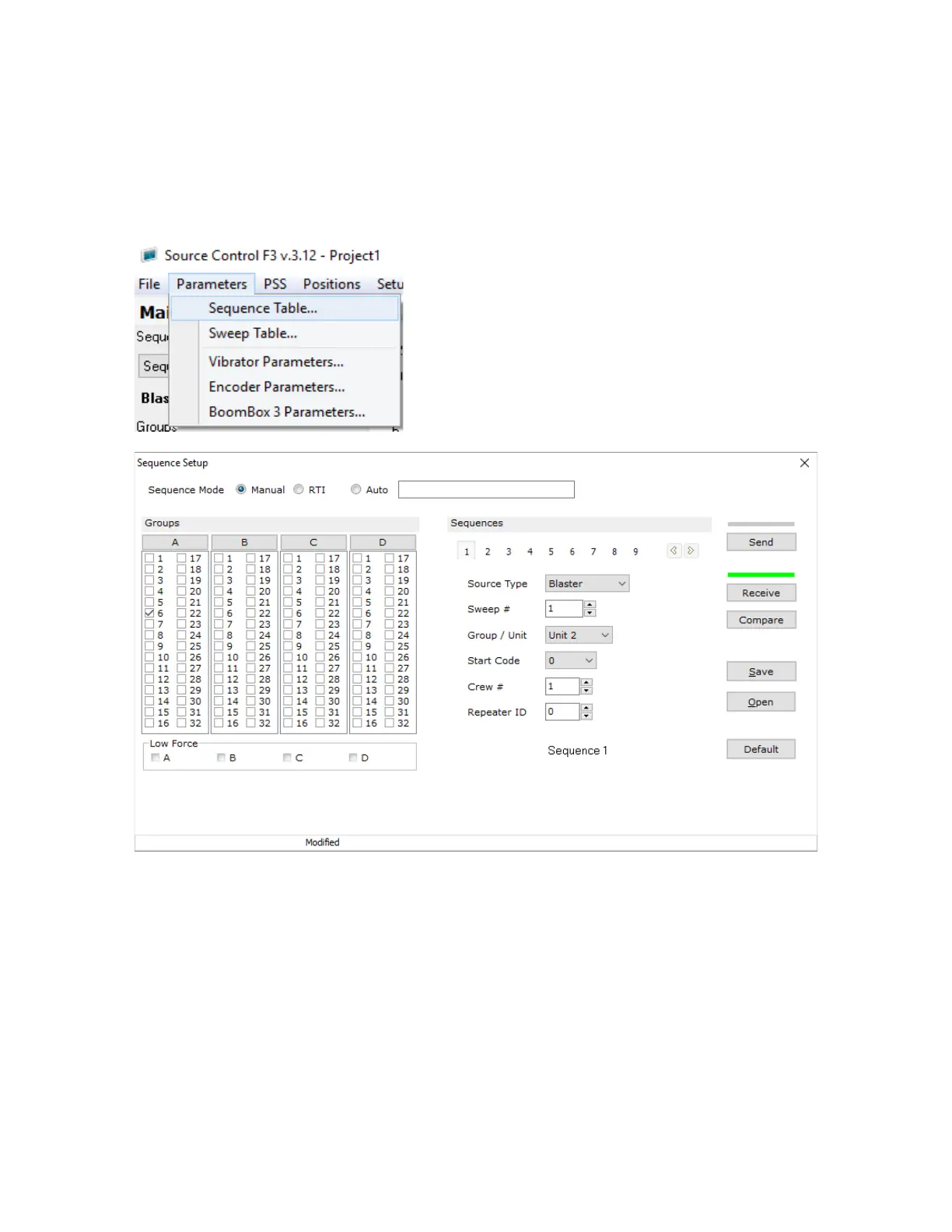

Click on Parameters, then Sequence Table
Source Type: Use Blaster for dynamite work.
Sweep #: Ignore Sweep # for dynamite work.
Group/Unit: Selects the units to fire.
• Individual units can be selected by the drop-down arrow.
• Multiple units can be selected in the four groups, A, B, C and D. Then select the
appropriate group by the drop-down arrow.
Start Code: The Start Code must match the shooting pack (decoder) Start Code.
Crew #: The Crew # must match the shooting pack (decoder) Crew number.
Repeater ID: When zero the repeater functionality is turned OFF. If the number is greater than
zero, then the repeater functionality is turned ON. The Repeater ID has to match the BB3 decoder
Unit ID to be used as the repeater.
