Seismic Source BOOM BOX 3 User Manual

75 BOOM BOX 3 Dynamite Controller
Allow Shooting Without Near Point – BB3 will shoot without any Source Points loaded.
Use Double Button To Lock GPS – Makes the BB3 operator to press the Charge and GPS buttons
to store the GPS position.
Max Distance to Source Point [m] – The maximum distance the BB3 can be from a Source Point
and still be valid.
Click on Send Setup to send the Source Points setup to the BB3.
14.1.6.3 Using map

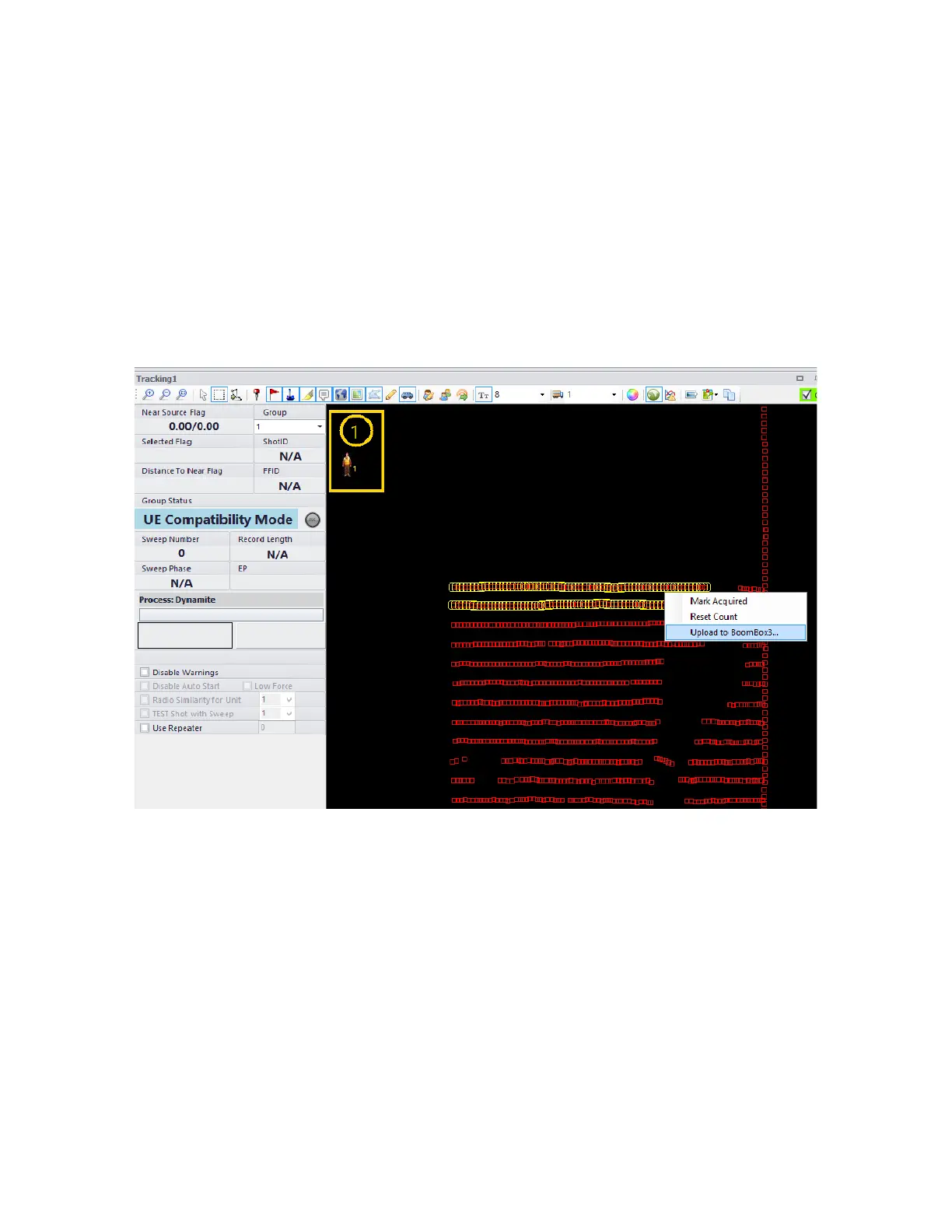

Select point using rectangular or polygon selection toolbar and then choose “Sources”, when the
sources are highlighted, right click and choose Upload to BoomBox3.
14.1.6.4 BB3 Display updates
When the Shot points are loaded into BB3 memory, BB3 will automatically display the nearest flag
and its distance in the display updated every 5 seconds while the shooter is moving to the location.
If the user has navigated to the point and then reached the flag, user has to press the GPS button as
part of the standard shooting sequence, now if the shooter holds the ARM & Charge buttons, the
display will show the actual point selected for this shot and the distance to the point.
