MRD 5800 – User Manual
Page 19 (116)

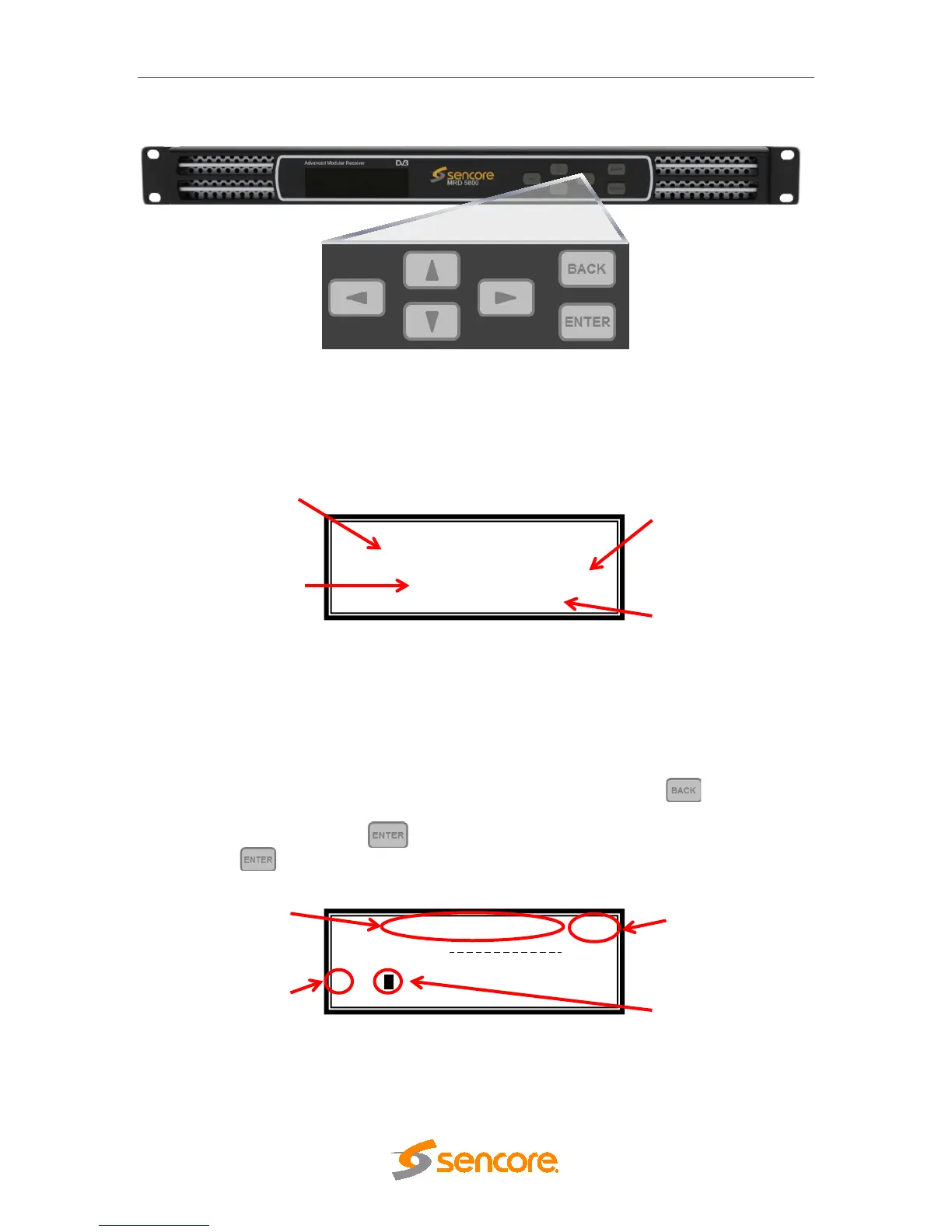

3.1 MRD 5800 Front Panel Overview
The MRD 5800 front panel allows the user to configure all settings that are present in the
web interface using the buttons located on the front of the unit. The screen below is the
idle screen of the MRD 5800. This idle screen allows the user to view the incoming
bitrate of the active input, which input is set to active, the management IP address of the
unit and the service currently set to decode.
1. Bitrate of incoming stream displayed in Mbps.
2. Current active input.
3. IP address of management port.
4. Current decoded service.
The following figure shows a typical screen on the front panel. Several important
features have been circled and noted below. These features are common to all screens
and assist when navigating, viewing and editing unit information. The button allows
the user to return to the home screen, cancel settings and go back a menu. In order to
edit a selected parameter the button must be pressed. Once a parameter has been
changed the button must be pressed again before the change takes effect on the
unit.
1. Screen title.
2. Icons indicate which control buttons are currently valid for entry.
3. Cursor shows which line is active.
4. When editing, active character or item is highlighted.
↔↕
Bitrate: 68.502 Mbps
Input: MPEG/IP 2 Stream 1
IP: 10.0.7.106
Configure Network ↔↕
Host Name:
DHCP: Disabled
>IP: 000.000.000.000
To Next Page
