MRD 5800 – User Manual
Page 53 (116)
Authentication for a specific avail in the
Unique Program ID
Number of Avails expected in the current
viewing event

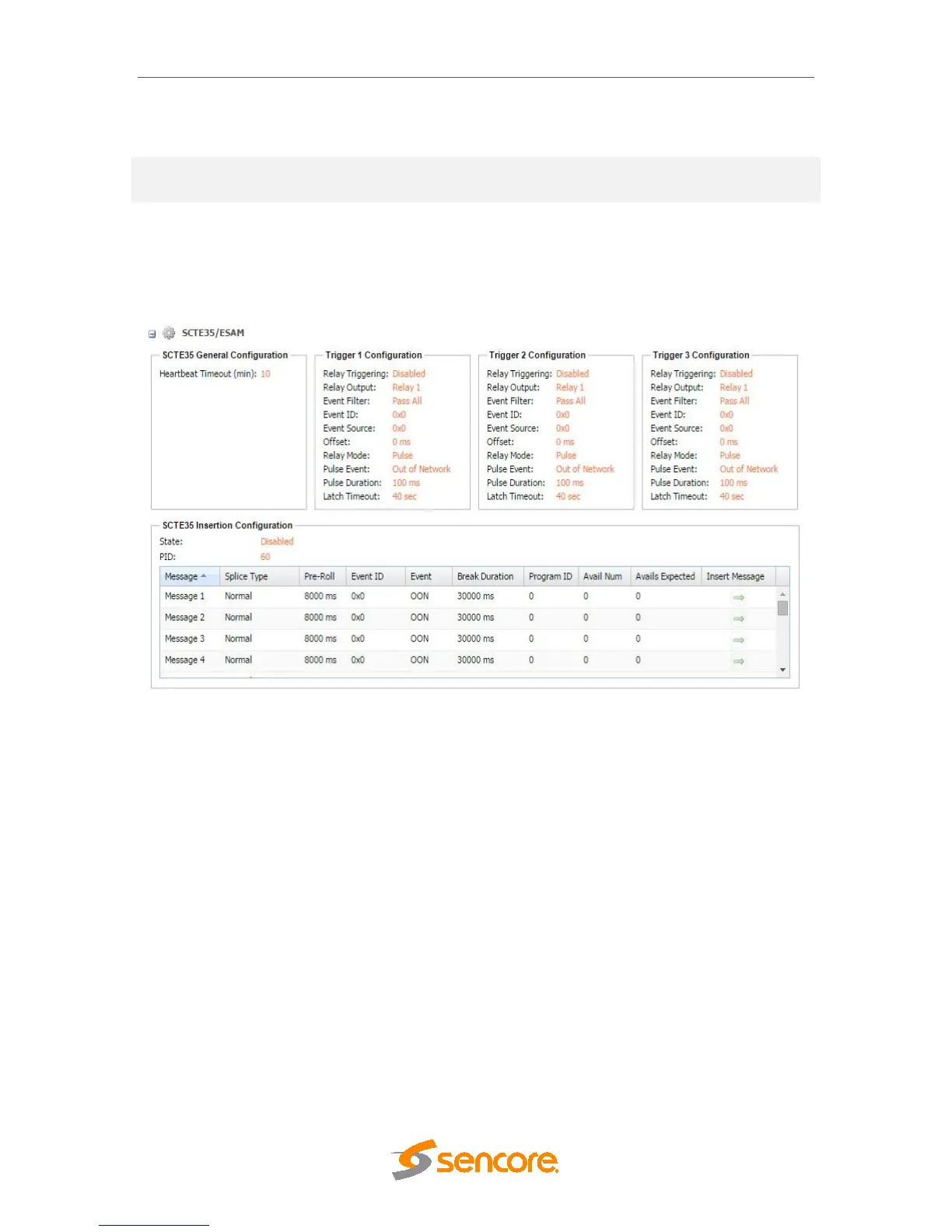

Messages can be manually inserted by clicking the green arrow that is shown when the
SCTE 35 section is expanded as shown below. In a typical operational scenario, the
splice insertion will be automated and triggered using the SNMP MIB.
4.2.16 ESAM
If the ESAM license is enabled, the following menu and options will be available for
configuration. The MRD interfaces with a Placement Opportunity Information Service
(POIS) using the CableLabs ESAM (Real-time Event Signaling and Management)
standard. When the ESAM feature is configured, each SCTE35 message which is
received in the incoming stream is sent to the POIS for processing (via the control
interface). The POIS can request that the MRD replace the message, pass the
message with no change, or delete the message.
Asynchronous SCTE 35 message insertion allows the ESAM server to create and insert
SCTE 35 messages onto a specified PID in the transport stream.
