OmniHub
6/6D–
User
Manual
Page
109
o
f
182

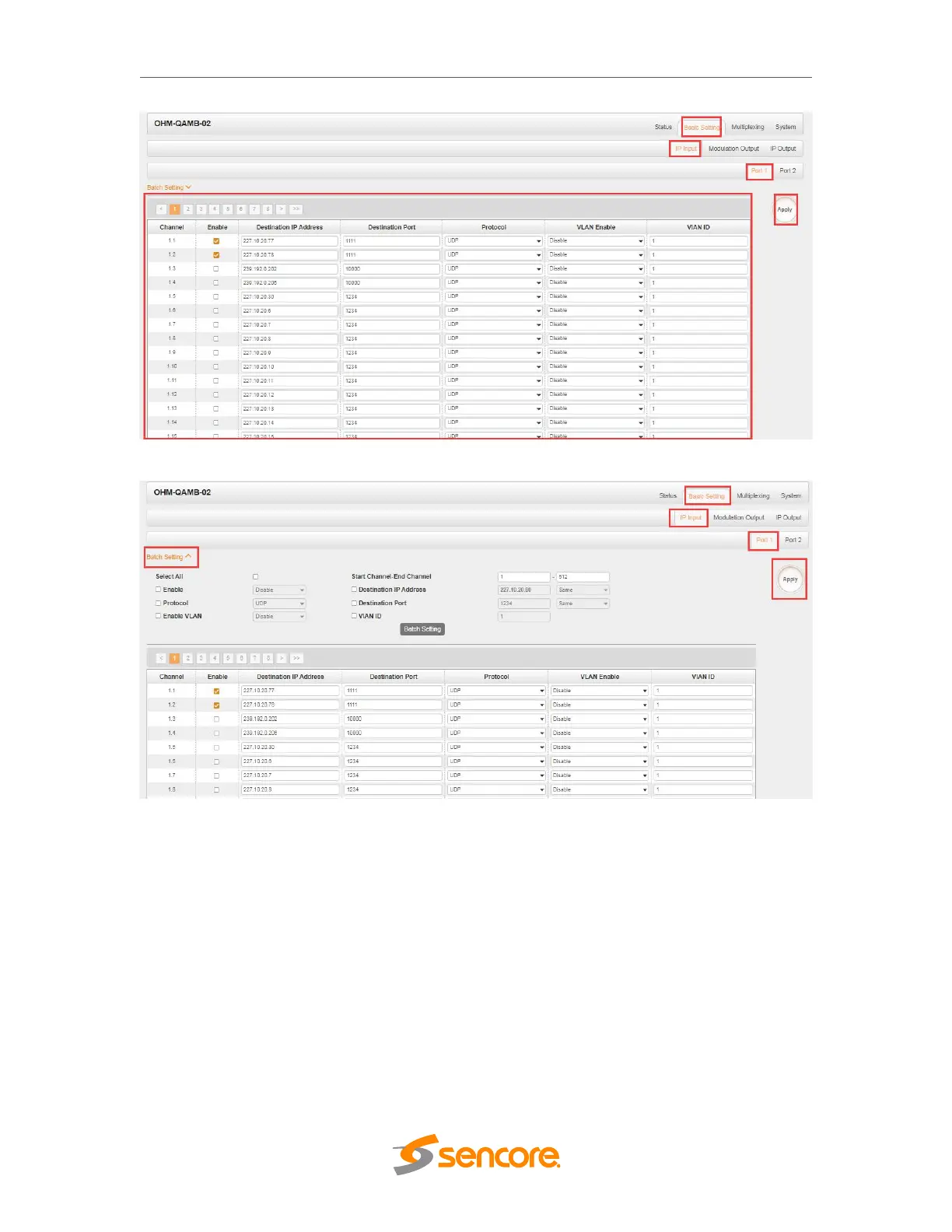

Batch
Setting
is
where
users
can
input
the
IP
input
parame
ters
in
batch.
See
the
below
for
reference.
Modulation
Output-Paramete
r
Setting>
On
this
page,
you
can
enable
channels
as
you
need
and
input
the
Channel
No.,
Q
AM
Mode,
Symbol
Rate
(KBaud)
and
RF
Level
Gain
(dBmV)
to
have
an
output.
108
110
