3.6.2 OHP6-EAS

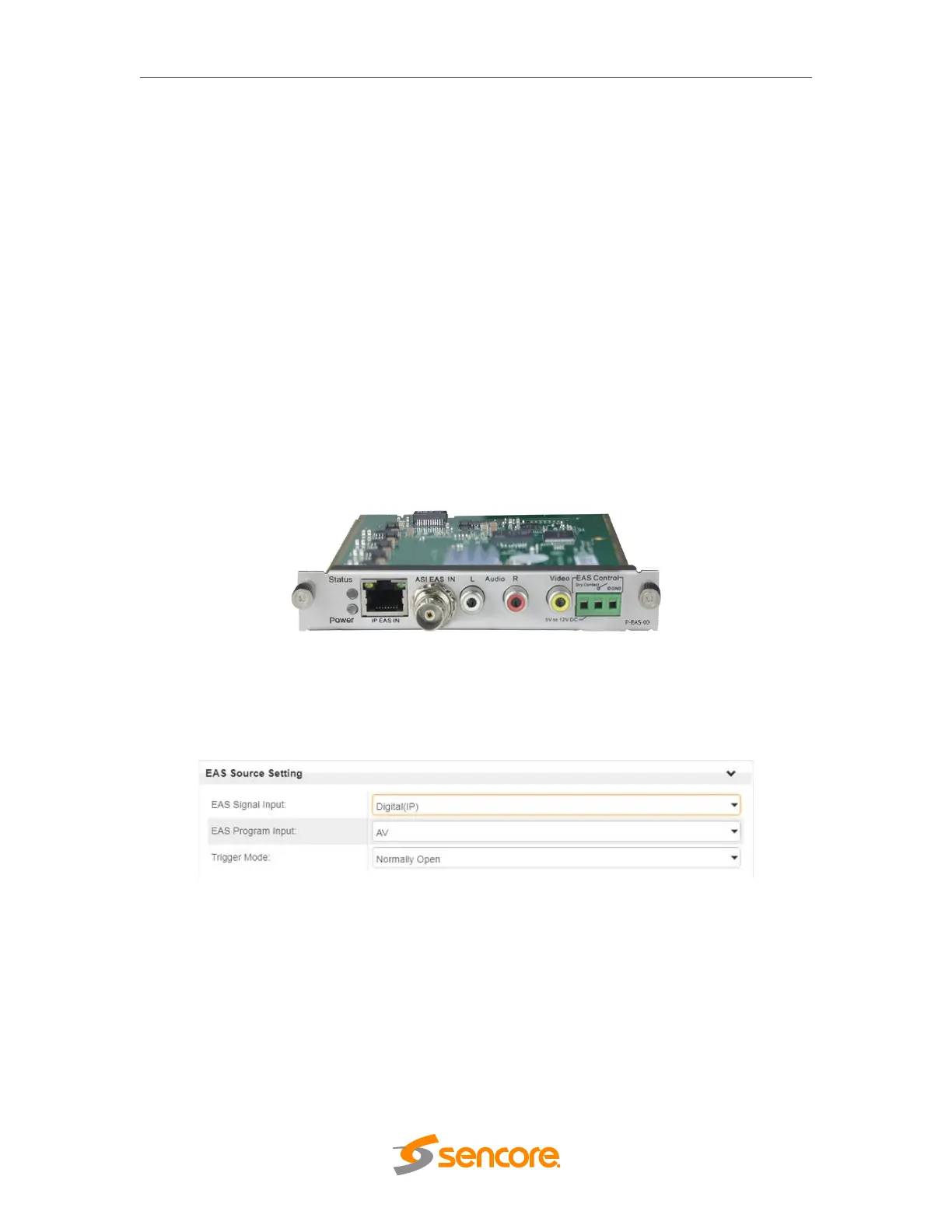

The OHP6-EAS-00 module provides the ability to interrupt Encoder playback and switch
to an external transport stream. This feature is for the US market and requires the
OmniHub chassis to be set for ATSC standard. A common application of Emergency
Alert Systems is for Broadcast and Audio Muting.
The trigger switched video content on the Encoders can be sensed using a DC contact
closure or the SCTE-18 EAS standard over ASI/IP when the EAS is “Paved” or actively
replacing the encoder outputs.
3.6.1.1 Module Settings
Below is an example of the EAS module configuration settings with some additional
descriptions. Click the Apply button on the right side of the EAS settings page to make
the change take effect.
EAS Signal Input is where you select how the module senses the trigger:
Digital – Trigger is provided via IP (SCTE-18 Broadcast Standard)
Analog – Trigger is provided as DC voltage to the EAS Control connector
EAS Program Input. Here you can select where the content originates from.
AV – Content is provided as RCA/Analog AV inputs to EAS built in the encoder
ASI – Content is provided as ASI with MPEG Transport Stream
