OmniHub 6/6D– User Manual
Page 169 of 182
QAM mode Annex B
Frequency Range 47 ~ 862MHz
Bandwidth 6MHz
Constellation 64QAM, 256QAM
Symbol Rate 5.057Ms/s (64QAM)
5.360Ms/s (256QAM)
Signal Level 40~80dBuV
CA system Supports mainstream CAS
ISDB-T Receiver
Input 4 channels via 1 RF Female connector
CI 2 x PCMCIA CI slots
CAM Descrambled channel quantity
depends on CAM capability, 2 CAMs
could be different
Frequency Range 177.143~863.143 MHz
Bandwidth 6/7/8MHz
Constellation DQPSK, QPSK, 16QAM, 64QAM
FEC 51/2, 2/3, 3/4, 5/6, 7/8, Automatic
Signal Level -80~-20dBm
CA system Supports mainstream CAS

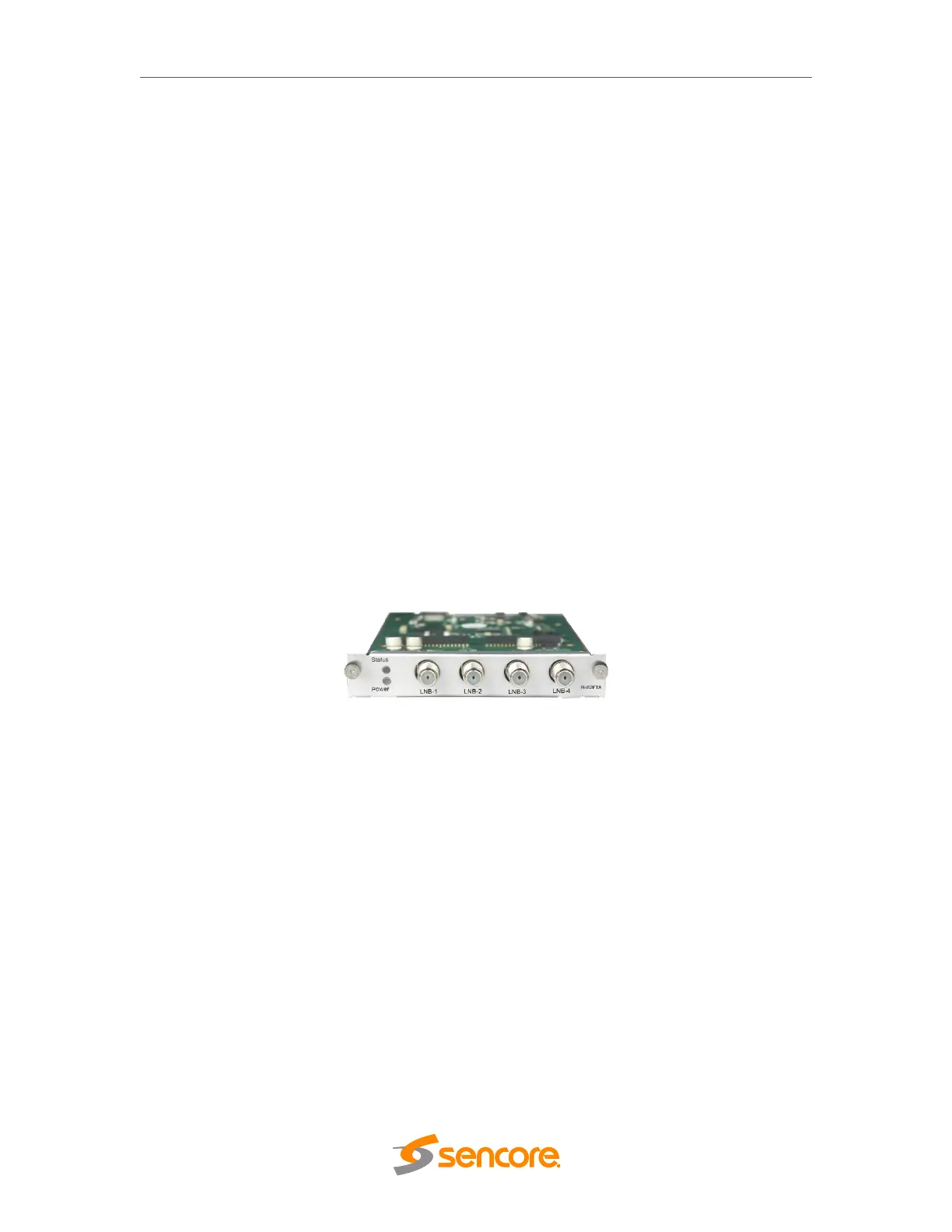

DVB-S/S2 FTA Receiver
Input C/Ku Bank, 4 channels via 4 RF
female connectors
LNB Power Independent power supplies for LNB-1
& LNB-3
LNB Current Max. 400mA
LNB Voltage 13V / 18V
Constellation QPSK, 8PSK
Frequency Range 950 - 2150MHz
Signal Level -70~-20dBm
Roll-off Factor 0.15, 0.20, 0.25, 0.35
Symbol Rate DVB-S: 1~45Msps
DVB-S2: 1~45Msps
FEC DV-S: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,
9/10
