OmniHub 6/6D– User Manual
Page 24 of 182
a total of 120 channels which means it can accommodate 120 IP address multicast.
Once a channel is enabled, the IP address and IP port configured for the channel will
appear in the table. If the source multicast is good, there will be a value under the total
bitrate and effective bitrate showing the actual bitrate of the transport stream.

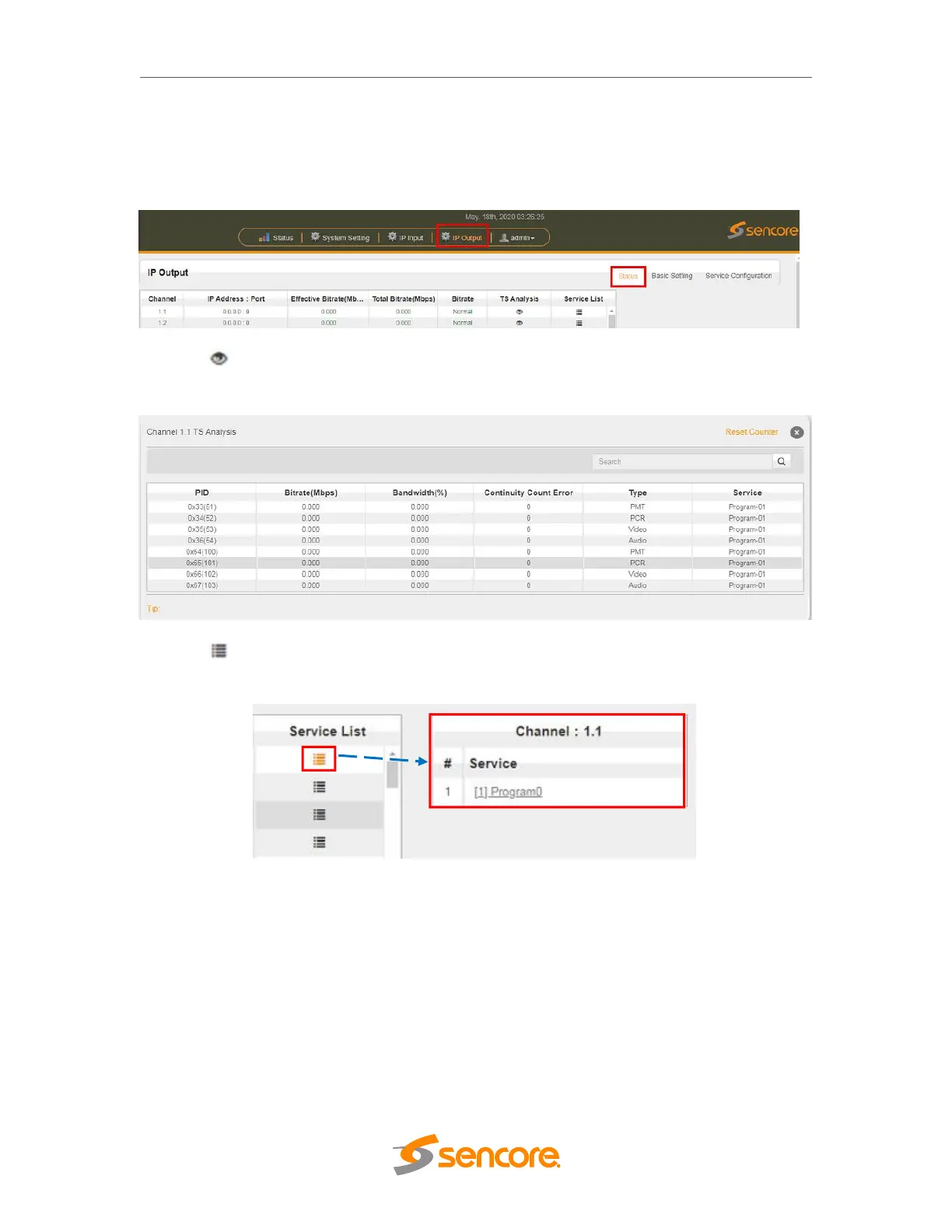

Clicking under TS Analysis button will display the information on the structure of the
transport stream.
Clicking under Service List will display information on the services included in the
transport stream. A list of services in the TS will be shown as the picture below.
Clicking on the service in the list will display its detailed information: PCR, PMT, Video
and Audio PID and Bitrate. See the picture below
