OmniHub 6/6D– User Manual
Page 33 of 182
Click the Apply button on the right side to make the change takes effect.

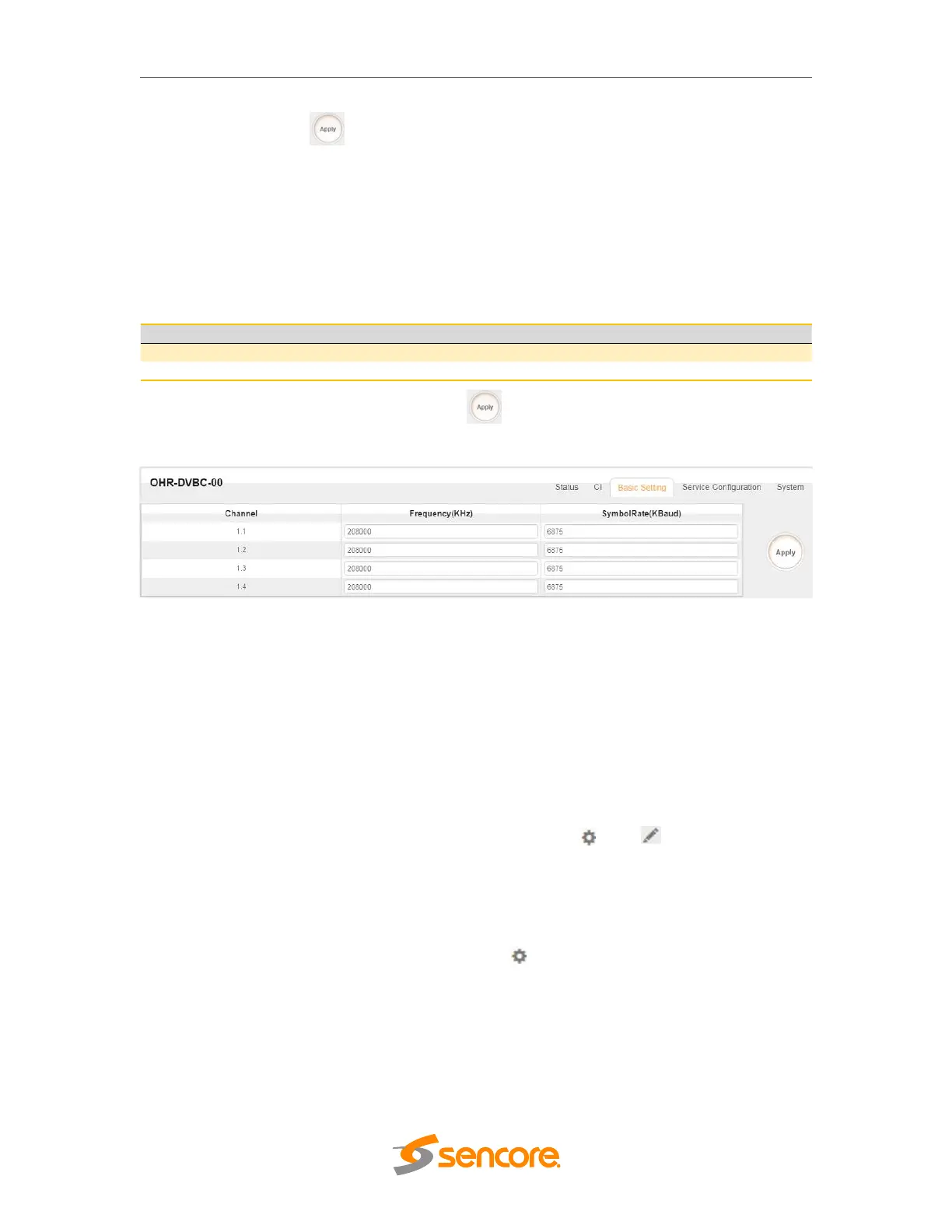

3.3.1.3 Module Settings
In this page you can input the parameters of the source signal. For DVBC input, it only
needs to have the Frequency and Symbol Rate of the source. The range of the
Frequency and Symbol Rate to be input on this page shows on the table below.
When the parameters are set, click on and check in the Status page if the
corresponding channel status is LOCKED.
3.3.1.4 Module Service Configurations
Service Configuration page is where you can manage the received services and output
them to their designated interface. The configuration for all modules in OmniHub 6/6D is
mostly same.
First, you need to scan the port on each LOCKED TS. Each port might be scanned
automatically or needed to be scanned manually when its source is changed.
After scanning each channel, you can start to configure the services. You need to click
Apply button after you configure service to CAM for descrambling, otherwise the
descrambling configuration will not be saved. Then you can choose the services to be
routed, you can output each service by clicking the icon and below “Destination
Settings”. You can route a whole stream or a service/s from the input channel toward the
available output channels (IP or RF). Two types of routing are possible.
1. Bypass mode. In this mode, you can route as whole input transport stream
towards an IP or RF output which will be occupied only by this stream. Any
attempt of routing other stream/service towards this channel will be an error. This
can only be done when you click the icon on the TS.
2. Multiplex mode is the counter part of the bypass mode. This mode allows the
administrator to perform the following operations:
a. Route a single service towards an output channel to create SPTS.
b. Route services towards a single output channel to create MPTS.
c. Route service/s AND stream/s from multiple channels towards a single
output channel to create MPTS.
Name
Range
Frequency (KHz)
48000~862000
Symbol Rate (KBaud)
3000~7000
