OmniHub
6/6D–
User
Manual
Page
94
of
182

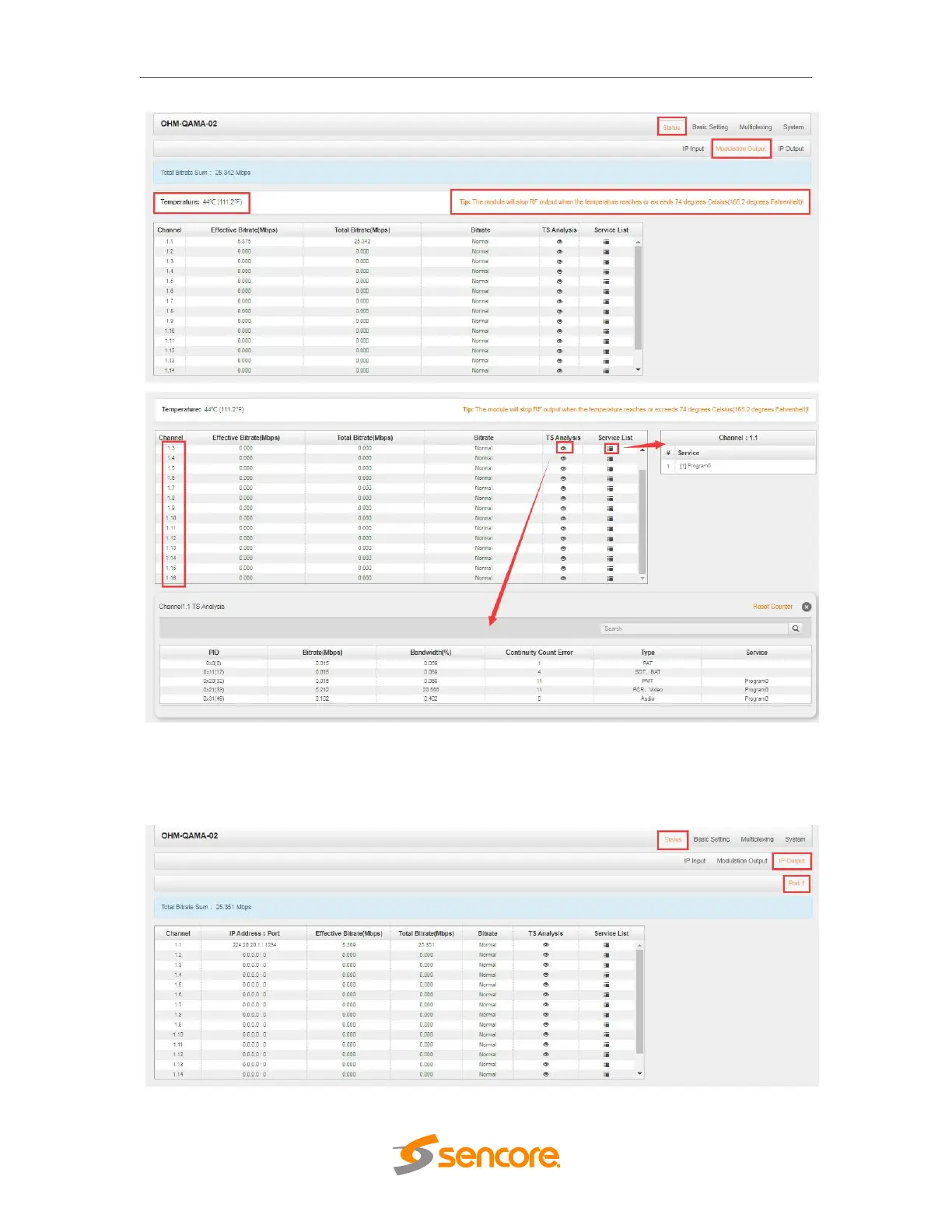

IP
Output
>
OHM-QAMA-02
status
also
shows
the
IP
output.
Just
like
the
I
P
Input,
t
his
shows
the
total
bitrate
and
ef
fective
bitrate
of
the
16
channels
respectivel
y.
The
TS
Analysis
and
Service
List
have
t
he
same
function
as
in
the
IP
input.
See
below
for
reference.
