OmniHub 6/6D– User Manual
Page 95 of 182
3.5.8.1.2 Module Basic Setting
OHM-QAMA-02 Basic Setting is where you can input the parameters for IP Input,
Modulation Output and IP Output.

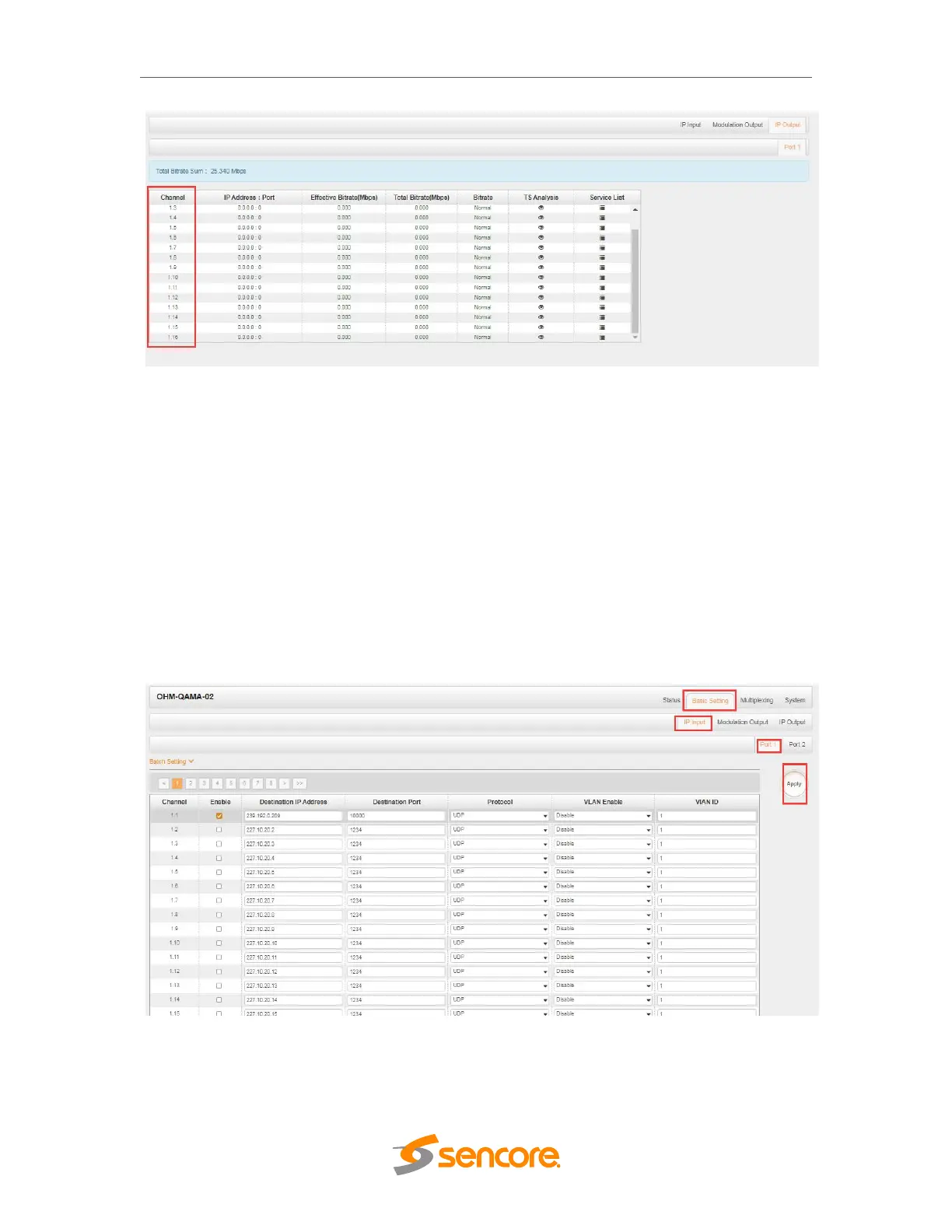

IP Input-Parameter Setting> On this page, there are three tabs where you can modify
the multicast IP, port and parameter of IP Input. There are Port 1, Port 2, and Batch
Setting. The input can accept Multicast or Unicast and support MPTS and SPTS.
Port 1 and Port 2 have same interface. It shows the 512 channels. Check the box under
Enable to enable a channel. Input the correct Multicast/Unicast IP address and IP port,
and select the correct Protocol for the source IP. Once done, click Apply for the
changes to take effect. See the image below for reference.
Batch Setting is where users can input the IP input parameters in batch. See the image
below for reference.
