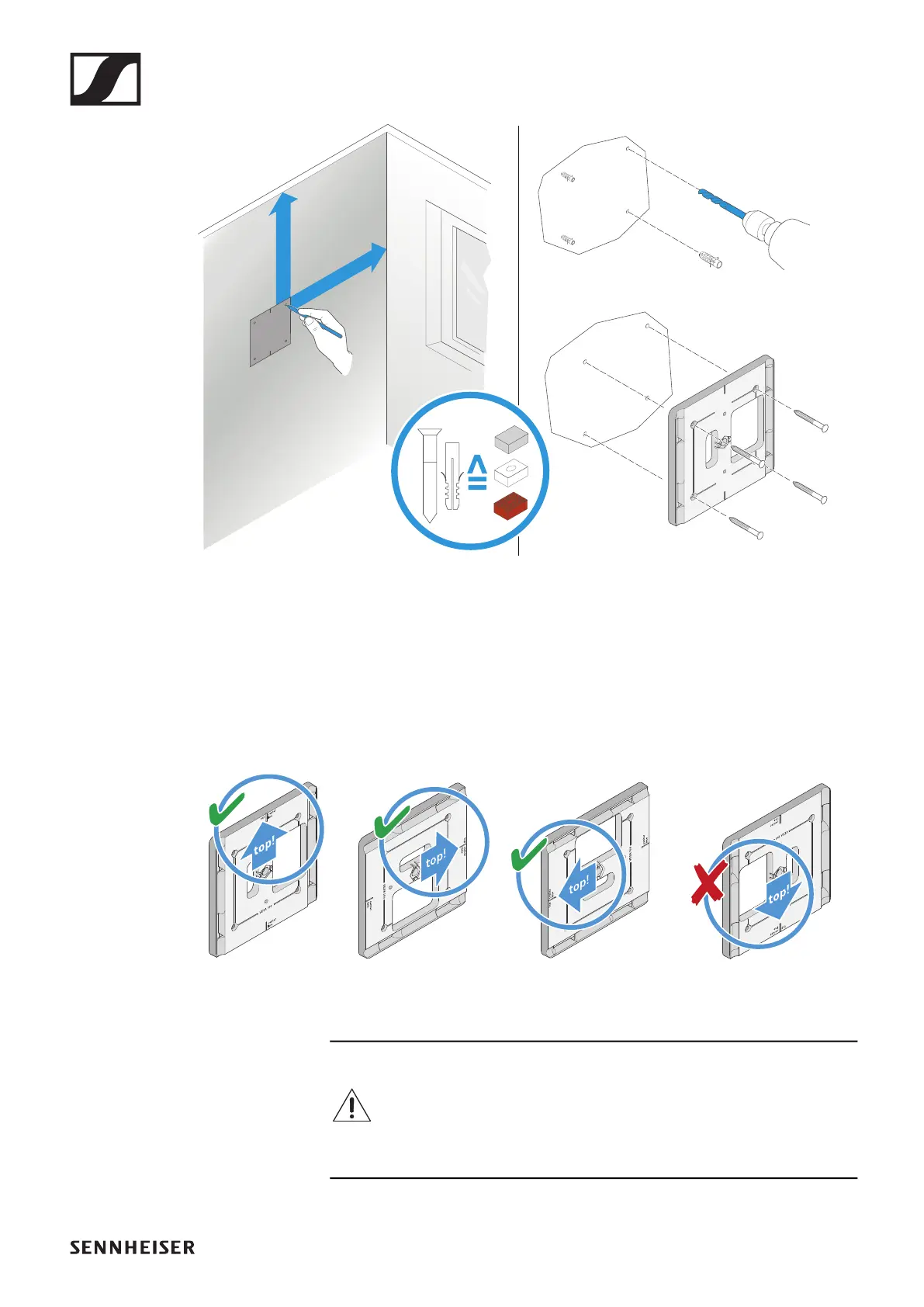

▷ Use the included drilling template to mark the drill holes for
wall mounting.
▷ Maintain a minimum distance of 1.5 m from other walls and
the ceiling.
▷ Screw the mounting frame to the wall using four suitable
screws and anchors.
▷ Make sure that the mounting frame is aligned correctly.
The top marking on the mounting frame must not point
downwards. Otherwise the receiver may fall out and be
damaged.
center
line
center
line
top
center
line
wall mount
VESA 100
center
line
>1,5 m>1.5 m>1,5 m>1,5 m
