SL MCR DW

102

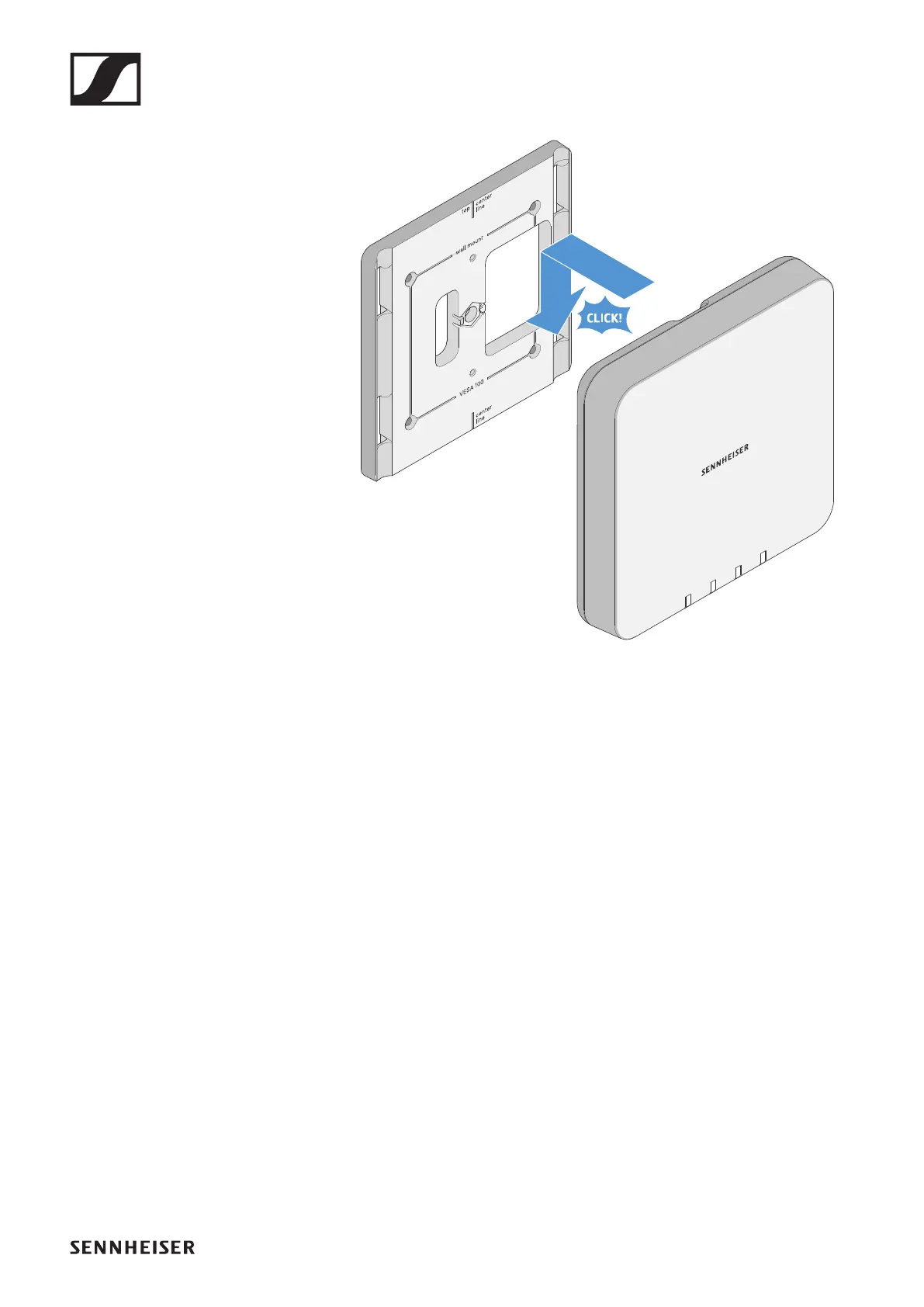

Insert the receiver into the mounting frame as shown until you

hear it click into place.
