SL MCR DW
106

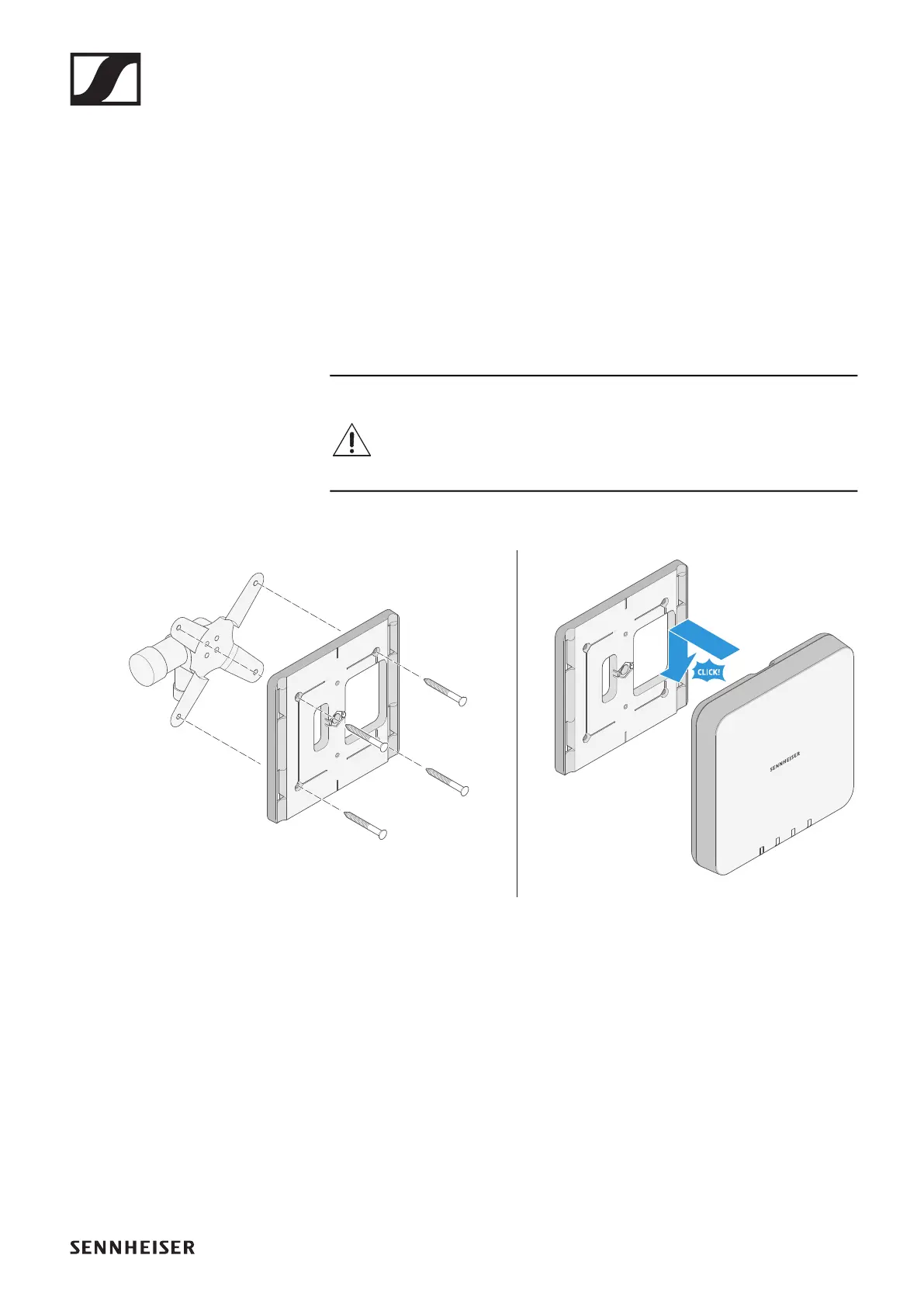

Mounting the receiver on a VESA mount
The holes in the mounting frame are positioned 100 mm apart
so that the mounting frame can be mounted on any VESA 100
mount.
▷ Screw the mounting frame onto the VESA mount as shown
using four suitable screws.
▷ Insert the receiver into the mounting frame as shown until
you hear it click into place.
Follow the installation and safety instructions from the
manufacturer of the VESA mount.
top
center
line
wall mount
VESA 100
center
line
top
center
line
wall mount
VESA 100
center
line
*
*Example of a VESA 100 mount
