The SL Boundary 114-S DW

153

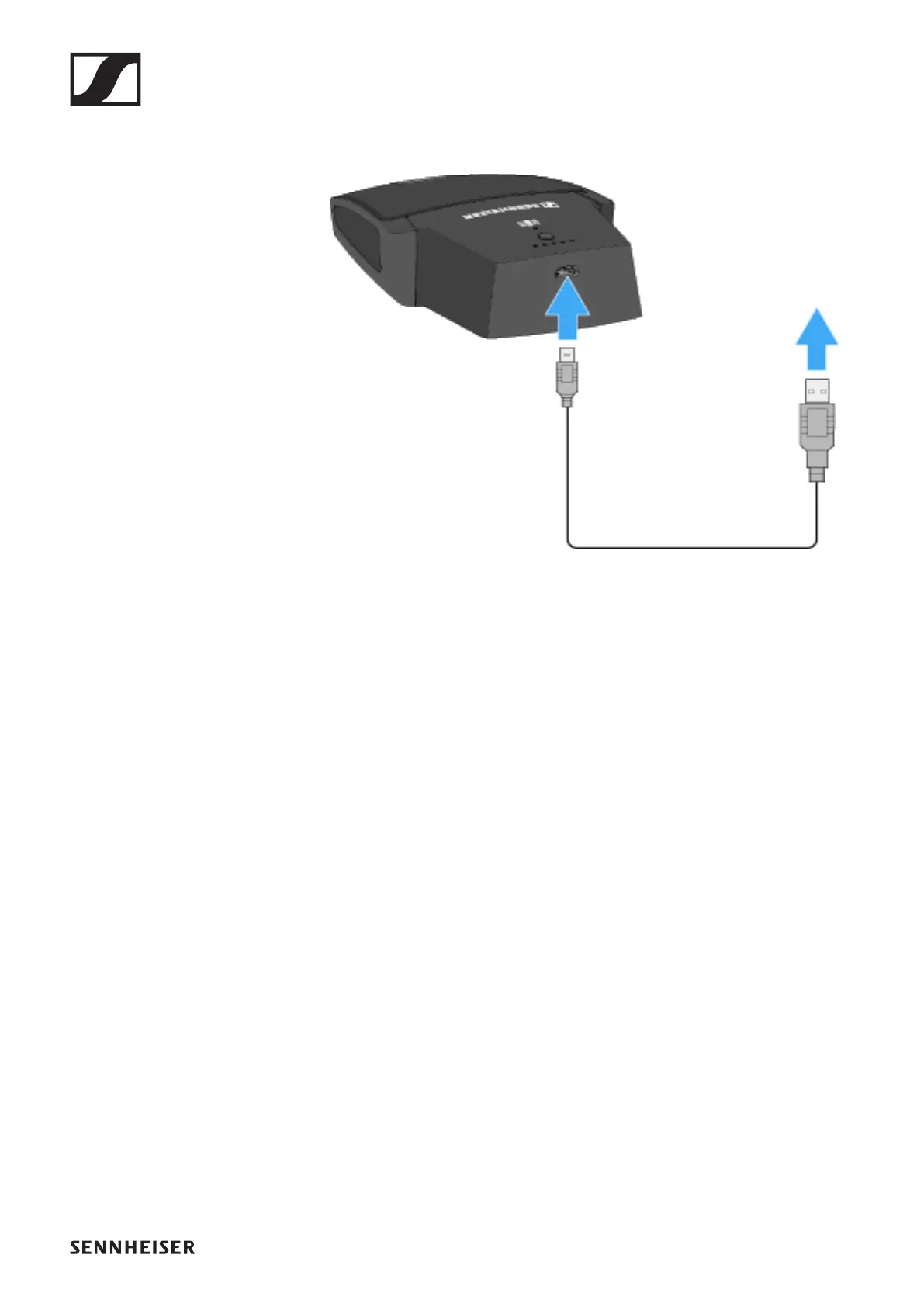

Charging the boundary microphone via USB

To charge the boundary microphone via USB:

►

▷ Connect the USB cable’s Micro-USB plug to the Micro-USB

socket of the boundary microphone.

▷ Plug the other end of the USB cable into a USB power sup-

ply unit.

The charge level LEDs indicate the charge level.
