The AWM 2 antenna wall mount
202
To mount the antenna wall mount to a microphone
stand

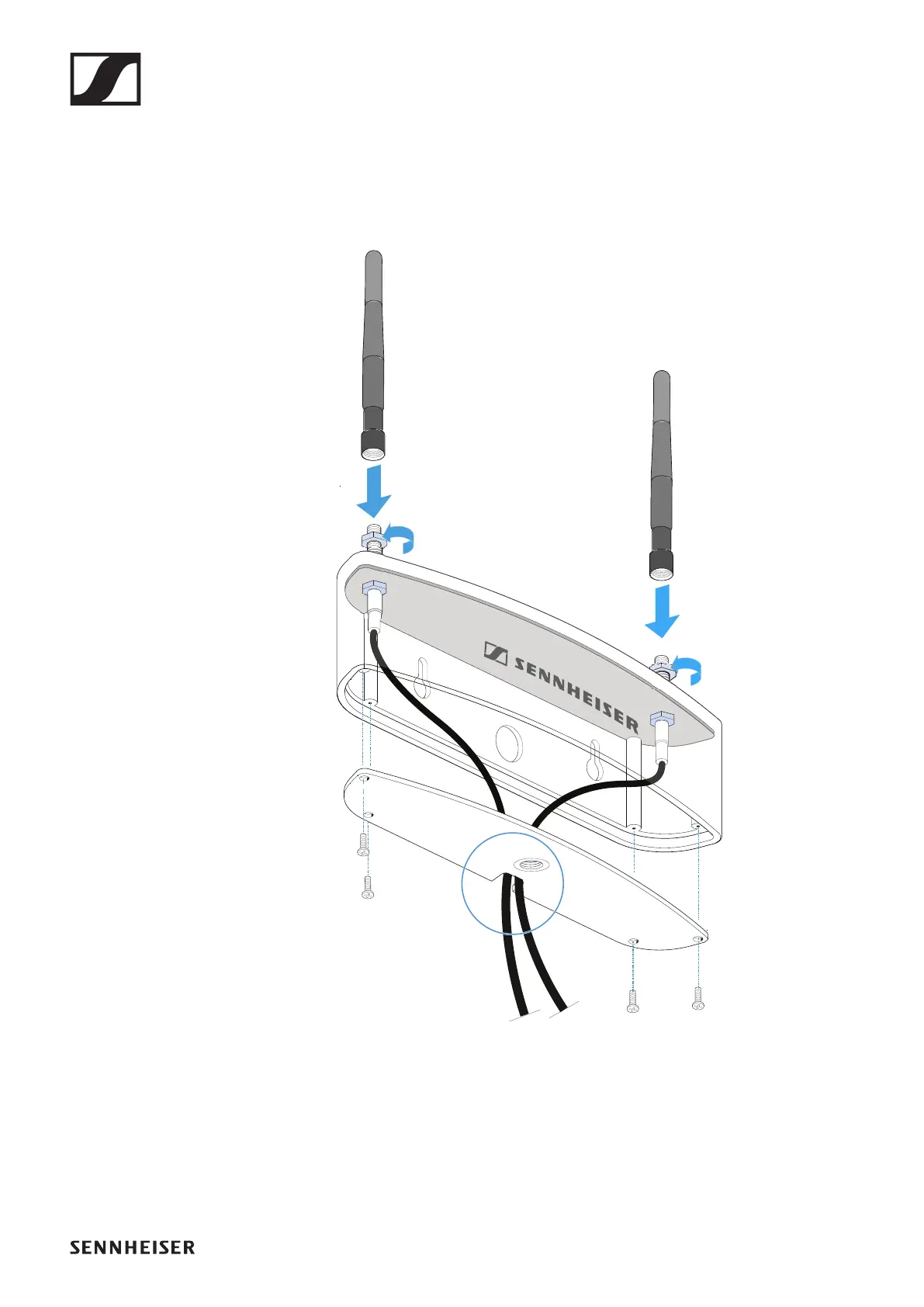

▷ Pass the antenna cable ends fitted with the R-SMA sockets
through the cable notch provided at the rear bottom edge
of the antenna housing.
►
▷ Do not kink the antenna cables and, when running the ca-
bles, make sure not to bend them beyond a bend radius of
43 mm.
▷ Smaller bend radiuses can cause cracks and breaks in the
cable, which may not be visible from the outside. This can
result in bad reception quality.
▷ Screw the sockets to the antenna holes using the supplied
washers and nuts.
