SL Rack Receiver DW
79
►

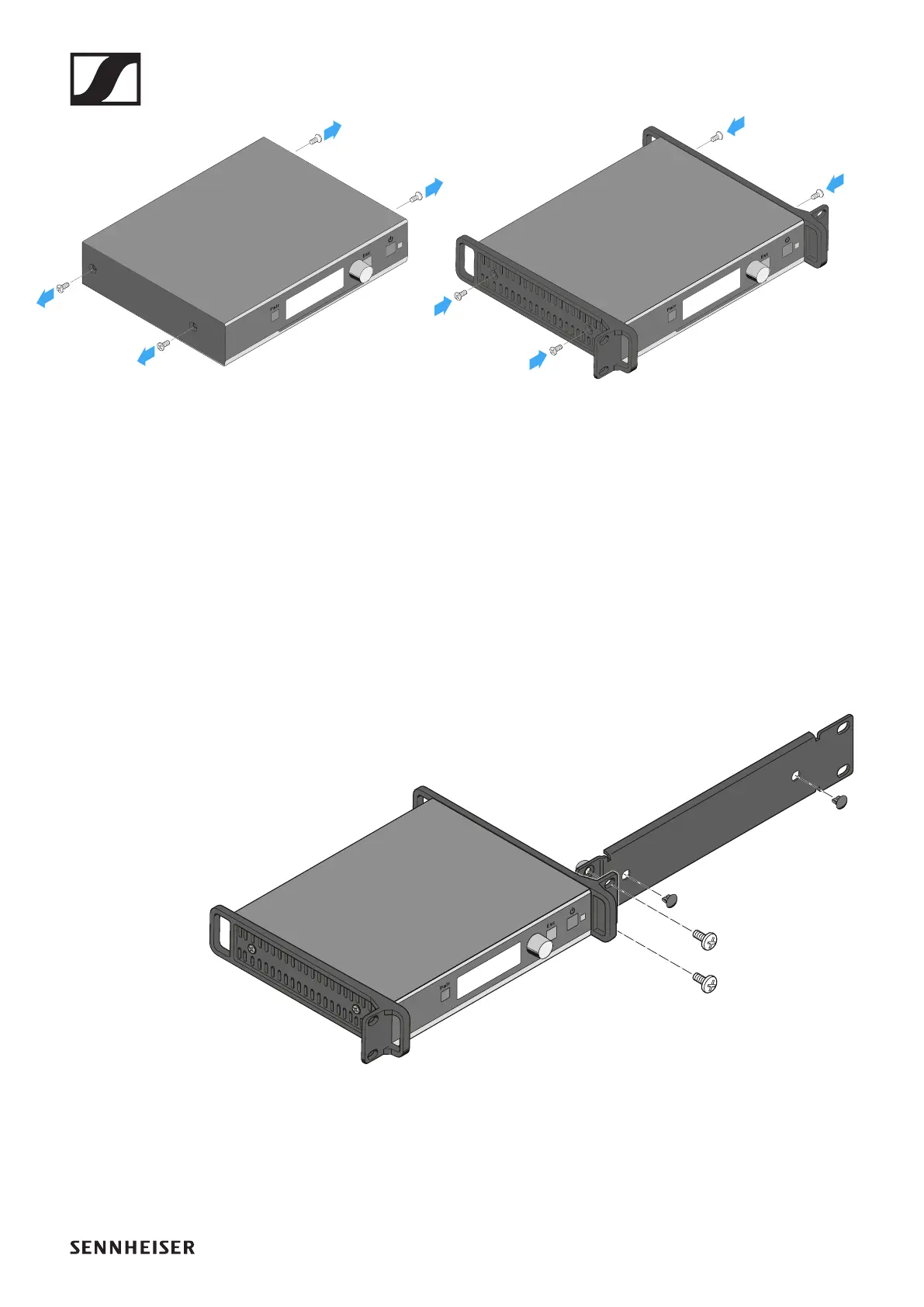

Installing the receiver in a rack
To install the receiver in a rack:
▷ Use the two supplied recessed head screws to secure the
blanking plate from the GA 4 mounting kit to the mounting
angle of the receiver as shown.
Make sure to use the correct side (the one with the round
holes) of the blanking plate to secure it to the mounting an-
gle.
►
▷ Only insert the two small covering caps into the antenna
holes if you do not wish to install the rod antennae at the
front of the rack.
▷ Slide the receiver with the attached mounting accessories
into a 19" rack.
