Connecting to the network (power supply and con-
figuration)
The PoE/Ctrl RJ-45 socket (Dante I) is used to both power the
receiver via Power over Ethernet and configure it using the
Sennheiser Control Cockpit software (see „Controlling and
monitoring the receiver via the network“).
▷ In your network you can either use a switch that provides
PoE or a PoE injector.
Analog Out
PoE/Ctrl
Reset
PoE
Analog Out
PoE/Ctrl
Reset
PoE/Ctrl
PoE/Ctrl
Control Cockpit clients
optional
optional
Control Cockpit
host PC (opt. client)
Media control client
LAN

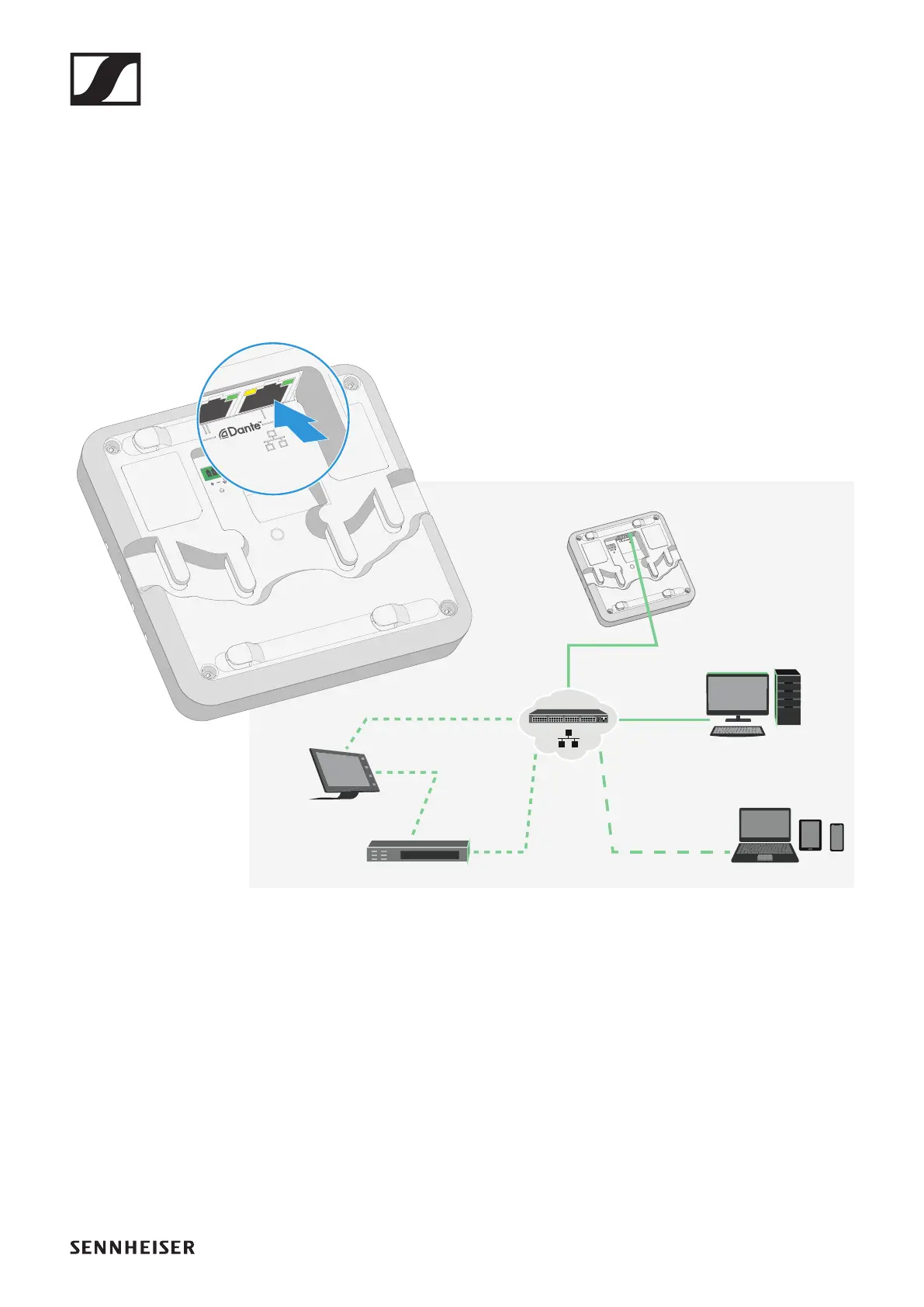

Application example:
LAN or WiFi
Media control server
LAN
or WiFi
