MX-M700N MAINTENANCE 9 – 12

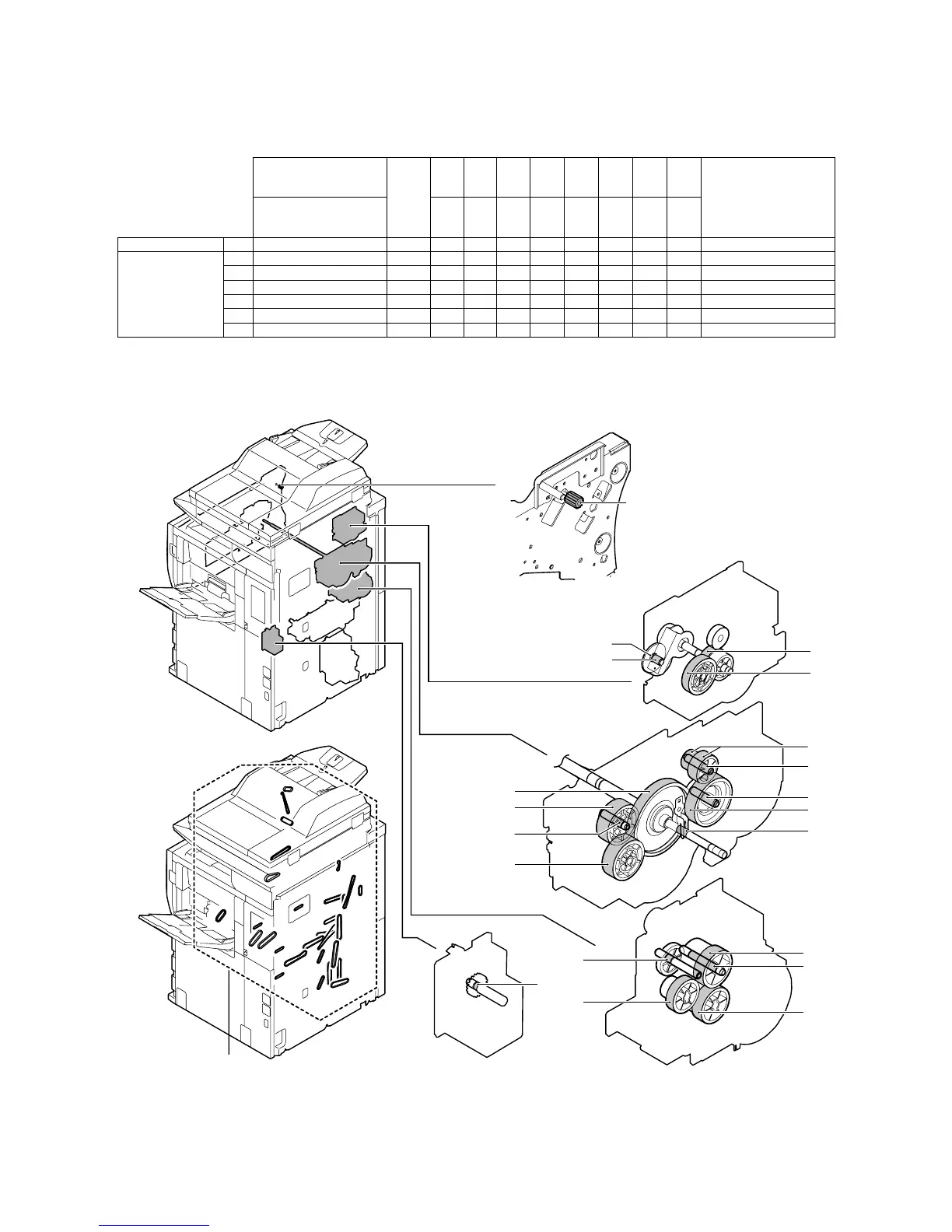

I. Drive section
✕ : Check {: Clean ▲: Replace U: Adjust ✩: Lubricate : Shift position
(Clean, replace, or adjust as necessary.)
55ppm (PM: 250K)
When
calling
250
K
500
K
750
K
1000
K
1250
K
1500
K
1750
K
2000
K
Remark/Refer to the
Parts Guide.
Block/Item No.
(Only the replacement
parts are described.)
62ppm/70ppm (PM: 300K)
300
K
600
K
900
K
1200
K
1500
K
1800
K
2100
K
2400
K
Unit name No. Part name
Drive section 1 Gear (Grease) ✕ ✩✩✩✩✩✩✩✩UKOG-0307FCZZ
2 Gear (Grease) ✕ ✩✩✩✩✩✩✩✩UKOG-0299FCZZ
3 Gear (Grease) ✕ ✩✩✩✩✩✩✩✩UKOG-0062FCZZ
4 Gear (Grease) ✕ ✩✩✩✩✩✩✩✩UKOG-0235FCZZ
5 Gear (Conductive grease) ✕ ✩✩✩✩✩✩✩✩UKOG-0012QSZZ
6Belts ✕✕✕✕✕✕✕✕
1
2
1
1
1
1
1
1
2
1
2
2
1
3
3
4
2
1
1
5
6
