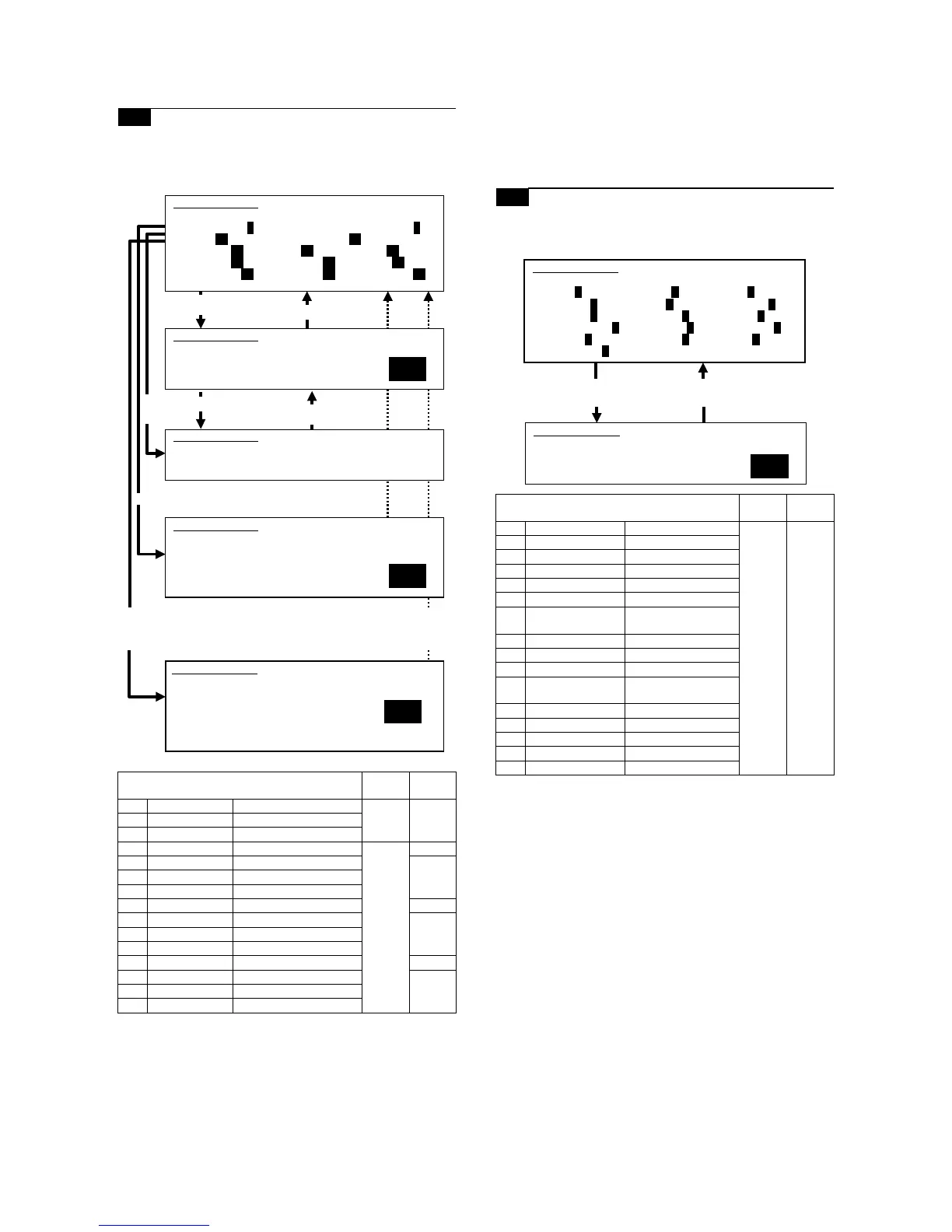

MX-M700N ADJUSTMENTS 6 – 32
9-E Adjust the copied image gamma in copy
mode
1) Set the original on the original table.
2) Go through the modes specified in Simulation 46-18.
3) Using the numeric keypad, select the number that corresponds
to the copy mode for which to make adjustments.
(Choose from numbers 3 to 14.)
4) Press the Start key.
5) Enter the gamma adjustment value using the numeric keypad.
A larger value provides larger gamma gradient and higher
image contrast.
6) Press the P or Start key. Pressing the Start key starts copy
(print) operation as well as applying the adjustment value.
7) Check the copied image gamma (copy density levels for low
and high density areas) (contrast).
Repeat steps 5 to 7 until an acceptable copied image is obtained.
9-F Adjust the copied image sharpness
1) Set the original on the original table.
2) Go through the modes specified in Simulation 46-31.
3) Using the numeric keypad, select the number that corresponds
to the copy mode for which to make adjustments.
(Choose from numbers 1 to 16.)
4) Press the Start key.
5) Adjust the sharpness by entering an appropriate value through
the numeric keypad.
A larger value provides higher sharpness.
6) Press the P or Start key.
Pressing the Start key starts copy (print) operation as well as
applying the adjustment value.
7) Check the copied image sharpness.
Repeat steps 5 to 7 until an acceptable copied image is obtained.
Select 2, and press
[START] key.
Press [START] key, or press
[SYSTEM SETTINGS] key.
Item
Setting
range
Default
0 TRAY SELECT Paper feed tray selection
1 PRINT START Print start (Default)
2 EXP LEVEL Exposure level selection
3 OC_AE AE mode (OC) 0 – 127 96
4 OC_CHARA Text mode (OC) 64
5 OC_MIX Text/Photo mode (OC)
6 OC_PHOTO Photo mode (OC)
7 SPF_AE AE mode (SPF) 96
8 SPF_CHARA Text mode (SPF) 64
9 SPF_MIX Text/Photo mode (SPF)
10 SPF_PHOTO Photo mode (SPF)
11 CIS_AE AE mode (CIS) 96
12 CIS_CHARA Text mode (CIS) 64
13 CIS_MIX Text/Photo mode (CIS)
14 CIS_PHOTO Photo mode (CIS)
64
1
SIMULATION 46-18
GAMMA SETUP(COPIER). SELECT 1-14, AND PRESS START.
0.TRAY SELECT 1 1.PRINT START 2.EXP LEVEL 1
3.OC_AE 64 4.OC_CHARA 5.OC_MIX 64
6.OC_PHOTO 64 7.SPF_AE 64 8.SPF_CHARA 64
9.SPF_MIX 64 10.SPF_PHOTO 64 11.CIS_AE 64
12.CIS_CHARA 64 13.CIS_MIX 64 14.CIS_PHOTO 64
SIMULATION 46-18
GAMMA SETUP. INPUT VALUE 0-127, AND PRESS START.
3.OC_AE
SIMULATION 46-18
GAMMA SETUP. NOW PRINTING.
SIMULATION 46-18
GAMMA SETUP. SELECT 1-6, AND PRESS START.
(FEED TRAY)
1.TRAY1 2.TRAY2 3.TRAY3 4.TRAY4
5.BPT 6.LCC
Select other than0-2,and
press [START] key.
Press [SYSTEM SETTINGS] key.
Select 1,
and press
[START] key.
Press [START] key.
Press [SYSTEM SETTINGS]
key, or terminate copying.
Select 0, and press [START] key.
1
SIMULATION 46-18
GAMMA SETUP.
SELECT 3-14, AND PRESS START.
(EXP.LEVEL SELECT)
3.AUTO 4.1.0 5.2.0
6.3.0 7.4.0 8.5.0
9.AUTO(H) 10.1.0(H) 11.2.0(H)
12.3.0(H) 13.4.0(H) 14.5.0(H)
Press [START] key. Press [SYSTEM SETTINGS] key.
Item
Setting
range
Default
1 OC_AE AE mode (OC) 1 – 5 3
2 OC_CHARA Text mode (OC)
3 OC_MIX Text/Photo mode (OC)
4 OC_PHOTO Photo mode (OC)
5 SPF1_AE AE mode (SPF1)
6 SPF1_CHARA Text mode (SPF1)
7 SPF1_MIX Text/Photo mode
(SPF1)
8 SPF1_PHOTO Photo mode (SPF1)
9 SPF2_AE AE mode (SPF2)
10 SPF2_CHARA Text mode (SPF2)
11 SPF2_MIX Text/Photo mode
(SPF2)
12 SPF2_PHOTO Photo mode (SPF2)
13 CIS_AE AE mode (CIS)
14 CIS_CHARA Text mode (CIS)
15 CIS_MIX Text/Photo mode (CIS)
16 CIS_PHOTO Photo mode (CIS)
SIMULATION 46-31
SHARPNESS LEVEL SETUP. SELECT 1-12, AND PRESS START.
1.OC_AE 3 2.OC_CHARA 3 3.OC_MIX 3
4.OC_PHOTO 3 5.SPF_AE 3 6.SPF_CHARA 3
7.SPF_MIX 3 8.SPF_PHOTO 3 9.SPF2_AE 3
10.SPF2_CHARA 3 11.SPF2_MIX 3 12.SPF2_PHOTO 3
13.CIS_AE 3 14.CIS_CHARA 3 15.CIS_MIX 3
16.CIS_PHOTO 3
䋳
SIMULATION 46-31
SHARPNESS LEVEL SETUP. INPUT VALUE 0-3, AND PRESS
START.
1.OC_AE
