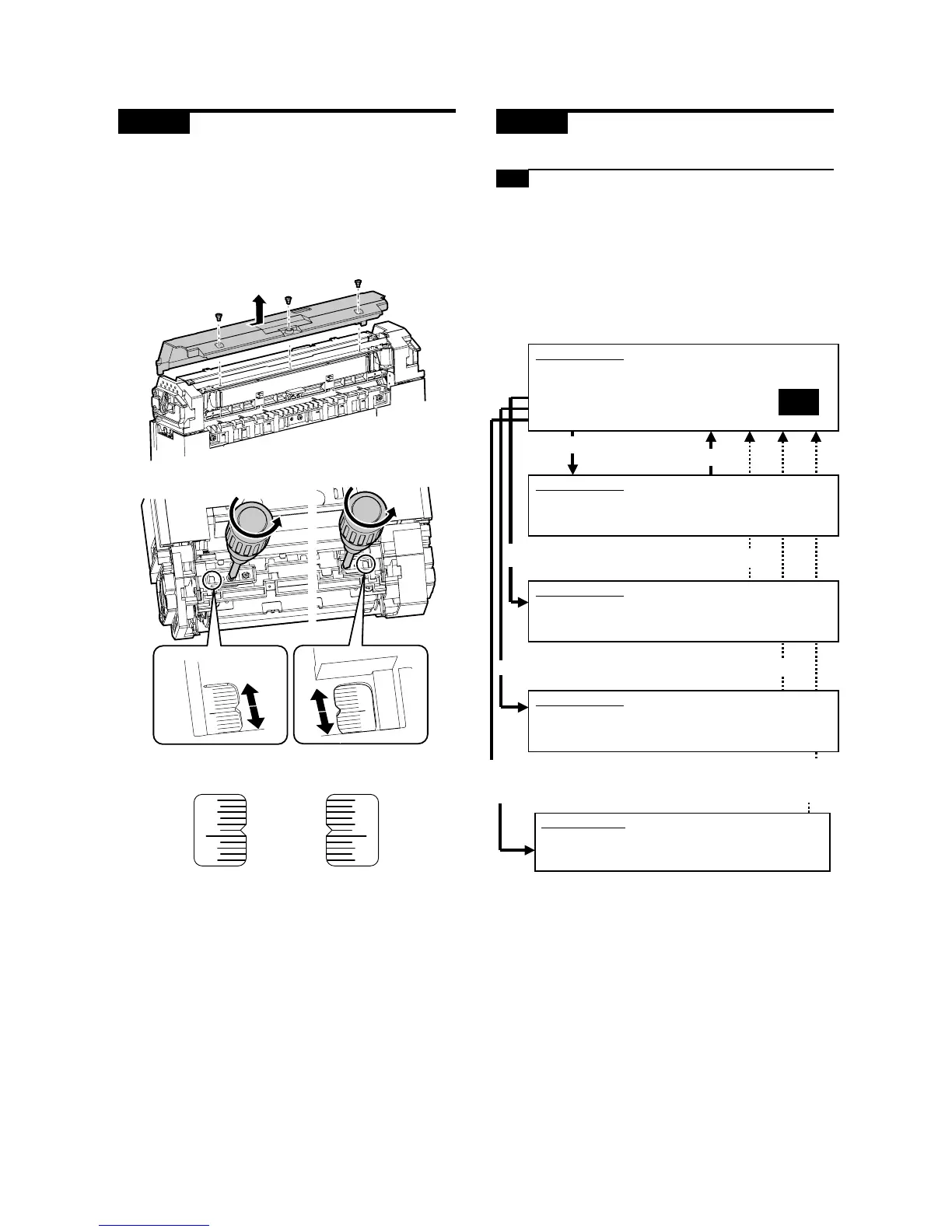

MX-M700N ADJUSTMENTS 6 – 39
ADJ 13 Adjusting the fusing paper
guide position
This adjustment is needed in the following situations:
* Paper is jammed in or around the fusing section.
* Imperfect images, deformed images, or wrinkles are produced in
the paper lead edge section or the rear edge section.
Adjust the fusing paper guide position by loosening the fusing
paper guide fixing screws and the sliding the fusing paper guide in
the arrow direction.
When shipping, it is fixed to the position which is one scale
(0.5mm) over the center.
ADJ 14 Adjusting the paper size
detection
14-A Adjust the paper width sensor for the
manual paper feed tray
This adjustment is needed in the following situations:
* The manual paper feed tray section has been disassembled.
* The manual paper feed tray unit has been replaced.
* U2 trouble has occurred.
* The PCU PWB has been replaced.
* The EEPROM of the PCU PWB has been replaced.
1) Go through the modes specified in Simulation 40-2.
2) Open the manual paper feed guide to the maximum width
position.
Select 4 and press
[START] key.
Press [START] key, or press
[SYSTEM SETTINGS] key.
SIMULATION 40-2
BYPASS TRAY ADJUSTMENT. SELECT 1-4, AND PRESS START.
1. MAX. POSITION
2. POSITION 1
3. POSITION 2
4. MIN. POSITION
1
SIMULATION 40-2
BYPASS TRAY ADJUSTMENT.
MAX. POSITION ··· COMPLETE (or "ERROR")
SIMULATION 40-2
BYPASS TRAY ADJUSTMENT.
POSITION 1 ··· COMPLETE (or "ERROR")
SIMULATION 40-2
BYPASS TRAY ADJUSTMENT.
POSITION 2 ··· COMPLETE (or "ERROR")
Select 1, and press [START] key.
Press [SYSTEM SETTINGS] key.
Select 2, and
press [START] key.
Press [SYSTEM SETTINGS] key.
Select 3, and press [START] key.
Press [SYSTEM SETTINGS] key.
To Next Page
