MX-M700N EXTERNAL VIEW AND INTERNAL STRUCTURE 5 – 3

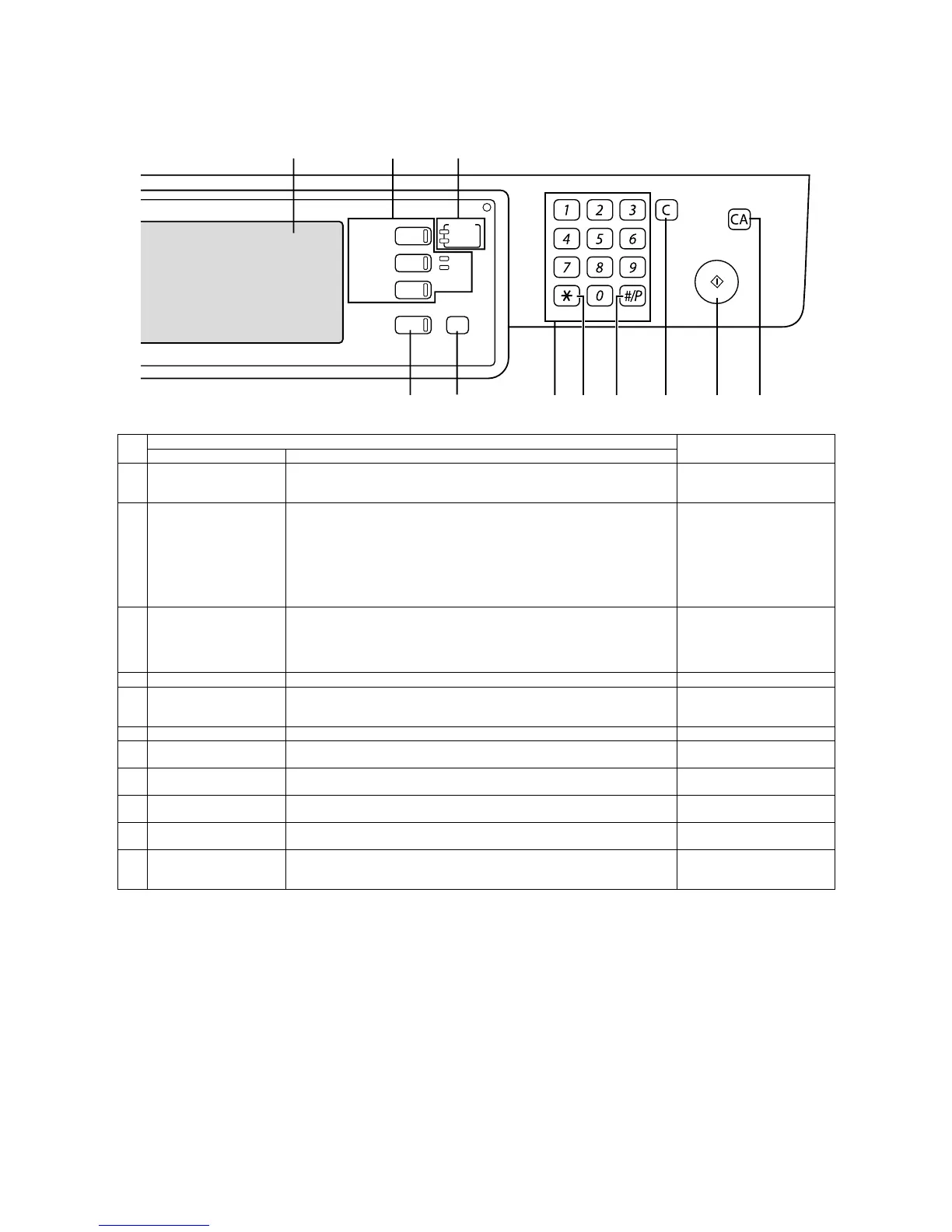

C. Operation, display parts
*1: When the network scanner option is installed.
*2: When the fax option is installed.
*3: When the Internet fax option is installed.
No.
Parts
NOTE
Name Funciton/Operation
1 Touch panel The machine status, messages and touch keys are displayed on the panel. The
document filing, copy, network scanner
*1
, and fax
*2
, Internet fax
*3
functions are used
by switching to the screen for the desired function. See the following page.
2 Mode select keys and
indicators
Use to change modes and the corresponding display on the touch panel.
[DOCUMENT FILING] key
Press to select the document filing mode.
[IMAGE SEND] key/LINE indicator/DATA indicator
Press to change the display to network scanner mode
*1
, fax mode
*2
or Internet fax
mode
*3
.
[COPY] key
Press to select the copy mode.
3 PRINT mode indicators • READY indicator
Print data can be received when this indicator is lit.
• DATA indicator
Lights up or blinks when print data is being received. Also lights up or blinks when
printing is being performed.
4 [JOB STATUS] key Press to display the current job status.
5 [SYSTEM SETTINGS] key This is used to store, edit, and delete user names and folder names for the document
filing function, and to configure the administrator settings and printer configuration
settings.
6 Numeric keys Use to enter number values for various settings.
7 [*] key ([LOGOUT] key) This key is used in copy mode, document filing mode, network scanner mode
*1
, fax
mode
*2
, and Internet fax mode
*3
.
8 [#/P] key This is used as a program key when using the copy function, and to dial when using
the fax function
*2
.
9 [C] key (Clear key) This key is used in copy mode, document filing mode, network scanner mode
*1
, fax
mode
*2
, and Internet fax mode*3.
10 [START] key Use this key to start copying in copy mode, scan a document in network scanner
mode
*1
, or scan a document for transmission in fax mode
*2
or Internet fax mode*3.
11 [CA] key (Clear all key) This key is used in copy mode, document filing mode, network scanner mode*1, fax
mode
*2
, and Internet fax mode
*3
.
Use the key to cancel settings and perform an operation from the initial machine state.
LOGOUT
DOCUMENT
FILING
IMAGE SEND
COPY
JOB STATUS
SYSTEM
SETTINGS
LINE
DATA
PRINT
READY
DATA
123
4 5 6 7 8 9 10 11
