MX-M700N DSPF SECTION C – 11
c. DSPF paper feed clutch
d. DSPF document tray upper limit detector
e. DSPF document upper limit detector
f. DSPF cover switch
g. DSPF document paper pass detector 1

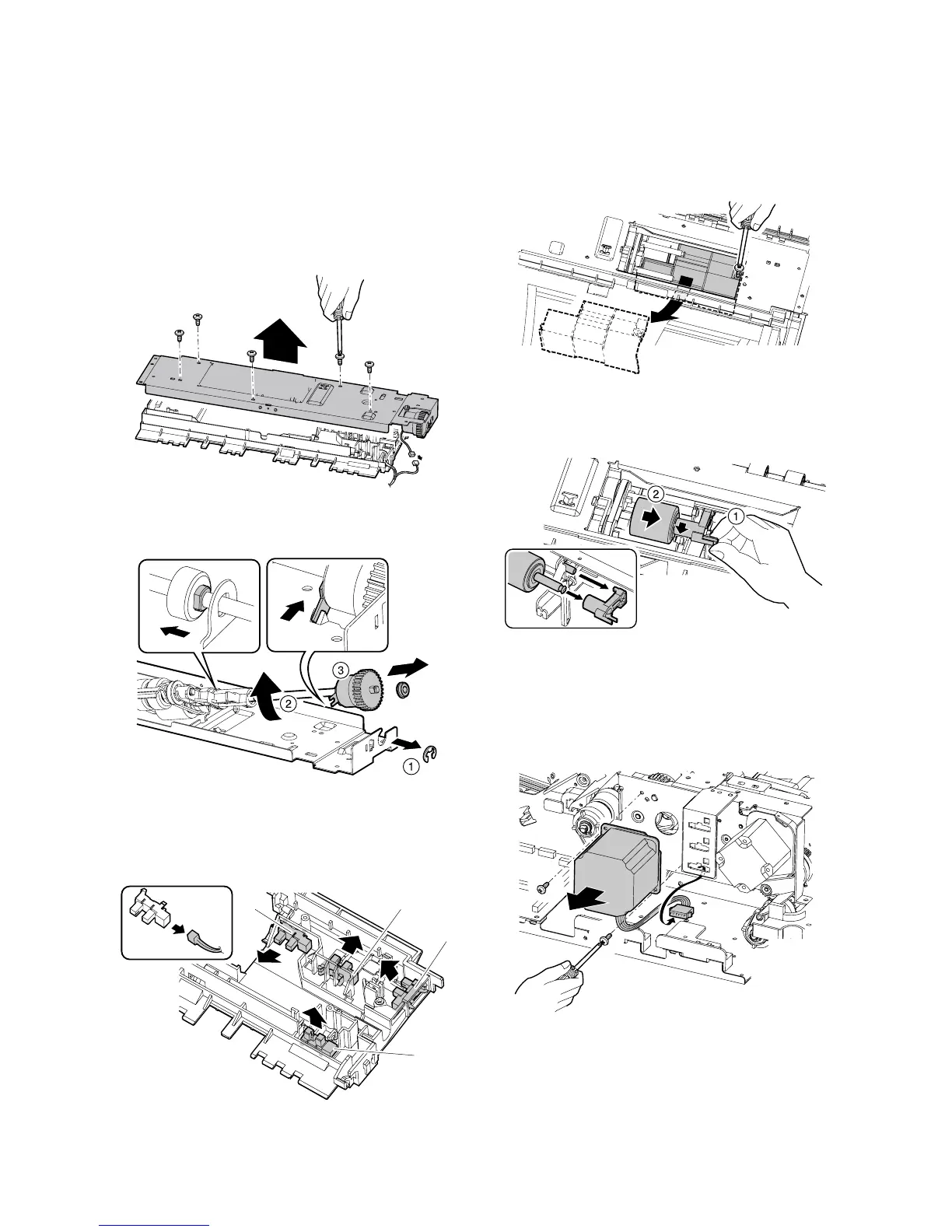

1) Remove the cabinet. (See “A-(1)-a. Cabinet”)
2) Remove the document feed tray unit.
(See “C-(1) Paper feed unit”)
3) Remove the cover.
4) Remove the E-ring, and remove the DSPF the paper feed
clutch.
5) Disconnect the connector, and remove the DSPF document
tray upper limit detector (A), the DSPF document upper limit
detector (B), the DSPF cover switch (C), and the DSPF docu-
ment paper pass detector 1 (D).
(2) Others
a. Separation roller
1) Remove the paper feed roller and the pickup roller.
(See “C-(1)-a. Paper feed roller” and “C-(1)-b. Pickup roller”)
2) Remove the cover.
3) Unhook the claw to remove the support. Remove the reverse
roller.
[Caution when attaching]
• Rotate the roller into the pin slot.
b. DSPF paper feed/paper transport motor
1) Remove the rear cover. (See “A-(1)-a. Cabinet”)
2) Remove the DSPF paper feed/paper transport motor.
C
D
B
A
To Next Page
