MX-M700N EXTERNAL VIEW AND INTERNAL STRUCTURE 5 – 16
J. Fan motor
Code
Signal
name
Name Type Function/Operation NOTE
CFM-DC1 CFM-DC1 Power cooling fan motor DC brush-less
motor
Cools the DC power unit.
CFM-DC2 CFM-DC2 Power cooling fan motor DC brush-less
motor
Cools the DC power unit.
CFM-DV CFM-DV Developing section cooling fan motor DC brush-less
motor
Cools the developing section. PWM
control
CFM-HDD CFM-HDD HDD cooling fan motor DC brush-less
motor
Cools the HDD. PWM
control
CFM-ICU CFM-ICU Controller cooling fan motor DC brush-less
motor
Cools the controller. PWM
control
CFM-R1 CFM-R1 Process cooling fan motor 1 (LSU/process section) DC brush-less
motor
Cools the LSU/ process section. PWM
control
CFM-R2 CFM-R2 Process cooling fan motor 2 (LSU/process section) DC brush-less
motor
Cools the LSU/ process section. PWM
control
CFM-R3 CFM-R3 Process cooling fan motor 3 (LSU/process section) DC brush-less
motor
Cools the LSU/ process section. PWM
control
CFM-U1 CFM-U1 Fusing section cooling fan motor 1
(Paper exit/duplex (ADU) section) (Top surface)
DC brush-less
motor
Exhaust heat from the fusing section. PWM
control
CFM-U2 CFM-U2 Fusing section cooling fan motor 2
(Paper exit/duplex (ADU) section) (Paper exit rear side)
DC brush-less
motor
Exhaust heat from the fusing section. PWM
control
CFM-U3 CFM-U3 Fusing section cooling fan motor 3
(Paper exit/duplex (ADU) section) (Top surface)
DC brush-less
motor
Exhaust heat from the fusing section. PWM
control
CFM-U4 CFM-U4 Fusing section cooling fan motor 4
(Paper exit/duplex (ADU) section) (Paper cooling fan motor)
DC brush-less
motor
Cools paper which is discharged to the
inner tray.
PWM
control
SPFFAN SPFFAN DSPF fan motor DC brush-less
motor
Exhausts heat generated by the motor
clutch in the DSPF.
PWM
control
VFM-EX1 VFM-EX1 Process exhaust fan motor 1 (Front side) DC brush-less
motor
Exhaust ozone and heat from the process
section.
PWM
control
VFM-EX2 VFM-EX2 Process exhaust fan motor 2 (Center) DC brush-less
motor
Exhaust ozone and heat from the process
section.
PWM
control
VFM-EX3 VFM-EX3 Process exhaust fan motor 3 (Rear side) DC brush-less
motor
Exhaust ozone and heat from the process
section.
PWM
control
VFM-BKL VFM-BKL Process exhaust fan motor 4 DC brush-less
motor
Exhaust ozone and heat from the process
section.
PWM
control
VFM-BKR VFM-BKR Process exhaust fan motor DC brush-less
motor
Exhaust heat from the fusing section. PWM
control
VFM-BKU VFM-BKU Paper cooling fan motor DC brush-less
motor
Exhaust heat from paper in the inner tray. PWM
control

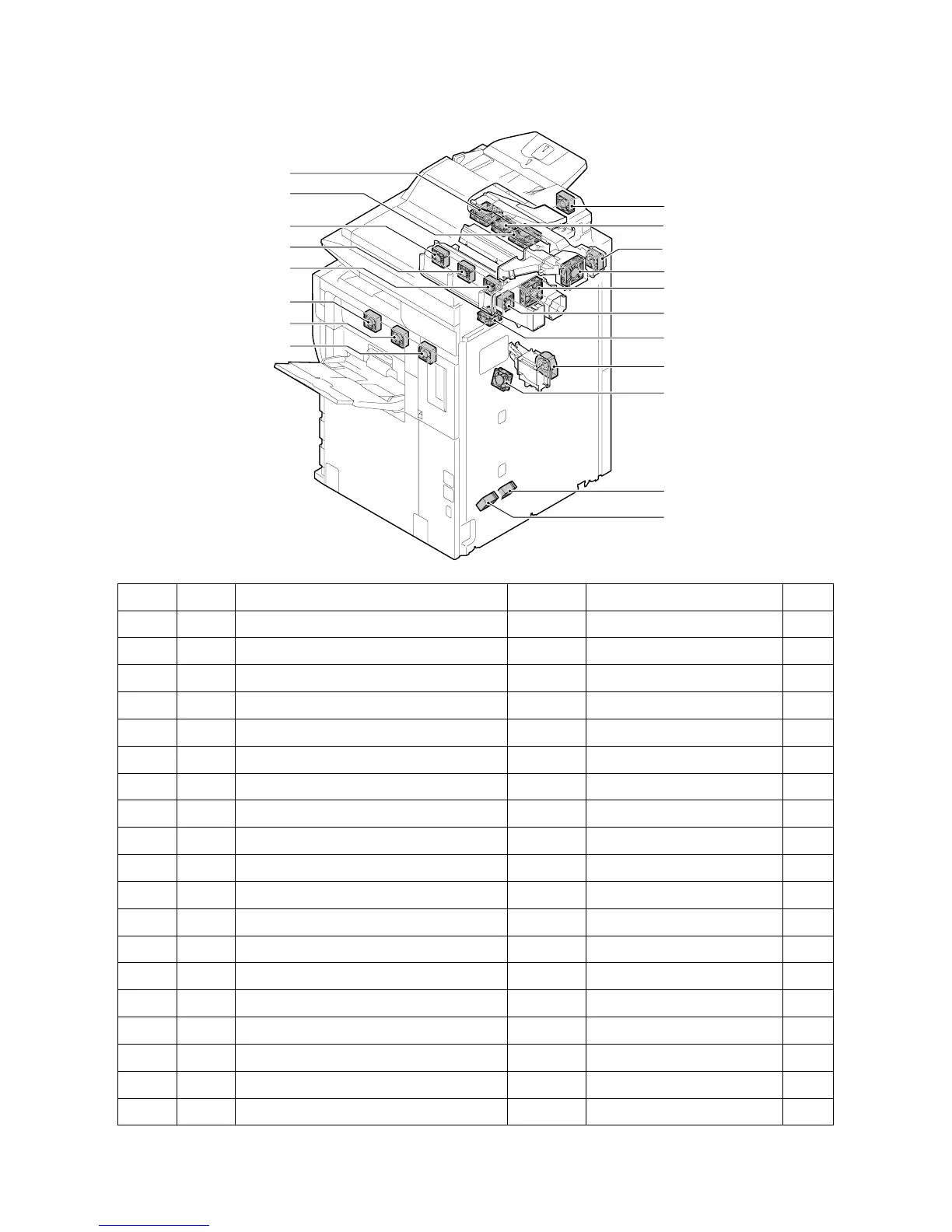

CFM-HDD
CFM-DV
SPFFAN
VFM-BKU
CFM-U2
CFM-U4
VFM-BKR
CFM-ICU
CFM-DC1
CFM-DC2
VFM-BKL
CFM-R1
CFM-R2
CFM-R3
CFM-U3
VFM-EX1
VFM-EX2
VFM-EX3
CFM-U1
