- 125 -

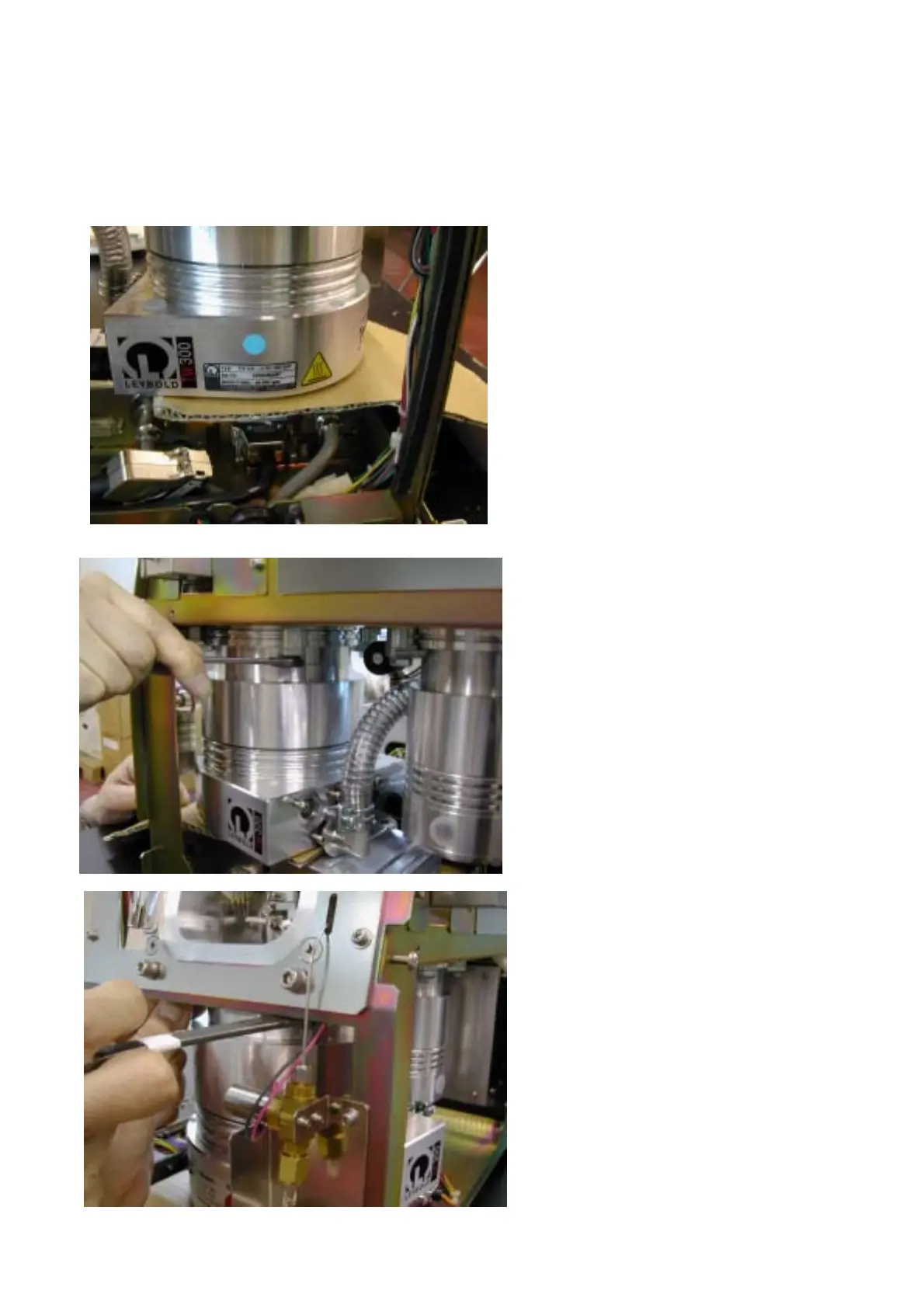

8. Remove TW300.
Put cardboard between the TW300 main body and the power unit. (This procedure will make the
later work easier.)
Loosen gradually the diagonal 4 fixing screws.
(Do not remove the screws at this step.)
The front-left side screw can be loosened by
putting the wrench into clearance, as shown
in the picture. Do not remove the SUS tube
from SI solenoid valve.
