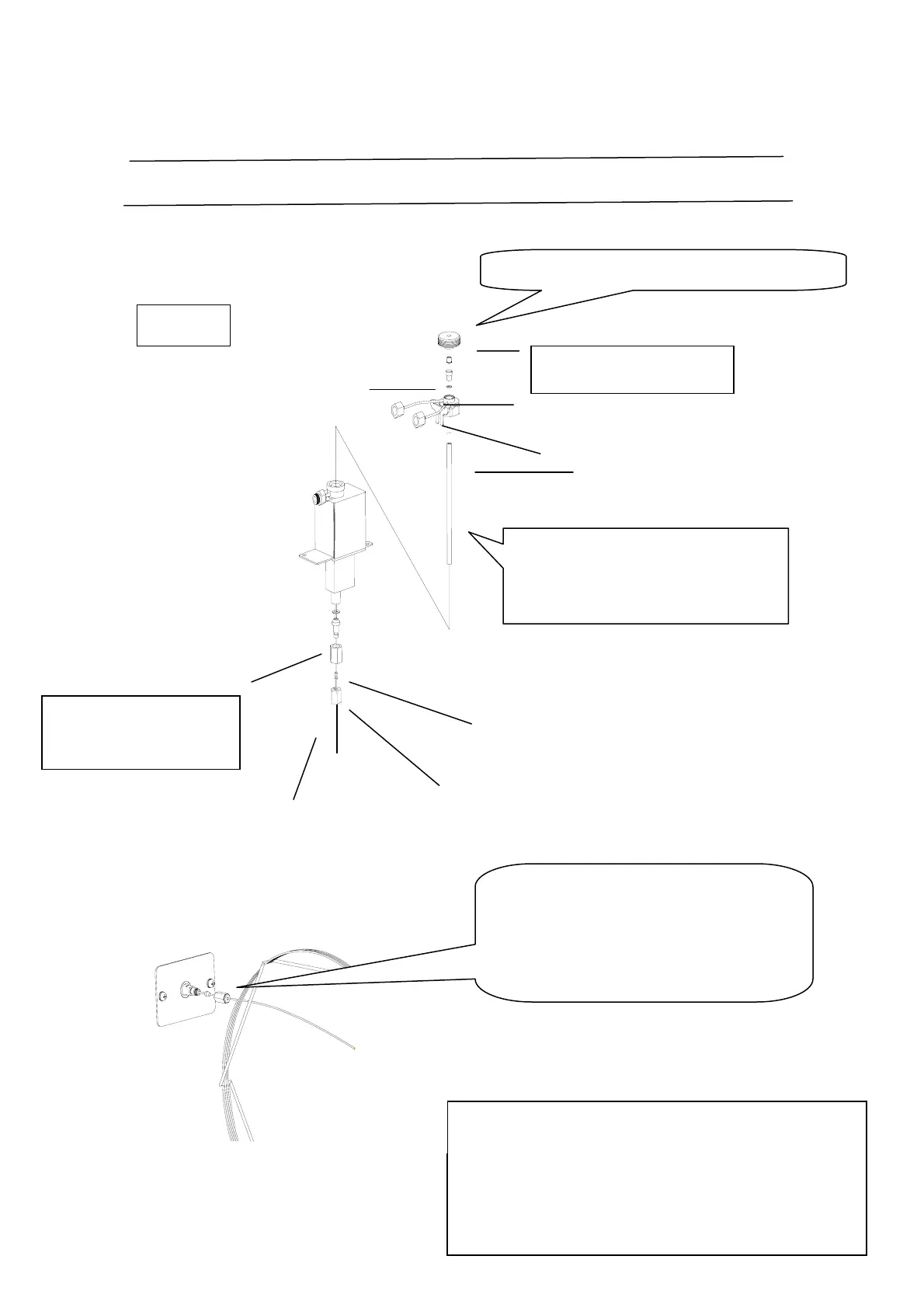

Description of Parts
10. GC Unit
Needle guide
Supelco septum
221-35507-01
O-ring
Glass insert (silane finished, for
SPLITLESS mode) 221-48876-03
(set of 5)
Spacer
Capillary nut 670-11009
Ferrule
Capillary adapter (nipple, MS) 225-04156
Au packing 221-48990
Au packing
221-49065-91 (set of 5)
The same Vespel ferrules are used for the
GCMS-QP2010 at both the inj side and interface.
670-15003-03 for 0.25mm ID
670-15003-04 for 0.32mm ID
670-15003-05 for 0.53mm ID
Hand tighten, then release one half-turn.
Se
p
tum fixin
g
nut
INJ Unit
Hand tighten the capillary nut, and
then tighten one half-turn with a
spanner.
After being used a few times, the ferrule
can deform, causing leaks or damage to
the column.
