Shimadzu PDA-7000 User Manual

5 Maintenance
5-15

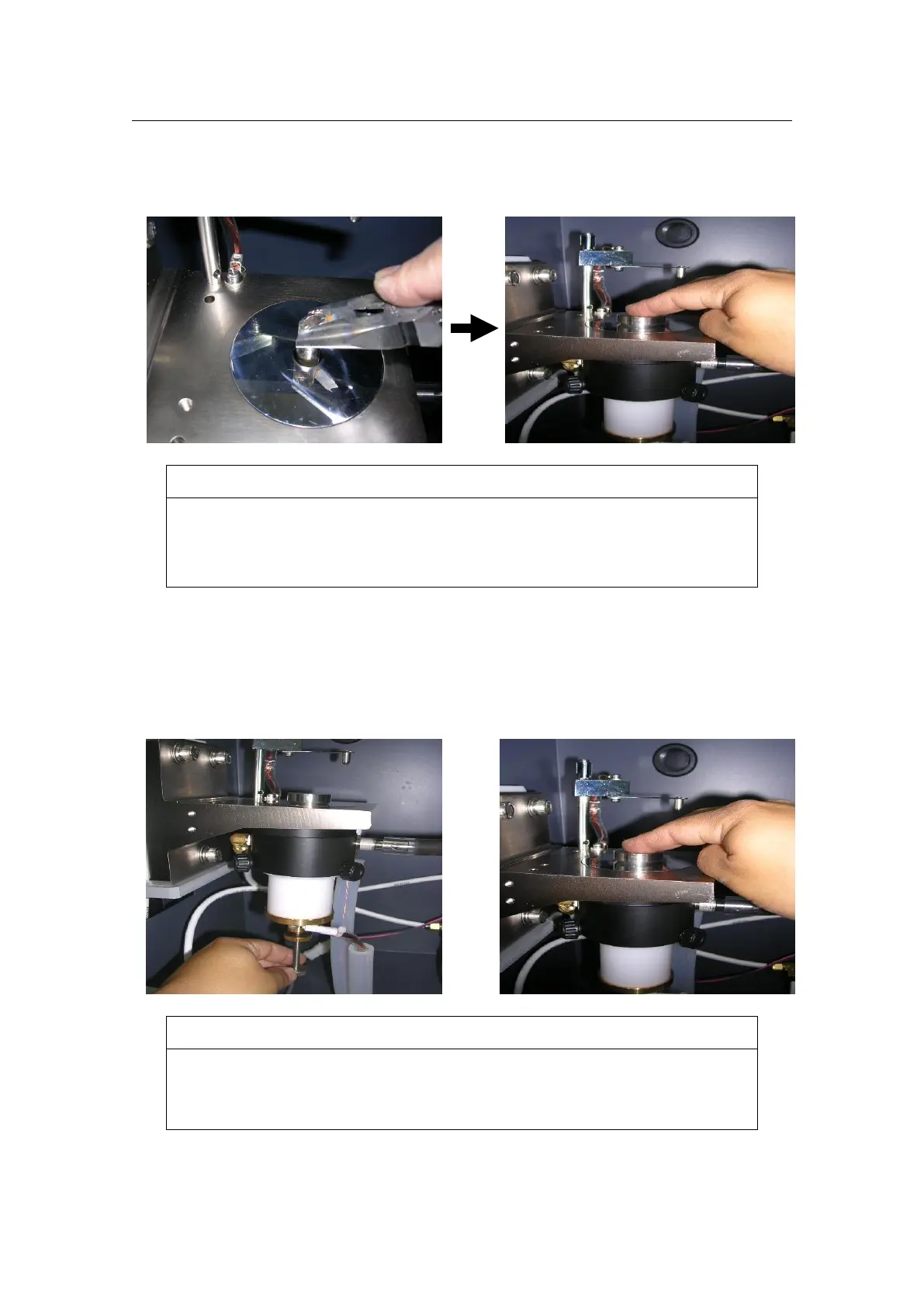

22 Insert the electrode into the holder using the electrode removal tool and press in the
electrode using the gap gauge.
Note
Oil has been applied to the gap gauge to prevent rust generation.
Be sure to wipe the oil off before use.
23 With the gap gauge placed on the
spark stand, tighten the adjusting bolt
gradually until the tip of the electrode
contacts the gap gauge.
24 Press down the gap gauge and confirm
that it is not lifted by the electrode.
Note
Be sure to adjust the gap in a direction that the electrode moves
upward.
